Osogbo, Osun State, Nigeria, located at 7.7643°N, 4.5679°E, presents a promising location for solar PV energy generation. Situated in the tropics, this area benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Potential

The solar energy potential in Osogbo is remarkably stable across all meteorological seasons. Spring sees the highest output at 5.53 kWh/day per kW of installed solar, followed closely by winter at 5.33 kWh/day. Autumn produces 5.21 kWh/day, while summer, despite being slightly lower, still generates a respectable 4.42 kWh/day.

This consistency in solar output throughout the year makes Osogbo an ideal location for solar PV installations. The relatively small variation between seasons ensures a reliable energy supply, reducing the need for extensive energy storage solutions or supplementary power sources.

Optimal Panel Tilt

For fixed panel installations in Osogbo, Osun State, the ideal tilt angle to maximize year-round solar production is 8 degrees South. This slight tilt helps optimize the panels' exposure to sunlight throughout the year, accounting for the location's proximity to the equator and the Earth's elliptical orbit.

Environmental Considerations

While Osogbo's location is generally favorable for solar energy production, there are some environmental factors to consider:

• Dust and particulate matter: During the dry season, increased dust in the air can accumulate on solar panels, reducing their efficiency.
• Heavy rainfall: The wet season can bring intense rainstorms, potentially affecting panel performance temporarily.

To mitigate these issues, regular cleaning of solar panels is essential, especially during the dry season. Installing panels at the recommended tilt angle can also help with natural cleaning during rainfalls. Additionally, using high-quality, weather-resistant panels and mounting systems can enhance durability and maintain efficiency in varying weather conditions.

Overall, Osogbo's consistent sunlight and stable solar output across seasons make it an excellent location for solar PV energy generation, with only minor environmental challenges that can be effectively managed through proper installation and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 50 locations across Nigeria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Nigeria by location

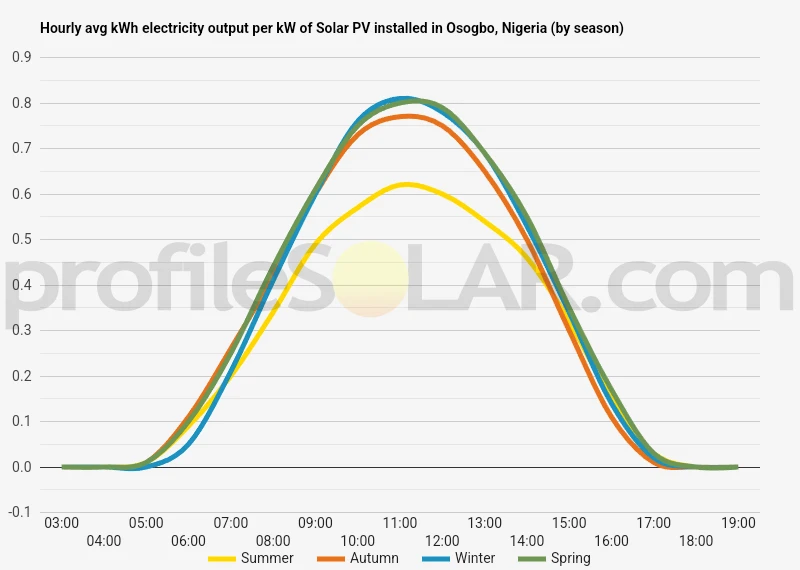

Solar output per kW of installed solar PV by season in Osogbo

Seasonal solar PV output for Latitude: 7.7643, Longitude: 4.5679 (Osogbo, Nigeria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° South in Osogbo, Nigeria

To maximize your solar PV system's energy output in Osogbo, Nigeria (Lat/Long 7.7643, 4.5679) throughout the year, you should tilt your panels at an angle of 8° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Osogbo, Nigeria

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Osogbo, Nigeria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	14° South in Autumn	24° South in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Osogbo, Nigeria

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Osogbo, Nigeria.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Osogbo, Nigeria

The topography around Osogbo, Nigeria, is characterized by gently rolling terrain with scattered hills and valleys. The city is situated in the southwestern part of Nigeria, in a region known for its lush vegetation and tropical climate. The landscape is primarily composed of lowlands and plains, with elevations generally ranging from 250 to 350 meters above sea level. The area surrounding Osogbo features a mix of dense forests, agricultural lands, and urban development. The Osun River, a significant waterway in the region, flows through the city and its environs, creating a network of smaller streams and tributaries that contribute to the area's varied topography. This river system has played a crucial role in shaping the local landscape over time, carving out shallow valleys and creating fertile floodplains. To the north and east of Osogbo, the terrain becomes slightly more elevated, with occasional rocky outcrops and small hills dotting the landscape. These areas provide subtle variations in the otherwise relatively flat topography. The southern and western parts of the region tend to be flatter, with expansive plains that stretch towards the coast.

Suitable Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Osogbo, several factors come into play. The most suitable areas would typically be those with ample sunlight exposure, minimal shading, and relatively flat terrain to reduce installation costs and maximize efficiency. The plains to the south and west of Osogbo present promising opportunities for solar PV development. These areas offer vast, open spaces with fewer obstructions, allowing for optimal sun exposure throughout the day. The flatter terrain in these regions would also simplify the construction and maintenance of large solar arrays. Additionally, some of the gently sloping areas to the north and east of the city could be suitable for solar PV installations. While these locations may require some minor land preparation, they often benefit from slightly higher elevations, which can reduce the risk of flooding and provide good air circulation for the solar panels. It's important to note that any large-scale solar project would need to balance energy production potential with environmental and agricultural considerations. Areas of dense forest or prime agricultural land may not be ideal choices, as clearing such land could have negative ecological impacts. Instead, focus should be placed on identifying underutilized or marginal lands that can be repurposed for solar energy production without significant environmental trade-offs. Ultimately, detailed site surveys and environmental impact assessments would be necessary to determine the most appropriate locations for large-scale solar PV installations in the Osogbo region. These studies would take into account not only the topography but also factors such as proximity to existing power infrastructure, local climate patterns, and socio-economic considerations.
