Solar PV Analysis of Uyo, Nigeria
The location at Uyo, Akwa Ibom State, Nigeria is quite good for generating energy using solar panels throughout the year. This is because it's located in the Tropics where sunlight is consistent for most of the year. The amount of electricity that can be produced from each kilowatt (kW) of installed solar varies slightly with each season but remains relatively high all year round: 4.54 kWh/day in summer, 4.81 kWh/day in autumn, 5.49 kWh/day in winter and 5.23 kWh/day in spring.
The best times to generate solar power at this location are during winter and spring when output per kW is highest - over 5kWh per day - although even during summer and autumn, output remains strong.
For a fixed panel installation at this location, tilting the panels at an angle of six degrees towards the South will maximize total yearly production from your solar PV system.
However, there might be some local factors that could affect solar production here such as heavy rainfall or dust storms which are common during certain seasons or periods known locally as Harmattan winds which carry fine dust particles reducing visibility and potentially covering solar panels thereby reducing their effectiveness.
To mitigate these challenges you can consider installing a tracking system that adjusts the angle of your panels throughout the day to follow the sun’s path thus maximizing exposure to sunlight even on cloudy days; regular cleaning schedule especially during dusty periods; use anti-reflective coating on your panels to improve light absorption; install durable weather-resistant equipment suitable for tropical climate conditions; ensure proper drainage around installation site to prevent water pooling which could damage infrastructure or reduce efficiency due to reflection away from panels.
In conclusion, Uyo offers very favorable conditions for efficient generation of electricity through solar power all year round with minor seasonal variations and manageable environmental challenges.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 50 locations across Nigeria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Nigeria by location

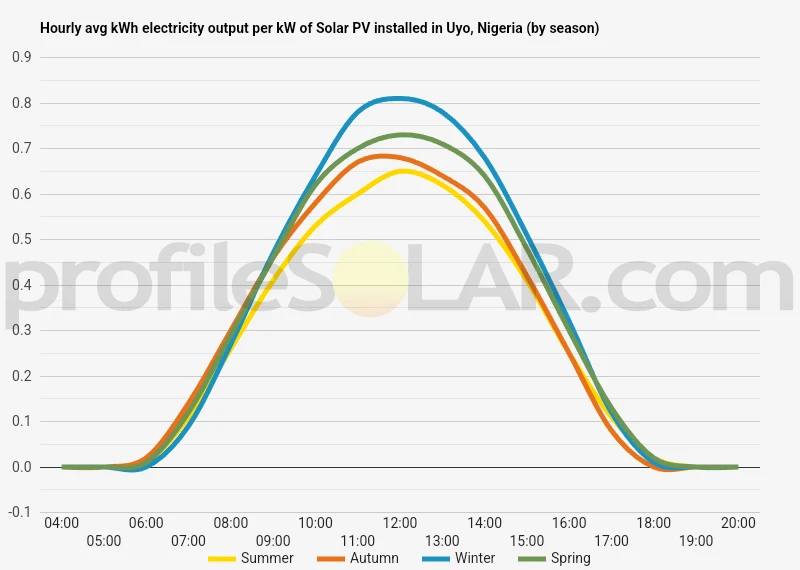

Solar output per kW of installed solar PV by season in Uyo
Seasonal solar PV output for Latitude: 5.048, Longitude: 7.9332 (Uyo, Nigeria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 6° South in Uyo, Nigeria
To maximize your solar PV system's energy output in Uyo, Nigeria (Lat/Long 5.048, 7.9332) throughout the year, you should tilt your panels at an angle of 6° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Uyo, Nigeria
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Uyo, Nigeria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 11° North in Summer | 12° South in Autumn | 21° South in Winter | 1° North in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Uyo, Nigeria
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Uyo, Nigeria.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Uyo, Nigeria
Uyo, Nigeria is located in the tropical rainforest zone of southern Nigeria. It is relatively flat with an average elevation of about 70 meters above sea level. The area has a lot of lush vegetation and receives substantial rainfall throughout the year.
For large-scale solar PV installations, areas that are flat and receive high amounts of sunlight would be most suitable. In Uyo's case, open spaces outside the city center or deforested areas could be potential sites for such installations. However, due to the heavy rainfall and cloud cover common in this region, it may not be as ideal for solar power generation compared to more arid regions.
It's also important to consider infrastructure access (like roads for transportation) and proximity to power grid connections when siting large scale solar projects. Therefore, rural or semi-urban areas around Uyo with good road networks could also be considered.
Lastly, actual suitability would need further on-the-ground assessment including geotechnical studies as well as social-environmental impact assessments before deciding on a specific location for a large-scale solar PV project.
