Warri, Delta, Nigeria, located at latitude 5.5111 and longitude 5.7442, offers a promising environment for solar energy generation throughout the year. Situated in the tropics, this location benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season cycles.

The solar energy potential in Warri is remarkably stable across the year, with slight variations between seasons. Winter and spring show the highest productivity, both yielding 5.11 kWh per day for each kilowatt of installed solar capacity. Autumn follows closely with 4.73 kWh/day, while summer produces a still-respectable 4.24 kWh/day.

Optimal Solar Panel Installation

For fixed solar panel installations in Warri, Delta, the ideal tilt angle to maximize year-round energy production is 6 degrees facing south. This slight tilt helps optimize sunlight capture throughout the year, accounting for the Earth's elliptical orbit and Warri's proximity to the equator.

Environmental Considerations

While Warri's location is generally favorable for solar energy production, there are some environmental factors to consider:

1. High humidity and rainfall during the wet season (May to October) may slightly reduce panel efficiency and require more frequent cleaning.
2. Dust accumulation during the dry season (November to April) can also impact panel performance.

To mitigate these issues, regular panel cleaning should be incorporated into maintenance routines. Additionally, installing panels at the recommended tilt angle will help with natural cleaning during rainfall and reduce dust accumulation.

Overall, Warri's consistent sunlight throughout the year makes it an excellent location for solar energy generation, with only minor seasonal variations in output. With proper installation and maintenance, solar PV systems in this area can provide a reliable and sustainable energy source year-round.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 50 locations across Nigeria. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Nigeria by location

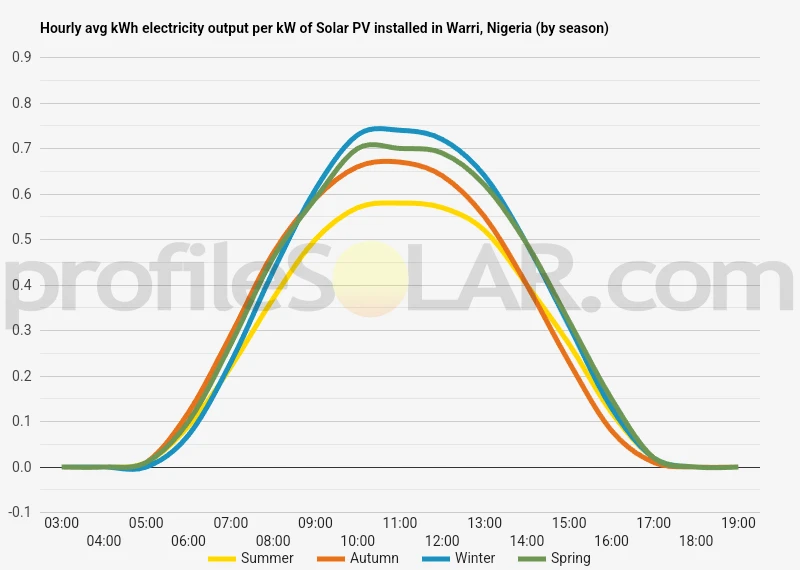

Solar output per kW of installed solar PV by season in Warri

Seasonal solar PV output for Latitude: 5.5111, Longitude: 5.7442 (Warri, Nigeria), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 4.24kWh/day in Summer.

Average 4.73kWh/day in Autumn.

Average 5.11kWh/day in Winter.

Average 5.11kWh/day in Spring.

Ideally tilt fixed solar panels 6° South in Warri, Nigeria

To maximize your solar PV system's energy output in Warri, Nigeria (Lat/Long 5.5111, 5.7442) throughout the year, you should tilt your panels at an angle of 6° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 5.5111, Longitude: 5.7442, the ideal angle to tilt panels is 6° South

Seasonally adjusted solar panel tilt angles for Warri, Nigeria

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Warri, Nigeria. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Warri, Nigeria

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Warri, Nigeria.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Warri, Nigeria

The area around Warri, Nigeria, is characterized by a relatively flat, low-lying terrain typical of the Niger Delta region. This coastal area is predominantly composed of wetlands, swamps, and mangrove forests interspersed with numerous creeks and rivers. The landscape is generally flat with minimal elevation changes, rarely exceeding 10 meters above sea level.

The topography is heavily influenced by the intricate network of waterways that crisscross the region, including the Warri River and its tributaries. These water bodies have shaped the land over time, creating a mosaic of small islands, sandbars, and mudflats. The soil in this area is typically alluvial, consisting of sediments deposited by rivers and streams.

Despite the prevalence of wetlands, there are some slightly elevated areas of dry land, particularly to the north and northeast of Warri. These areas, while still relatively flat, offer a bit more relief from the swampy conditions found closer to the coast.

Regarding large-scale solar PV installations, the most suitable areas would likely be found in the drier, more elevated regions to the north and northeast of Warri. These areas offer several advantages for solar energy development:

1. They are less prone to flooding, which is a significant concern in the low-lying wetland areas.
2. They typically have better drainage, reducing the risk of water damage to solar equipment.
3. The slightly higher elevation may provide better exposure to sunlight, potentially increasing the efficiency of solar panels.
4. These areas are often less ecologically sensitive compared to the mangrove forests and wetlands closer to the coast.

However, it's important to note that large-scale solar PV installations in this region would still face challenges. The high humidity and frequent cloud cover characteristic of the Niger Delta climate could potentially reduce solar efficiency. Additionally, the relatively flat terrain means that careful site selection would be necessary to minimize shading from vegetation and maximize sun exposure.

Any development would need to consider environmental impacts, land use rights, and the region's complex socio-economic factors. Proper environmental and social impact assessments would be crucial before undertaking any large-scale solar projects in this area.
