Abdul Hakim, Pakistan, located in the Northern Sub Tropics, offers a variable but generally favorable environment for solar PV energy generation throughout the year. The location experiences significant seasonal variations in solar energy production that potential solar installers should consider.

Seasonal Solar Production

Solar panels in Abdul Hakim demonstrate strong performance during spring and summer months, with daily electricity generation reaching 6.67kWh per kW of installed capacity in spring and 6.53kWh in summer. These seasons represent peak production periods when the sun's position is more favorable and days provide optimal solar exposure.

Output decreases considerably during autumn to 4.87kWh per day per kW of installed capacity. Winter experiences the lowest production at just 3.52kWh per day, which is approximately half the spring output. This seasonal pattern indicates that while Abdul Hakim can be considered a good location for solar energy overall, supplementary power sources might be necessary during winter months.

Optimal Panel Installation

For fixed solar panel installations in Abdul Hakim, the ideal tilt angle to maximize year-round energy production is 27 degrees facing South. This specific angle has been calculated to optimize solar capture throughout the year, accounting for the Earth's elliptical orbit and the site's latitude of approximately 30.5 degrees North.

Environmental Challenges

Several significant environmental factors at this location could impact solar energy production:

• Dust storms and high particulate matter in the air, common in Pakistan's Punjab region, can reduce panel efficiency by creating a layer of dust that blocks sunlight.
• Extreme summer temperatures, which can reach above 40°C in this region, may reduce panel efficiency as solar PV typically performs better at moderate temperatures.
• Monsoon season cloudiness and occasional haze can temporarily reduce solar radiation reaching the panels.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended:

• Install panels with regular cleaning systems or implement a maintenance schedule to remove dust accumulation, especially during dry seasons.
• Consider elevated mounting with adequate airflow beneath panels to mitigate efficiency losses from high temperatures.
• Use high-efficiency panels with better heat tolerance specifications, designed for hot climates.
• Install a slightly larger system than needed to compensate for the significant winter production drop.
• Consider microinverters or power optimizers to minimize the impact of partial shading from dust or clouds.

With proper installation and maintenance, Abdul Hakim's location can be effectively utilized for solar energy production, particularly taking advantage of the excellent spring and summer generation potential.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

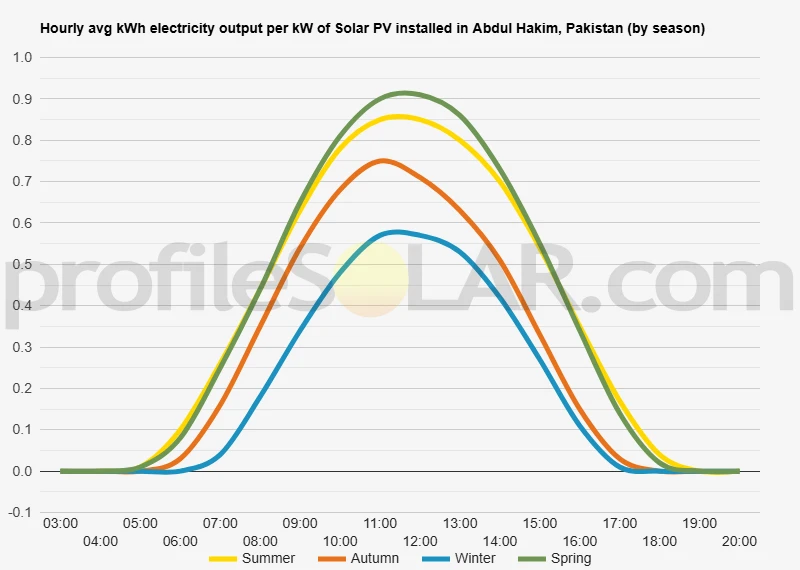

Solar output per kW of installed solar PV by season in Abdul Hakim

Seasonal solar PV output for Latitude: 30.5462, Longitude: 72.126 (Abdul Hakim, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Abdul Hakim, Pakistan

To maximize your solar PV system's energy output in Abdul Hakim, Pakistan (Lat/Long 30.5462, 72.126) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Abdul Hakim, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Abdul Hakim, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	36° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Abdul Hakim, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Abdul Hakim, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Abdul Hakim, Pakistan

The landscape surrounding Abdul Hakim, Pakistan reveals a predominantly flat terrain characteristic of Punjab's agricultural heartland. Located in the Khanewal District, this region forms part of the vast Indus River basin, with minimal variation in elevation across the immediate vicinity. The topography consists mainly of alluvial plains that have been deposited over millennia by the Indus River system, creating fertile soils that support extensive agriculture. Moving outward from Abdul Hakim, the terrain maintains its generally level character with only subtle undulations. The flatness of this landscape is occasionally interrupted by minor depressions and shallow watercourses that crisscross the region, many of which are seasonal in nature. These natural drainage channels help manage water during monsoon periods but remain dry during much of the year.

Soil Composition and Surface Features

The soil in this region primarily consists of alluvial deposits, featuring silt and clay mixtures that have excellent water retention properties - beneficial for farming but requiring consideration for construction projects. Surface vegetation varies seasonally but typically includes agricultural crops, scattered trees along field boundaries, and occasional patches of native grasses in uncultivated areas. The flat terrain experiences minimal erosion except during heavy rainfall events, contributing to the stability of the landscape. This stability is advantageous when considering large infrastructure projects that require minimal earthwork.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the areas extending to the west and southwest of Abdul Hakim present particularly favorable conditions. These zones combine several advantageous characteristics: consistently flat terrain that minimizes grading requirements, limited natural vegetation that would need clearing, and good accessibility via existing road networks. The southwestern plains, extending toward Kabirwala, offer expansive tracts of level ground with minimal competing land uses beyond seasonal agriculture. These areas would require minimal site preparation and provide excellent conditions for uniform solar panel arrays. Northern areas, while similarly flat, may have higher agricultural productivity and thus represent greater opportunity costs if converted to solar facilities. Eastern sectors occasionally feature more irrigation infrastructure that would complicate development.

Topographical Considerations for Solar Development

The minimal elevation changes throughout the region eliminate concerns about shadowing effects between rows of solar panels, allowing for optimal spacing and orientation of arrays. Drainage considerations should focus on the occasional seasonal water channels, though these are easily accommodated in site planning due to their predictable patterns. The open nature of the landscape does present consideration for dust management, as the flat terrain provides little natural barrier against wind-blown particulates. This would necessitate appropriate maintenance regimes for any solar installation. Ground stability is generally excellent throughout the region, with bearing capacity sufficient for standard solar mounting systems without requiring extensive foundation engineering. The consistent soil conditions also simplify trenching for electrical infrastructure. In conclusion, the remarkably flat topography surrounding Abdul Hakim presents few obstacles to large-scale solar development, with western and southwestern areas offering particularly suitable conditions due to their combination of level terrain, moderate current land use, and good accessibility.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
