Solar Energy Potential in Arifwala, Punjab, Pakistan

Arifwala, Punjab, Pakistan, located in the Northern Sub Tropics at coordinates 31.8228, 71.2021, presents a generally favorable location for solar PV energy generation throughout the year, with some seasonal variations. The region receives substantial sunlight that can be effectively harnessed for electricity production. The solar energy potential varies across seasons. Summer is the most productive period, with panels generating approximately 6.65kWh of electricity per day for each kilowatt of installed capacity. Spring follows closely behind with 6.56kWh/day per installed kilowatt, making these two seasons ideal for maximum solar energy production. Energy generation decreases during autumn, with outputs averaging 4.90kWh/day per kilowatt of installed capacity. Winter shows the lowest production at 3.79kWh/day per kilowatt, though this still represents usable energy generation potential. For fixed solar panel installations in Arifwala, Punjab, the ideal tilt angle to maximize year-round production is 28 degrees facing South. This specific angle has been calculated to optimize solar collection across all seasons based on Arifwala's latitude and solar irradiance patterns.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Arifwala. Dust and particulate matter are significant concerns in this region. The semi-arid climate combined with agricultural activities contributes to airborne dust that can settle on panels and reduce efficiency by up to 30% if not addressed. Seasonal temperature extremes present another challenge. Summer temperatures frequently exceed 40°C (104°F), which can reduce panel efficiency as solar cells typically perform less efficiently at very high temperatures. Conversely, winter fog and occasional haze can temporarily diminish solar radiation reaching the panels.

Preventative Measures for Optimal Production

To mitigate these challenges, several preventative measures can be implemented during solar installation:

• Install panels with sufficient elevation from the ground to reduce dust accumulation
• Implement regular cleaning schedules, particularly during dry seasons
• Consider automated cleaning systems for larger installations
• Ensure adequate ventilation behind panels to reduce temperature-related efficiency losses
• Use panels with lower temperature coefficients that perform better in hot conditions

Additionally, installing a monitoring system can help track performance and identify when cleaning or maintenance is needed. Some installations in similar regions have successfully employed hydrophobic coatings on panels to reduce dust adhesion and make cleaning more effective. With proper installation techniques and regular maintenance, solar PV systems in Arifwala can achieve close to their theoretical production potential across all seasons, making this location a viable option for solar energy development.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

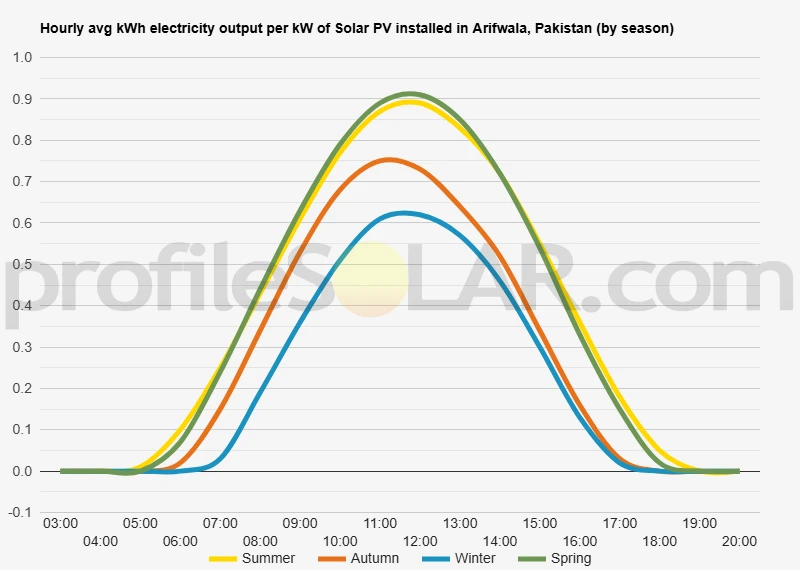

Solar output per kW of installed solar PV by season in Arifwala

Seasonal solar PV output for Latitude: 31.8228, Longitude: 71.2021 (Arifwala, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Arifwala, Pakistan

To maximize your solar PV system's energy output in Arifwala, Pakistan (Lat/Long 31.8228, 71.2021) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Arifwala, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Arifwala, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	47° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Arifwala, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Arifwala, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Arifwala, Pakistan

The terrain surrounding Arifwala, Pakistan presents a predominantly flat landscape characteristic of the Punjab plains. Located in Punjab province, Arifwala sits within the vast Indus Basin, which forms part of the fertile agricultural heartland of Pakistan. The topography in this region is marked by alluvial plains with minimal elevation changes, typically ranging between 150-170 meters above sea level. This flat terrain extends for considerable distances in all directions, creating an open landscape with few natural obstacles. The soil composition around Arifwala consists primarily of alluvial deposits carried and distributed by the historic flooding patterns of the Indus River and its tributaries over millennia. These deposits have created deep, fertile soils that support extensive agricultural activity throughout the region. Small irrigation channels, both natural and man-made, crisscross the landscape, bringing water to the agricultural fields that dominate the area.

Solar PV Potential Areas

The flat topography surrounding Arifwala creates numerous opportunities for large-scale solar photovoltaic installations. The areas most suitable for solar PV development include the non-irrigated lands to the southwest and southeast of Arifwala. These regions feature minimal shading concerns due to the absence of significant hills or mountains, providing unobstructed exposure to sunlight throughout the day. Specifically, the semi-arid lands extending toward Bahawalnagar district in the southeast direction offer promising conditions for solar development. These areas experience less agricultural intensity and have lower population density compared to the immediate surroundings of Arifwala, minimizing land-use conflicts. The stable, non-flooding terrain in these areas provides a secure foundation for solar infrastructure with minimal site preparation requirements. The western approaches toward Pakpattan district also present viable options for solar development, particularly in areas where the soil is less fertile for agricultural purposes. These locations benefit from the region's general climate characteristics while utilizing land that has lower agricultural productivity. It's worth noting that while the entire region around Arifwala experiences substantial solar radiation throughout the year, the selection of specific sites would need to consider proximity to existing electrical infrastructure, road access for construction and maintenance, and distance from dense population centers to minimize impact while facilitating grid connection.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
