Solar PV Analysis of Bannu, Pakistan
Bannu, Khyber Pakhtunkhwa, Pakistan, located at latitude 32.9846 and longitude 70.6011, offers a promising location for solar PV energy generation. This northern subtropical region experiences varying levels of solar output throughout the year, with significant potential for renewable energy production.
Seasonal Solar Performance
Solar energy generation in Bannu fluctuates across seasons. Summer sees the highest output at 7.02 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 6.48 kWh/day, while autumn produces 5.22 kWh/day. Winter experiences the lowest output at 4.17 kWh/day, but still maintains a respectable level of energy production.
Optimal Times for Solar Generation
The most ideal periods for solar energy production in Bannu are during summer and spring. These seasons offer longer daylight hours and more direct sunlight, maximizing the potential of solar PV systems. However, the region's solar potential remains relatively strong year-round, even during the less productive autumn and winter months.
Panel Installation Considerations
For fixed panel installations in Bannu, Khyber Pakhtunkhwa, the optimal tilt angle to maximize year-round solar production is 30 degrees facing south. This angle ensures the panels capture the most sunlight throughout the year, accounting for the Earth's tilt and orbit.
Environmental and Weather Factors
While Bannu generally offers favorable conditions for solar energy production, there are some factors to consider:
- Dust storms: The region can experience dust storms, which may temporarily reduce panel efficiency.
- High temperatures: Summer heat can slightly decrease solar panel efficiency.
To mitigate these issues, regular panel cleaning and maintenance should be implemented. Additionally, installing panels with a slight tilt can help prevent dust accumulation. Choosing high-quality, heat-resistant panels can also help maintain efficiency during hot summer months.
Overall, Bannu presents a highly suitable location for solar PV energy generation, with strong potential throughout the year and particularly excellent conditions during summer and spring.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Pakistan by location

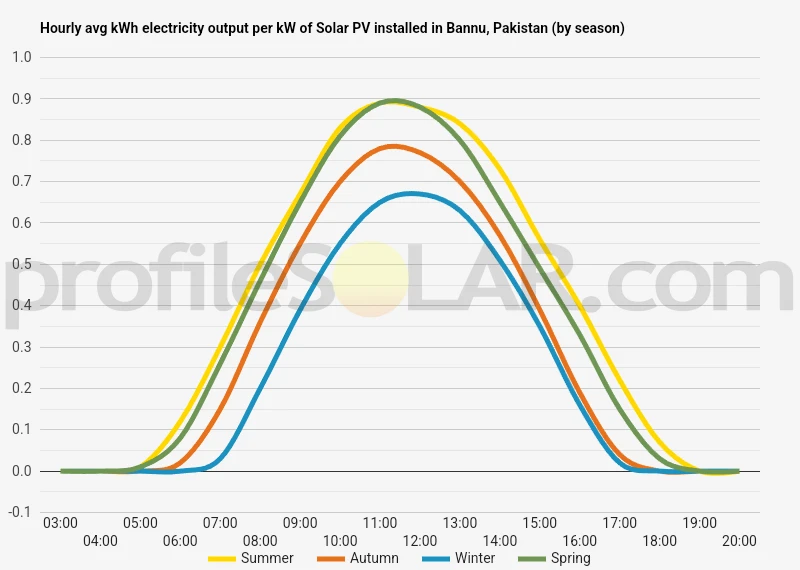

Solar output per kW of installed solar PV by season in Bannu
Seasonal solar PV output for Latitude: 32.9846, Longitude: 70.6011 (Bannu, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 30° South in Bannu, Pakistan
To maximize your solar PV system's energy output in Bannu, Pakistan (Lat/Long 32.9846, 70.6011) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Bannu, Pakistan
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bannu, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 17° South in Summer | 38° South in Autumn | 48° South in Winter | 26° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Bannu, Pakistan
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bannu, Pakistan.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Bannu, Pakistan
The topography around Bannu, Pakistan is characterized by a mix of flat plains and rolling hills. Bannu itself is situated in a basin-like area known as the Bannu Plain, which is surrounded by higher terrain on multiple sides. To the north and west, the landscape gradually rises towards the rugged mountains of North Waziristan. These mountains are part of the larger Hindu Kush range, which extends into Afghanistan.
To the east of Bannu, the terrain is generally flatter, transitioning into the Indus River Valley. This area consists of agricultural lands and gentle slopes. The southern part of the region features low-lying hills and undulating terrain, which gradually increases in elevation as it approaches the Sulaiman Range.
The Kurram River flows through the Bannu region, creating a fertile valley that has been important for agriculture throughout history. This river valley provides a contrast to the drier, more rugged terrain in the surrounding areas.
For large-scale solar PV installations, the areas most suited would likely be found to the east and southeast of Bannu. These regions offer several advantages for solar energy production:
- Flatter terrain: The relatively level ground in these areas would make construction and maintenance of solar farms easier and more cost-effective.
- Open spaces: There are expansive, unobstructed areas that receive ample sunlight throughout the day.
- Lower agricultural value: Some of these lands may be less suitable for farming, making them available for alternative uses like solar energy production.
- Proximity to infrastructure: These areas are closer to existing roads and power transmission lines, which would facilitate the distribution of generated electricity.
It's worth noting that while the mountainous regions to the north and west receive plenty of sunlight, their rugged terrain and limited accessibility make them less practical for large-scale solar installations. The flatter, more accessible areas to the east and southeast of Bannu present a better balance of favorable conditions for solar PV development.
Pakistan solar PV Stats as a country
Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Pakistan?
Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.
Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
