Chichawatni, Punjab, Pakistan, located in the Northern Sub Tropics at coordinates 30.5316, 72.6985, offers a generally favorable environment for solar PV energy generation throughout the year. The location's potential for solar power production varies across seasons, presenting both opportunities and challenges.

Seasonal Solar Performance

Solar energy output in Chichawatni fluctuates significantly across the year. Spring and summer are the most productive seasons, with daily outputs of 6.68kWh and 6.51kWh per kW of installed solar capacity, respectively. These high yields make the period from March to August ideal for solar energy generation. Autumn sees a moderate decrease in production, averaging 4.92kWh per day for each kW installed. While less productive than spring and summer, this season still offers substantial solar potential. Winter presents the greatest challenge, with daily output dropping to 3.58kWh per kW. Despite this reduction, the region still maintains a reasonable level of solar energy production even during its least productive months.

Optimal Panel Installation

To maximize year-round solar energy production in Chichawatni, Punjab, fixed solar panels should be tilted at an angle of 27 degrees facing south. This optimal angle has been calculated considering the location's latitude, daily solar elevation angles, and weighted by NASA's solar irradiance data.

Environmental Considerations

While Chichawatni's climate is generally conducive to solar energy production, there are some environmental factors to consider: 1. Dust and air pollution: The region can experience dust storms and elevated levels of air pollution, which may accumulate on solar panels and reduce their efficiency. 2. Extreme temperatures: Summer temperatures in Chichawatni can soar, potentially affecting the performance of solar panels. To mitigate these issues, regular cleaning and maintenance of solar panels is crucial. Installing dust-resistant panels and implementing an efficient cleaning schedule can help maintain optimal performance. Additionally, choosing high-quality panels designed to perform well in high temperatures can help mitigate the impact of extreme heat. In conclusion, Chichawatni offers a promising location for solar PV energy generation, with strong potential throughout most of the year. While winter months see reduced output, the overall yearly performance remains favorable. By addressing environmental challenges through proper installation and maintenance practices, solar energy systems in this area can achieve consistent and efficient power generation.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

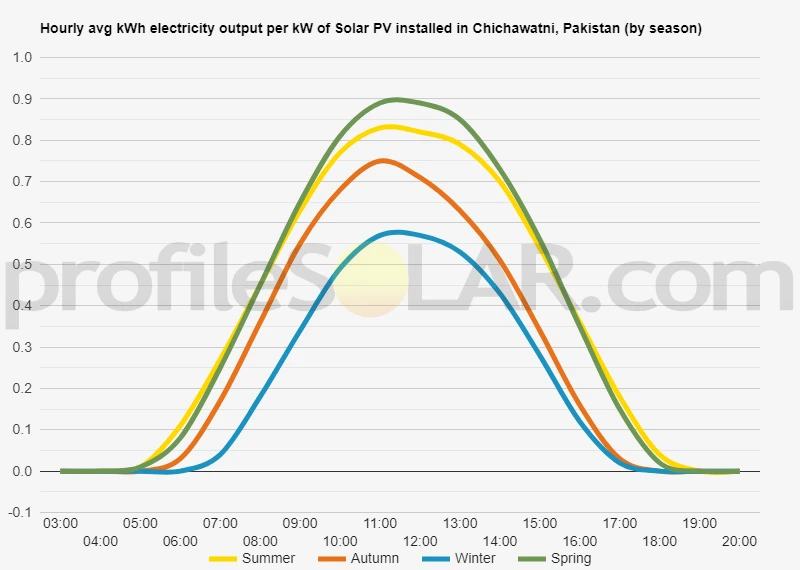

Solar output per kW of installed solar PV by season in Chichawatni

Seasonal solar PV output for Latitude: 30.5316, Longitude: 72.6985 (Chichawatni, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Chichawatni, Pakistan

To maximize your solar PV system's energy output in Chichawatni, Pakistan (Lat/Long 30.5316, 72.6985) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chichawatni, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chichawatni, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	36° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chichawatni, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chichawatni, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chichawatni, Pakistan

The area around Chichawatni, Pakistan, is predominantly characterized by flat, low-lying plains. This region is part of the vast Punjab Plain, which is known for its relatively uniform topography. The landscape is generally level, with only slight variations in elevation across the area.

The terrain surrounding Chichawatni is primarily agricultural land, featuring a patchwork of fields and irrigation channels. The Ravi River flows to the north of the city, and its floodplain contributes to the overall flatness of the region. There are no significant hills or mountains in the immediate vicinity of Chichawatni.

This flat topography is typical of much of central Punjab, extending for many kilometers in all directions. The lack of major geographical features results in a landscape that is largely unobstructed and open, with few natural barriers or steep slopes.

Regarding areas suitable for large-scale solar PV (photovoltaic) installations, the flat terrain around Chichawatni offers several advantages. The open, level land provides ample space for solar panel arrays without the need for extensive land preparation or terracing. Areas to the south and west of Chichawatni would be particularly well-suited for solar projects due to their slightly higher elevation and reduced risk of flooding compared to areas closer to the Ravi River.

The rural zones surrounding Chichawatni, especially those not currently under intensive cultivation, could be ideal locations for solar farms. These areas typically receive abundant sunlight throughout the year, a crucial factor for solar energy production. However, it's important to note that while the topography is favorable, other factors such as grid connectivity, land ownership, and local regulations would also need to be considered when planning large-scale solar installations in this region.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
