Chitral, Khyber Pakhtunkhwa, a city in northern Pakistan, presents both opportunities and challenges for solar energy production. Located at 35.9245°N latitude and 71.5231°E longitude, this Northern Temperate Zone site experiences significant seasonal variations in solar energy potential.

Seasonal Solar Performance

Solar panel efficiency in Chitral fluctuates throughout the year. Summer stands out as the most productive season, with an impressive 7.79 kWh of electricity generated daily per kilowatt of installed solar capacity. Spring follows as the second-best season, yielding 6.14 kWh/day. Autumn sees a moderate decline to 5.06 kWh/day, while winter experiences the lowest output at 3.60 kWh/day.

These figures indicate that Chitral's location is reasonably favorable for solar energy production, especially during the warmer months. The substantial difference between summer and winter outputs, however, highlights the need for careful planning to ensure year-round energy sufficiency.

Optimal Panel Positioning

To maximize year-round solar energy production in Chitral, Khyber Pakhtunkhwa, fixed solar panels should be tilted at a 31-degree angle facing south. This optimal angle takes into account the city's latitude and seasonal sun positions, ensuring the best possible energy capture throughout the year.

Environmental Considerations

While Chitral's location offers good potential for solar energy, there are some environmental factors to consider:

1. Mountainous terrain: Chitral is situated in a valley surrounded by high mountains, which may cause shading issues during certain parts of the day, especially in winter when the sun is lower in the sky.
2. Dust and air pollution: The region can experience dust storms and air pollution, which may reduce solar panel efficiency if not properly maintained.

Preventative Measures

To mitigate these challenges and ensure optimal solar energy production, consider the following measures:

• Conduct a thorough site assessment to identify potential shading issues and choose the best location for panel installation.
• Implement a regular cleaning schedule for the solar panels to remove dust and debris.
• Consider using microinverters or power optimizers to minimize the impact of partial shading on overall system performance.
• Install a monitoring system to track performance and quickly identify any issues affecting energy production.

By implementing these strategies, Chitral's residents can harness the significant solar potential of their location while addressing the challenges posed by the local environment.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

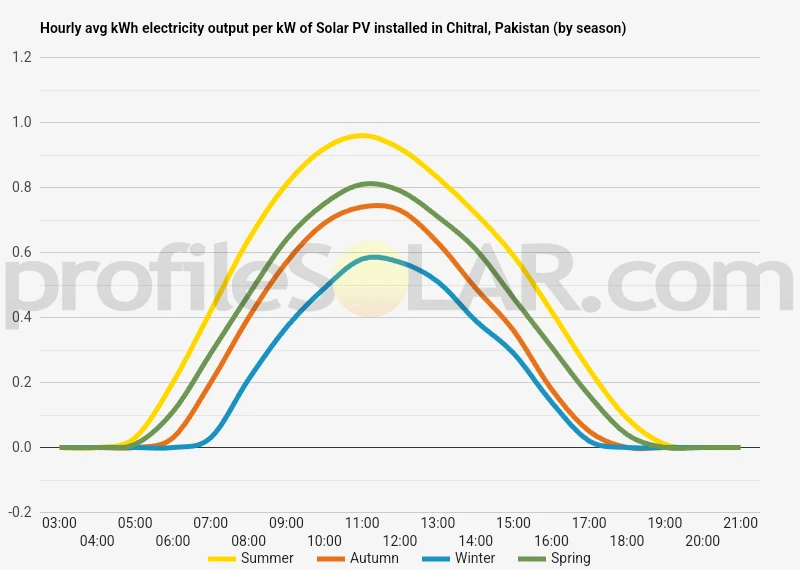

Solar output per kW of installed solar PV by season in Chitral

Seasonal solar PV output for Latitude: 35.9245, Longitude: 71.5231 (Chitral, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in Chitral, Pakistan

To maximize your solar PV system's energy output in Chitral, Pakistan (Lat/Long 35.9245, 71.5231) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chitral, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chitral, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	40° South in Autumn	51° South in Winter	28° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chitral, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chitral, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chitral, Pakistan

Chitral, located in northern Pakistan, is surrounded by a dramatic and varied topography that reflects its position in the Hindu Kush mountain range. The landscape is characterized by towering peaks, deep valleys, and winding rivers, creating a rugged and challenging terrain. The town of Chitral itself sits in a relatively flat valley at an elevation of around 1,500 meters above sea level. This valley is flanked on all sides by steep mountain slopes that rise dramatically, with some nearby peaks reaching heights of over 7,000 meters. The Chitral River, fed by glacial meltwater, cuts through the valley, carving a path through the rocky landscape. As you move away from the central valley, the terrain becomes increasingly mountainous and difficult to traverse. Narrow gorges and steep cliffs are common features, with sparse vegetation clinging to the rocky slopes. At higher elevations, permanent snow and ice cover the mountaintops, creating a stark contrast to the more temperate valley below.

Potential for Solar PV Development

When considering areas nearby that might be suitable for large-scale solar PV installations, several factors come into play. The mountainous terrain presents challenges, but there are also opportunities: The valley floors and gentler slopes near Chitral town offer the most promise for solar PV development. These areas have more level ground, which is crucial for installing large arrays of solar panels. They also tend to have better access to existing infrastructure, making construction and maintenance more feasible. South-facing slopes in the surrounding mountains could potentially be utilized for solar installations, as they receive more direct sunlight throughout the day. However, the steepness of these slopes would present significant engineering challenges and increased costs. It's important to note that while the region receives ample sunlight, the high-altitude environment can pose challenges. Extreme temperature variations, potential for heavy snowfall in winter, and the risk of landslides or flooding must all be taken into account when planning large-scale solar projects in this area. Areas to the south of Chitral, where the terrain becomes slightly less rugged, might offer more extensive flat or gently sloping land suitable for solar farms. However, these locations would be further from the town center and may require significant infrastructure development. In conclusion, while the topography around Chitral presents challenges for large-scale solar PV development, there are potential sites, particularly in the valley areas and on gentler slopes, that could be suitable with careful planning and engineering. The unique landscape of the region requires a tailored approach to harness its solar potential effectively.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
