Dera Ismail Khan, Khyber Pakhtunkhwa, Pakistan, located at 31.8313° N, 70.8901° E, offers a promising environment for solar PV energy generation throughout the year. This location in the Northern Sub Tropics experiences varying levels of solar potential across different seasons.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 6.60 kWh of electricity output per day for each kW of installed solar capacity. Spring follows closely behind, generating 6.40 kWh/day. These seasons present ideal conditions for maximizing solar energy production.

Autumn sees a moderate decrease in output, yielding 4.90 kWh/day. Winter experiences the lowest production at 3.92 kWh/day, which is still a respectable amount considering the shorter days and lower sun angle during this season.

Optimal Panel Tilt

For fixed panel installations in Dera Ismail Khan, Khyber Pakhtunkhwa, the ideal tilt angle to maximize year-round solar production is 29 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for seasonal variations in the sun's position.

Environmental Considerations

While Dera Ismail Khan generally offers favorable conditions for solar energy production, there are some environmental factors to consider:

• Dust and sandstorms: The region's arid climate can lead to dust accumulation on panels, potentially reducing efficiency.
• High temperatures: Summer heat can slightly decrease panel efficiency, although the overall output remains high.

Preventative Measures

To mitigate these challenges and ensure optimal energy production, consider implementing the following measures:

• Regular cleaning: Establish a routine cleaning schedule to remove dust and debris from panels.
• Temperature-resistant panels: Choose high-quality panels designed to perform well in hot climates.
• Proper ventilation: Ensure adequate airflow around the panels to help dissipate heat.

Overall, Dera Ismail Khan presents a highly suitable location for solar PV installations, with strong potential for energy generation throughout the year, particularly during the summer and spring months.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

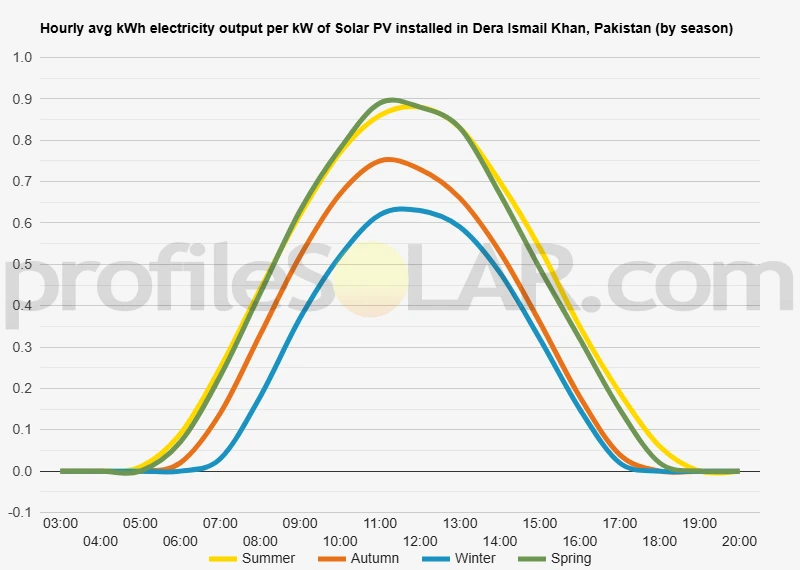

Solar output per kW of installed solar PV by season in Dera Ismail Khan

Seasonal solar PV output for Latitude: 31.8313, Longitude: 70.8901 (Dera Ismail Khan, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Dera Ismail Khan, Pakistan

To maximize your solar PV system's energy output in Dera Ismail Khan, Pakistan (Lat/Long 31.8313, 70.8901) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Dera Ismail Khan, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Dera Ismail Khan, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	47° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Dera Ismail Khan, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Dera Ismail Khan, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Dera Ismail Khan, Pakistan

The topography around Dera Ismail Khan, Pakistan, is characterized by a diverse landscape that transitions from flat plains to more rugged terrain. The city itself is situated on the western bank of the Indus River, in a relatively flat area known as the Derajat. This region is part of the larger Indus River Valley, which features expansive alluvial plains created by centuries of sediment deposition from the river. To the west of Dera Ismail Khan, the terrain gradually becomes more elevated and undulating as it approaches the Sulaiman Mountains. These mountains form a natural barrier between the Derajat plains and the Balochistan Plateau. The foothills of the Sulaiman range begin approximately 30-40 kilometers west of the city, creating a picturesque backdrop to the otherwise flat landscape. To the east, across the Indus River, lies the Thal Desert, a vast expanse of sandy terrain that stretches for hundreds of kilometers. This area is characterized by its arid climate and sparse vegetation, typical of desert environments.

Suitability for Large-Scale Solar PV

When considering areas nearby Dera Ismail Khan for large-scale solar photovoltaic (PV) installations, several factors come into play. The most suitable locations would be those that combine favorable topography with high solar irradiance and minimal environmental impact. The flat plains surrounding Dera Ismail Khan, particularly to the east and southeast, offer ideal conditions for solar PV installations. These areas benefit from abundant sunlight throughout the year and have minimal shading from geographical features. The lack of significant elevation changes also simplifies construction and reduces costs associated with land preparation. The Thal Desert region, while further from the city, presents another excellent opportunity for solar development. Desert environments typically receive high levels of solar radiation and have few competing land uses, making them prime candidates for large-scale solar projects. However, developers would need to consider factors such as sand accumulation on panels and the logistics of transmitting power over longer distances. Areas to the immediate west of Dera Ismail Khan, before the terrain becomes too hilly, could also be suitable for solar PV installations. These locations would benefit from proximity to existing infrastructure while still offering relatively flat land. It's important to note that while the topography is favorable in many areas around Dera Ismail Khan, other factors such as land ownership, grid connectivity, and local regulations would also play crucial roles in determining the most suitable sites for large-scale solar PV projects. Additionally, environmental assessments would be necessary to ensure that such developments do not negatively impact local ecosystems or agricultural activities.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
