Solar PV Analysis of Gujranwala, Pakistan
Gujranwala, Punjab, Pakistan (latitude 32.2722, longitude 72.939) is a favorable location for solar power generation due to its consistent warm climate throughout the year and its position within the Northern Subtropics region. The average daily energy production per kilowatt of installed solar capacity in each season is as follows: 7.06 kWh in Summer, 5.22 kWh in Autumn, 4.00 kWh in Winter, and 6.71 kWh in Spring.
The higher energy production during Spring and Summer months can be attributed to longer daylight hours and increased temperatures compared to the shorter days and cooler temperatures observed during Autumn and Winter months.
There are no significant environmental or topographical factors that would impede solar power generation at this location; however, it is essential to ensure proper installation of solar panels at an ideal tilt angle of approximately 29 degrees facing south for optimal performance throughout the year.
To further enhance energy production efficiency, it's crucial to regularly maintain the panels by keeping them clean from dust or debris accumulation which could potentially reduce their output over time. Overall, Gujranwala's climatic conditions make it well-suited for reliable solar power generation all year round with proper installation and maintenance practices in place.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Pakistan by location

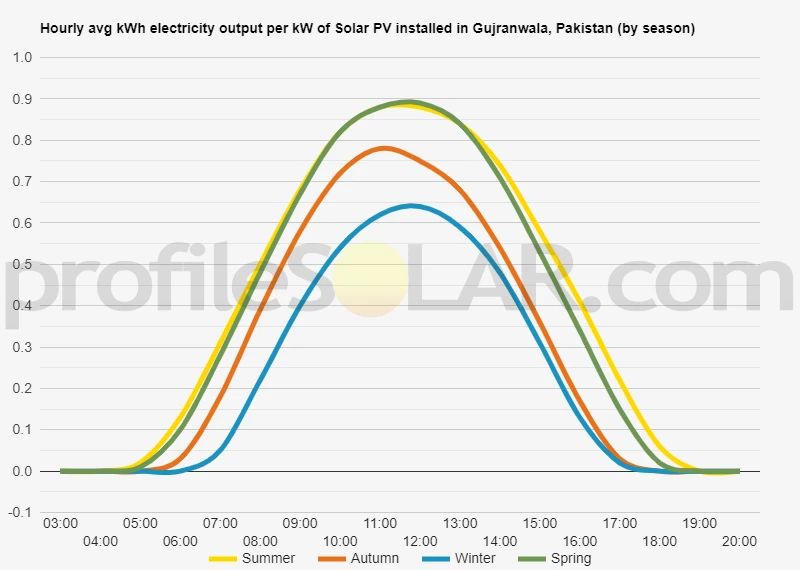

Solar output per kW of installed solar PV by season in Gujranwala
Seasonal solar PV output for Latitude: 32.2722, Longitude: 72.939 (Gujranwala, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 29° South in Gujranwala, Pakistan
To maximize your solar PV system's energy output in Gujranwala, Pakistan (Lat/Long 32.2722, 72.939) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Gujranwala, Pakistan
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gujranwala, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 16° South in Summer | 38° South in Autumn | 47° South in Winter | 25° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Gujranwala, Pakistan
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gujranwala, Pakistan.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Gujranwala, Pakistan
The topography of Gujranwala, Pakistan is characterized by flat terrain with some low hills and valleys in the surrounding area. The nearby areas that are most suited to large-scale solar PV include open fields, rooftops, and other flat surfaces that receive direct sunlight for most of the day. Additionally, any slopes facing southward will also be ideal due to their ability to capture more direct sunlight throughout the day.
Pakistan solar PV Stats as a country
Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Pakistan?
Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.
Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
