Haripur, Khyber Pakhtunkhwa, Pakistan, located in the Northern Sub Tropics at coordinates 33.9946°N, 72.9343°E, offers moderately good conditions for solar energy generation throughout the year, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location shows strong seasonal differences in solar energy production. Summer delivers the highest output at 7.14 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best period with 6.59 kWh per day per kW, offering excellent solar potential as well. Autumn production drops to 5.10 kWh per day per kW, which is still reasonable but noticeably lower than the warmer months. Winter presents the most challenging period, with output falling to just 3.81 kWh per day per kW - nearly half the summer production levels.

Optimal Installation Setup

For maximum year-round energy production, solar panels at this Haripur location should be installed at a fixed tilt angle of 30 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and the Earth's elliptical orbit patterns.

Local Environmental Challenges

Several environmental and weather factors in this region can significantly impact solar panel performance and require careful consideration during installation:

• Dust and Sand Accumulation: The semi-arid climate typical of northern Pakistan creates substantial dust buildup on solar panels, which can reduce efficiency by 15-25% if left uncleaned
• Monsoon Weather: Heavy seasonal rains and potential hail during monsoon periods can damage panels and create temporary shading from cloud cover
• Temperature Extremes: High summer temperatures can reduce panel efficiency, while winter temperature drops affect battery performance in off-grid systems
• Air Quality Issues: Regional air pollution and particulate matter can create a film on panels that reduces light transmission

Recommended Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Regular Cleaning Schedule: Implement monthly panel cleaning during dry seasons and bi-weekly cleaning during dusty periods using appropriate cleaning equipment and techniques
• Robust Mounting Systems: Install reinforced mounting hardware designed to withstand high winds and potential hail damage common during monsoon seasons
• Adequate Ventilation: Ensure proper airflow around panels to reduce heat buildup and maintain optimal operating temperatures
• Quality Panel Selection: Choose panels with anti-reflective coatings and self-cleaning properties where possible to minimize dust adhesion
• Strategic Positioning: Avoid installation near dust sources like unpaved roads or construction areas, and ensure easy access for maintenance

Overall, while Haripur presents some environmental challenges for solar installations, proper planning and maintenance can ensure reliable energy production, particularly during the excellent spring and summer seasons when output is at its peak.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

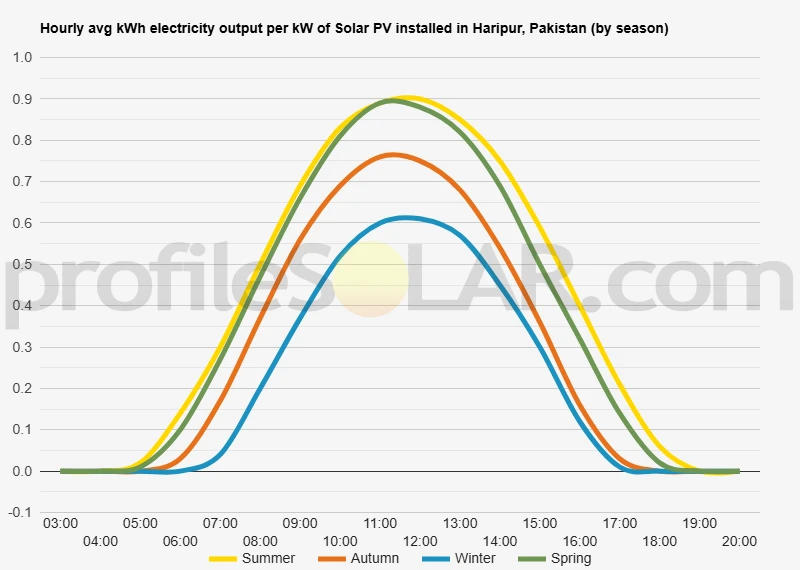

Solar output per kW of installed solar PV by season in Haripur

Seasonal solar PV output for Latitude: 33.9946, Longitude: 72.9343 (Haripur, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Haripur, Pakistan

To maximize your solar PV system's energy output in Haripur, Pakistan (Lat/Long 33.9946, 72.9343) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Haripur, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Haripur, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° South in Summer	39° South in Autumn	49° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Haripur, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Haripur, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Haripur, Pakistan

Topographical Features of Haripur

Haripur sits in the northwestern region of Pakistan within Khyber Pakhtunkhwa province, positioned in a transitional zone between the fertile plains of Punjab to the south and the rugged mountainous terrain of the Hindu Kush range to the north. The city itself occupies relatively flat to gently undulating terrain at an elevation of approximately 520 meters above sea level, making it part of the Pothohar Plateau's northern extension. The landscape around Haripur is characterized by rolling hills interspersed with agricultural valleys and seasonal watercourses. To the north and northeast, the terrain becomes increasingly mountainous as it approaches the foothills of the Margalla Hills and the broader Himalayan system. These elevated areas feature steep slopes, rocky outcrops, and dense vegetation in some sections, particularly where seasonal rainfall supports forest growth.

Local Terrain Variations

The immediate vicinity of Haripur displays a mix of cultivated fields, small settlements, and patches of scrubland. The Khanpur Dam lies approximately 8 kilometers to the southwest, creating a significant water body that has influenced local microclimates and land use patterns. The area around the dam features more varied topography with small hills and valleys carved by water flow over time. Moving eastward from Haripur, the landscape gradually transitions into the more pronounced hill country that characterizes much of the Pothohar region. These areas contain numerous small streams and seasonal watercourses that flow generally from north to south, eventually joining larger river systems. The soil composition varies from fertile alluvial deposits in the valley bottoms to rockier, less fertile soils on the hillsides and elevated areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Haripur would be the relatively flat agricultural plains extending southward and southwestward from the city center. These areas offer several advantages including minimal slope variations, reduced shading from topographical features, and generally good accessibility for construction and maintenance activities. The plateau areas between Haripur and the Khanpur Dam present particularly promising sites for solar development. This region combines favorable topography with proximity to existing infrastructure while being sufficiently removed from dense residential areas. The land here consists primarily of gently rolling terrain with gradual elevation changes that would not significantly complicate solar panel installation or reduce system efficiency. Areas to the southeast of Haripur, extending toward the broader Pothohar Plateau, also offer excellent potential for large-scale solar projects. These locations feature extensive flat to gently sloping terrain with minimal vegetation coverage and good exposure to prevailing weather patterns. The relatively sparse population density in these areas would facilitate the acquisition of large continuous parcels of land necessary for utility-scale solar installations. The northern and northeastern areas around Haripur would be less suitable for major solar developments due to their increasingly mountainous character, which creates challenges including steep slopes, potential shading from ridgelines and peaks, and more complex terrain that complicates construction and maintenance access. Additionally, these areas often support more diverse ecosystems that might face environmental protection considerations.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
