The location of Hazro, Punjab, Pakistan, situated in the Northern Sub Tropics at coordinates 33.9088, 72.4851, presents a favorable environment for solar PV energy generation throughout the year. However, the effectiveness of solar power production varies across seasons.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive daily output of 7.14 kWh per kW of installed solar capacity. Spring follows closely, generating 6.61 kWh/day. Autumn sees a moderate decrease in production at 5.16 kWh/day, while winter experiences the lowest output at 3.86 kWh/day per kW installed.

The substantial variation between summer and winter production highlights the impact of seasonal changes on solar energy generation in Hazro. Despite the winter dip, the location maintains a respectable year-round solar potential, making it a viable option for solar PV installations.

Optimal Panel Installation

For fixed panel installations in Hazro, Punjab, the ideal tilt angle to maximize year-round solar production is 30 degrees facing South. This angle is calculated based on the location's latitude and accounts for the Earth's elliptical orbit, ensuring optimal exposure to sunlight throughout the year.

Environmental Considerations

While Hazro's climate is generally conducive to solar energy production, there are some environmental factors to consider:

• Dust and air pollution: Hazro, Punjab, like many areas in Pakistan, can experience dust storms and air pollution, which may accumulate on solar panels and reduce their efficiency.
• Monsoon season: The region experiences a monsoon season, which could lead to increased cloud cover and potentially impact solar output during certain months.

Preventative Measures

To mitigate these environmental challenges and ensure optimal solar energy production, the following measures can be implemented:

Regular cleaning and maintenance of solar panels to remove dust and debris is crucial. Installing panels at the recommended 30-degree tilt can also help with natural cleaning during rainfall. Additionally, using high-quality, dust-resistant solar panels and implementing a robust mounting system to withstand potential strong winds during storms can enhance the overall performance and longevity of the solar installation in Hazro.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

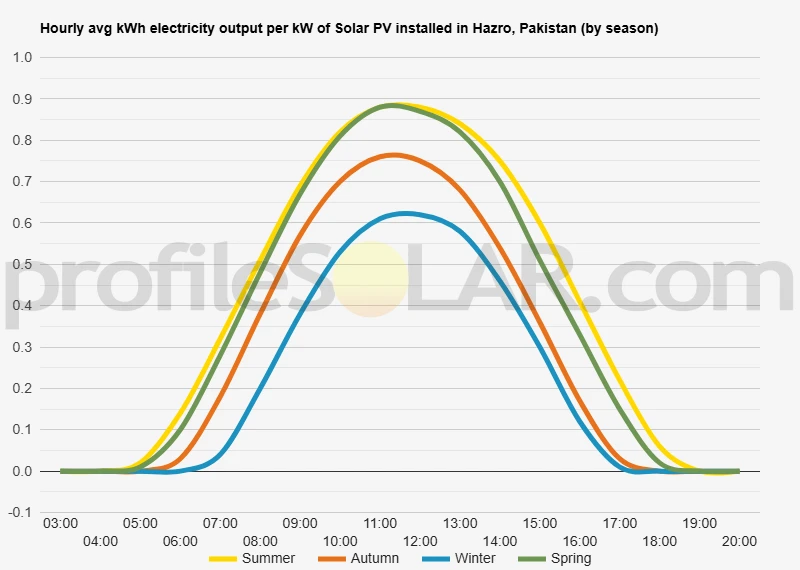

Solar output per kW of installed solar PV by season in Hazro

Seasonal solar PV output for Latitude: 33.9088, Longitude: 72.4851 (Hazro, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Hazro, Pakistan

To maximize your solar PV system's energy output in Hazro, Pakistan (Lat/Long 33.9088, 72.4851) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hazro, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hazro, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	39° South in Autumn	49° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hazro, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hazro, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hazro, Pakistan

The topography around Hazro, Pakistan, is characterized by a diverse landscape that includes both flat plains and hilly terrain. Situated in the northern part of Punjab province, Hazro is nestled in a region where the Indus River valley meets the foothills of the Himalayan mountain range. This unique location creates a varied topographical profile that transitions from relatively flat agricultural lands to more rugged, elevated areas as one moves northward. To the south and east of Hazro, the terrain is predominantly flat to gently rolling, with fertile alluvial plains that have been shaped by the Indus River and its tributaries over millennia. These lowlands are extensively cultivated, with a patchwork of agricultural fields stretching across the horizon. The flat nature of this area provides ample open space and unobstructed views of the sky. As one moves towards the north and west of Hazro, the landscape gradually becomes more undulating, with low hills and ridges emerging from the plains. These elevations increase in height and frequency, eventually giving way to the more pronounced foothills of the Himalayas. The hills in this region are often covered with sparse vegetation, consisting of shrubs and small trees adapted to the semi-arid climate.

Suitable Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Hazro, the flat plains to the south and east of the town present the most promising opportunities. These areas offer several advantages for solar energy development: Firstly, the flat terrain provides large, uninterrupted spaces that can accommodate extensive arrays of solar panels. This allows for efficient layout and installation of PV systems without the need for significant land modification or terracing. Secondly, the open nature of the plains ensures minimal shading from natural features such as hills or mountains. This maximizes the amount of direct sunlight reaching the solar panels throughout the day, enhancing their energy production potential. Additionally, the agricultural lands in these flat areas often have existing road infrastructure, which can facilitate the transportation of equipment and materials necessary for solar farm construction and maintenance. It's worth noting that while the hilly regions to the north and west may receive good solar radiation, they are generally less suitable for large-scale solar PV due to the challenges posed by uneven terrain, potential shading from neighboring hills, and more difficult access for construction and maintenance. When planning any solar PV installation, it would be crucial to conduct detailed site-specific assessments, considering factors such as local climate data, land ownership, grid connectivity, and environmental impact. These studies would help identify the most optimal locations for solar energy development in the vicinity of Hazro, ensuring the best possible utilization of the region's solar resources.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
