Solar Energy Potential in Kahuta, Punjab, Pakistan

Kahuta, Punjab, Pakistan, located at 33.5793° N, 73.3829° E in the Northern Sub Tropics, offers a promising location for solar PV energy generation. The region experiences varying levels of solar output throughout the year, with distinct seasonal patterns. Summer stands out as the most productive season, with an impressive 6.80 kWh per day output for each kilowatt of installed solar capacity. Spring follows closely behind, generating 6.39 kWh/day. These seasons present ideal conditions for maximizing solar energy production. Autumn sees a moderate decline in output, producing 4.99 kWh/day. Winter experiences the lowest generation at 3.75 kWh/day per kW installed. Despite this seasonal dip, Kahuta still maintains a respectable year-round solar potential.

Optimal Panel Installation

For fixed panel installations in Kahuta, Punjab, the ideal tilt angle to maximize year-round solar production is 30 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the location's latitude and the Earth's orbit.

Environmental Considerations

While Kahuta offers favorable conditions for solar energy, there are some environmental factors to consider:

• Dust and air pollution: The region may experience dust storms and air pollution, which can reduce panel efficiency.
• Monsoon season: Heavy rains during the monsoon months can temporarily decrease solar output.

To mitigate these issues, regular panel cleaning and maintenance are essential. Installing panels at the optimal angle helps with natural cleaning during rainfall. Additionally, using high-quality, dust-resistant panels can improve performance in dusty conditions. Overall, Kahuta presents a suitable location for solar PV installations, with strong potential during summer and spring months. While winter output is lower, the year-round generation capacity remains favorable, making it a viable option for sustainable energy production in Pakistan.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

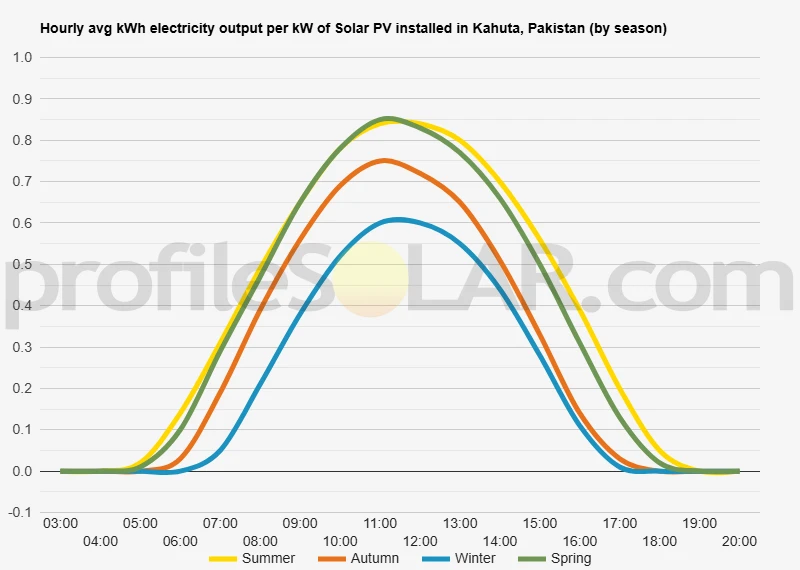

Solar output per kW of installed solar PV by season in Kahuta

Seasonal solar PV output for Latitude: 33.5793, Longitude: 73.3829 (Kahuta, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Kahuta, Pakistan

To maximize your solar PV system's energy output in Kahuta, Pakistan (Lat/Long 33.5793, 73.3829) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kahuta, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kahuta, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	39° South in Autumn	49° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kahuta, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kahuta, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kahuta, Pakistan

The area surrounding Kahuta, Pakistan is characterized by diverse and rugged terrain typical of the northern Punjab region. Situated in the foothills of the Himalayas, Kahuta is nestled among rolling hills and valleys, with elevations ranging from approximately 500 to 1,000 meters above sea level. The landscape is a mix of gentle slopes, steep inclines, and flat plateaus, creating a varied topographical profile. To the north and east of Kahuta, the terrain becomes increasingly mountainous, with higher elevations and more dramatic changes in altitude. These areas are part of the Margalla Hills, which form the western edge of the Himalayas. The hills are covered with dense forests, providing a stark contrast to the more open areas around Kahuta itself. Towards the south and west, the land gradually becomes flatter, transitioning into the fertile plains of Punjab. This area features gentler slopes and wider valleys, with numerous small streams and rivers crisscrossing the landscape. The Soan River, a major tributary of the Indus, flows nearby, contributing to the region's water resources.

Potential for Large-Scale Solar PV

When considering areas suitable for large-scale solar photovoltaic (PV) installations near Kahuta, several factors come into play. The ideal locations would combine flat or gently sloping terrain, good sun exposure, and proximity to existing infrastructure. The areas south and southwest of Kahuta show the most promise for solar PV development. These regions feature more open, less forested land with gentler topography. The gradual slopes here provide better opportunities for large-scale installations without the need for extensive land modification. Additionally, these areas generally receive more consistent sunlight throughout the day due to less shadowing from nearby hills. Specific locations that might be particularly well-suited include the broader valleys and plateaus found between Kahuta and the city of Rawalpindi to the northwest. These areas offer a good balance of flat terrain and elevation, potentially maximizing solar exposure while minimizing the impact of morning and evening shadows from surrounding hills. It's important to note that while the topography is favorable in these areas, other factors such as land ownership, environmental considerations, and proximity to the electrical grid would also need to be evaluated for any large-scale solar PV project. The final selection of sites would require detailed on-the-ground surveys and environmental impact assessments.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
