Solar PV Analysis of Karach, Pakistan
Karachi, Pakistan is a pretty good place to generate solar energy all year round. The city gets a decent amount of sunlight in each season, with the highest electricity output from solar panels during summer and spring. During these seasons, for every kilowatt of installed solar capacity, you can expect around 7.61 and 7.44 kilowatt-hours per day respectively.
Autumn and winter see slightly less sunshine, but still produce a respectable amount of electricity - about 5.95 and 5.23 kilowatt-hours per day for every kilowatt of installed solar capacity.
If you're installing fixed-panel solar systems here, it's best to tilt them at an angle of 24 degrees facing South to get the most out of the available sunlight throughout the year.
However, there might be some local factors that could potentially affect your ability to harness sun power in Karachi. For instance:
1) Dust and Pollution: Karachi is known for its dust storms which could cover your panels reducing their efficiency. Regular cleaning can help keep this problem under control.
2) Monsoon Season: Heavy rains during monsoons may limit sun exposure causing reduced energy production during those periods.
3) Urban Heat Island Effect: Being heavily urbanized area can make Karachi hotter than surrounding rural areas which may reduce panel efficiency as they work best at cooler temperatures.
To overcome these challenges:
- Install automated cleaning systems or schedule regular maintenance checks to ensure your panels are clean and working efficiently.
- Consider using weather-resistant equipment that can withstand heavy rainfall during monsoon season.
- Provide adequate ventilation or cooling mechanisms for your panels if possible to counteract the heat island effect.
So overall, while there are some challenges unique to Karachi's environment that need addressing when installing a solar system; with proper planning & maintenance it should prove beneficial due its strong seasonal sunlight availability throughout most parts of the year!
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Pakistan by location

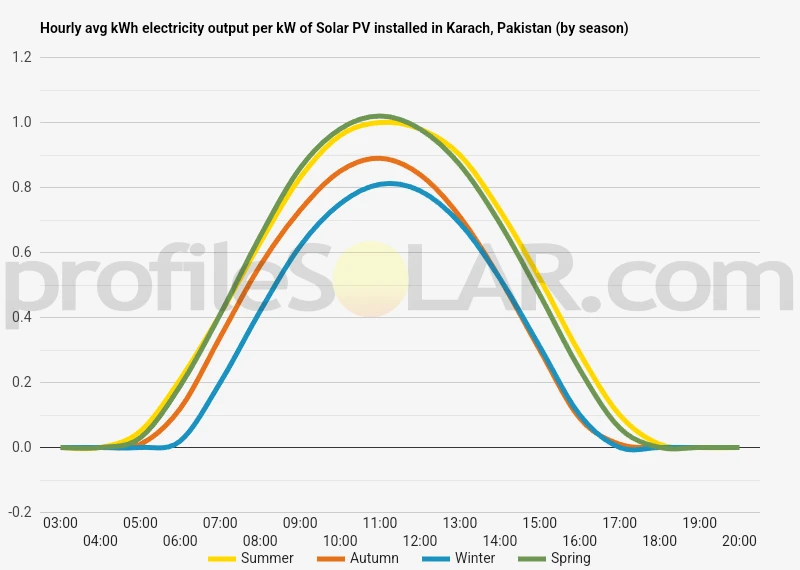

Solar output per kW of installed solar PV by season in Karach
Seasonal solar PV output for Latitude: 26.8884, Longitude: 65.4482 (Karach, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 24° South in Karach, Pakistan
To maximize your solar PV system's energy output in Karach, Pakistan (Lat/Long 26.8884, 65.4482) throughout the year, you should tilt your panels at an angle of 24° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Karach, Pakistan
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Karach, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 11° South in Summer | 32° South in Autumn | 42° South in Winter | 20° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Karach, Pakistan
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Karach, Pakistan.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Karach, Pakistan
The coordinates provided do not point to Karachi, Pakistan but rather a location in the Balochistan province of Pakistan. This area is largely characterized by arid desert topography with barren hills and plains.
Large-scale solar PV installations require large areas of flat land that receive ample sunlight throughout the year. The desert regions around these coordinates could be suitable for such installations as they likely receive high amounts of annual sunshine. However, it's also important to consider other factors like proximity to transmission lines or populated areas (for ease of connecting the generated power to the grid), availability of water (needed for panel cleaning), and local environmental impacts before deciding on a location for large-scale solar PV.
As for Karachi, it is located along the coastline of the Arabian Sea which means there might be potential issues with salt mist corrosion for solar panels. However, its flat terrain and high levels of sunlight make it potentially suitable for large-scale solar PV installations too. It would also have better infrastructure compared to rural Balochistan.
Please consult with a local renewable energy expert or conduct a detailed feasibility study before making any decisions about specific locations.
Pakistan solar PV Stats as a country
Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Pakistan?
Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.
Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
