Kasur, Pakistan presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at Kasur shows significant seasonal fluctuation throughout the year. Spring emerges as the peak production season, delivering 6.50 kWh per day per kW of installed solar capacity. Summer follows closely behind at 6.33 kWh per day, making these two seasons the most productive periods for solar energy generation. Autumn sees a notable decline in output to 4.77 kWh per day, while winter presents the most challenging period with only 3.49 kWh per day. This represents nearly a 50% reduction in energy production compared to peak seasons, which is a substantial variation that affects the economic viability and energy planning for solar installations.

Optimal Panel Configuration

For maximum year-round energy production at Kasur, solar panels should be installed at a fixed tilt angle of 28 degrees facing south. This optimal angle has been calculated to maximize total annual solar output by accounting for the sun's changing position throughout the year and weighting these angles based on actual solar irradiance data and daily photovoltaic potential.

Environmental and Weather Challenges

Several significant local factors can impede solar production at this Northern Sub Tropical location, requiring careful consideration during installation planning. Dust and Particulate Matter: Pakistan's climate, particularly in Punjab province where Kasur is located, experiences significant dust storms and high levels of airborne particles. This dust accumulation on solar panels can reduce efficiency by 15-25% or more if left unaddressed. Regular cleaning schedules and anti-soiling coatings on panels can help maintain optimal performance. Monsoon Season Impact: The region experiences monsoon rains typically from July through September, which can create extended periods of cloud cover and reduced solar irradiance. While the rain helps clean panels naturally, the prolonged overcast conditions during peak monsoon periods can significantly impact energy production during what should be productive summer months. High Humidity and Temperature: The subtropical climate brings high humidity levels and elevated temperatures, particularly during summer months. Solar panel efficiency decreases as temperatures rise, and high humidity can lead to corrosion issues over time. Proper ventilation spacing behind panels and corrosion-resistant mounting hardware are essential preventative measures.

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate spacing from roof surfaces to promote air circulation and cooling
• Use high-quality, humidity-resistant electrical components and junction boxes
• Implement easy-access cleaning systems or schedule regular professional panel cleaning
• Consider anti-reflective and hydrophobic coatings to reduce dust adhesion
• Install robust mounting systems designed to withstand monsoon winds and weather

Overall Assessment

While Kasur offers reasonable solar potential, particularly during spring and summer seasons, the significant winter reduction in output and environmental challenges require careful system sizing and maintenance planning. The location is suitable for solar PV installation, but investors should account for seasonal variations and implement proper maintenance protocols to ensure optimal long-term performance.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

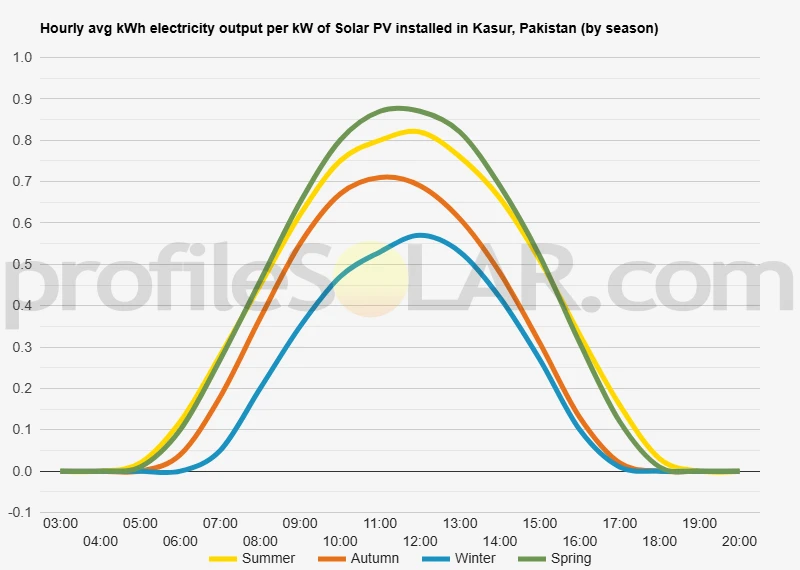

Solar output per kW of installed solar PV by season in Kasur

Seasonal solar PV output for Latitude: 31.1138, Longitude: 74.4486 (Kasur, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Kasur, Pakistan

To maximize your solar PV system's energy output in Kasur, Pakistan (Lat/Long 31.1138, 74.4486) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kasur, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kasur, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	37° South in Autumn	46° South in Winter	24° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kasur, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kasur, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kasur, Pakistan

Topographical Features Around Kasur

Kasur sits in the fertile plains of Punjab province in eastern Pakistan, positioned within the expansive Indus River basin. The terrain around this historic city is characteristically flat to gently undulating, with elevations ranging from approximately 200 to 220 meters above sea level. This relatively uniform topography extends across much of the surrounding landscape, creating an environment dominated by agricultural fields, irrigation channels, and scattered rural settlements.

The area forms part of the larger Punjab Plains, which were shaped by centuries of alluvial deposits from the Indus River system and its tributaries. The Ravi River flows roughly 15 kilometers to the north of Kasur, contributing to the region's flat, sedimentary landscape. Small seasonal watercourses and drainage channels crisscross the terrain, though these rarely create significant elevation changes or topographical barriers.

Land Use and Surface Characteristics

The landscape around Kasur is predominantly agricultural, with extensive wheat, rice, and cotton fields stretching in all directions. These cultivated areas are interspersed with small villages, rural roads, and irrigation infrastructure. The soil composition consists mainly of fertile alluvium, which supports intensive farming but also creates relatively stable ground conditions for construction projects.

Urban development radiates outward from Kasur city center, but much of the surrounding area remains rural in character. The flat terrain and grid-like pattern of agricultural fields create large, unobstructed spaces with minimal shading from natural features like hills or dense forests. Tree coverage is generally sparse, consisting mainly of scattered specimens along field boundaries and near settlements.

Optimal Areas for Large-Scale Solar Development

The expansive flat plains extending south and southwest of Kasur present the most favorable conditions for large-scale solar photovoltaic installations. These areas benefit from minimal topographical variation, reducing the complexity and cost of site preparation and panel installation. The agricultural land in these directions tends to be less densely populated, potentially making land acquisition more straightforward for utility-scale projects.

Areas located 10 to 25 kilometers southeast of the city center offer particularly promising conditions, where the terrain remains consistently flat and rural settlements are more dispersed. The absence of significant hills, ridges, or other elevated features in these zones means that solar installations would face minimal shading issues throughout the day across all seasons.

The western and northwestern areas around Kasur also present suitable topographical conditions, though proximity to the Ravi River and associated agricultural infrastructure might create some constraints. The flat, open character of these plains ensures that large solar arrays could be oriented optimally without concern for terrain-induced shading or the need for extensive grading operations.

Transportation access represents another advantage of the region's topography, as the flat terrain has historically supported the development of road networks that could facilitate the construction and maintenance of solar facilities. The uniform elevation and stable soil conditions typical of alluvial plains also provide solid foundations for mounting systems and electrical infrastructure required for utility-scale solar developments.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
