Khairpur Qazianwala, Punjab, Pakistan, located in the Northern Sub Tropics, presents a promising location for solar PV energy generation. The site's potential for solar power production varies throughout the year, with notable seasonal fluctuations.

Seasonal Solar Output

Summer and spring offer the most favorable conditions for solar energy production, with an impressive daily output of 6.85 kWh and 6.86 kWh per kW of installed solar capacity, respectively. These seasons provide ample sunlight and longer days, maximizing the potential for energy generation.

Autumn sees a moderate decrease in solar output, with 5.06 kWh per day for each kW installed. While not as productive as summer and spring, this season still offers substantial energy generation opportunities.

Winter presents the most challenging period for solar production, with a daily output of 3.98 kWh per kW installed. Despite the reduced sunlight hours and potentially overcast days, the location still maintains a respectable level of energy generation during this season.

Optimal Panel Placement

To maximize year-round solar production at this location, fixed solar panels should be tilted at a 27-degree angle facing south. This optimal angle ensures the panels capture the most sunlight throughout the year, accounting for the sun's changing position across seasons.

Environmental Considerations

While Khairpur Qazianwala offers generally favorable conditions for solar energy production, there are some environmental factors to consider:

• Dust and sandstorms: The region's arid climate can lead to dust accumulation on solar panels, potentially reducing their efficiency.
• High temperatures: Extreme heat during summer months may slightly decrease panel efficiency.

To mitigate these issues, regular cleaning and maintenance of solar panels is crucial. Installing panels with a slight tilt can help prevent dust accumulation, while choosing high-quality, heat-resistant panels can minimize efficiency losses due to high temperatures.

In conclusion, Khairpur Qazianwala presents a highly suitable location for solar PV energy generation, with particularly strong potential during summer and spring months. By implementing appropriate installation techniques and maintenance practices, this site can harness significant solar energy throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

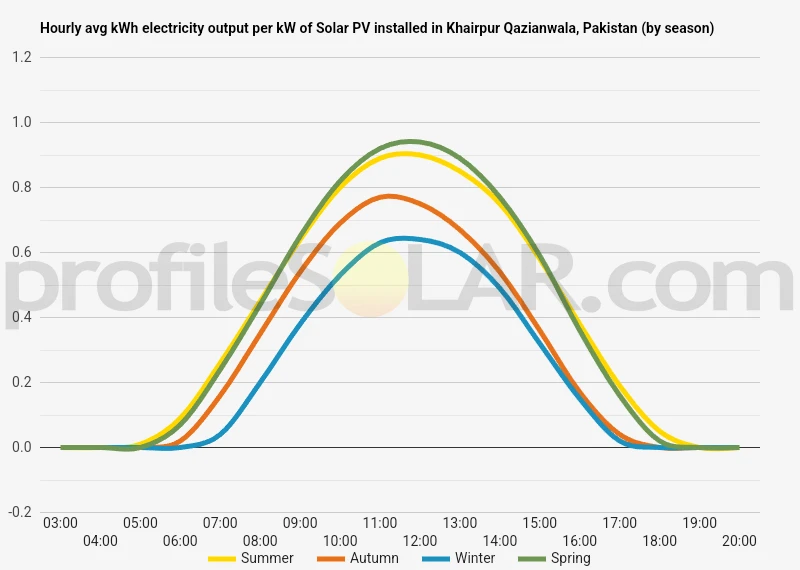

Solar output per kW of installed solar PV by season in Khairpur Qazianwala

Seasonal solar PV output for Latitude: 29.9779, Longitude: 71.2927 (Khairpur Qazianwala, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Khairpur Qazianwala, Pakistan

To maximize your solar PV system's energy output in Khairpur Qazianwala, Pakistan (Lat/Long 29.9779, 71.2927) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Khairpur Qazianwala, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Khairpur Qazianwala, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Khairpur Qazianwala, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Khairpur Qazianwala, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Khairpur Qazianwala, Pakistan

The topography around Khairpur Qazianwala, Pakistan, is characterized by flat, arid plains typical of the southern Punjab region. This area is part of the vast Indus River basin, with the landscape dominated by expansive agricultural fields and scattered settlements. The terrain is predominantly level, with only slight variations in elevation across the region. The climate in this area is hot and dry, with limited rainfall throughout the year. The flat terrain and lack of significant geographical features result in minimal natural obstacles or shadows, allowing for unobstructed exposure to sunlight for much of the day.

Suitability for Large-Scale Solar PV

Given the topographical and climatic conditions of the region surrounding Khairpur Qazianwala, several nearby areas would be well-suited for large-scale solar photovoltaic (PV) installations. The most promising locations would be the expansive, unoccupied stretches of land between settlements and agricultural areas. These open plains offer ideal conditions for solar PV projects due to their flat terrain, which simplifies construction and minimizes the need for extensive land preparation. The lack of tall vegetation or geographical features that could cast shadows ensures maximum sun exposure throughout the day, optimizing energy generation potential. Additionally, the region's hot and dry climate contributes to high solar irradiance levels, further enhancing the suitability for solar power generation. The minimal rainfall in the area also reduces the risk of weather-related disruptions to solar panel efficiency. Areas to the south and west of Khairpur Qazianwala may be particularly suitable for large-scale solar PV installations, as they tend to have lower population densities and more available open land. However, it's important to consider factors such as proximity to existing power infrastructure, road access for construction and maintenance, and the need to balance land use with agricultural activities, which are crucial to the local economy. In conclusion, the flat, arid topography and abundant sunshine in the region surrounding Khairpur Qazianwala create favorable conditions for large-scale solar PV projects, with ample suitable land available in the nearby open plains.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
