Khairpur, Sindh, Pakistan, located at 27.5278° N, 68.7538° E, offers a promising location for solar energy generation throughout the year. This northern subtropical region experiences varying levels of solar potential across different seasons, providing opportunities for consistent electricity production via photovoltaic (PV) systems.

Seasonal Solar Performance

The solar energy output in Khairpur fluctuates across seasons, with spring and summer being the most productive periods. During spring, the region experiences peak performance, generating an impressive 7.20 kWh per day for each kilowatt of installed solar capacity. Summer follows closely, with a daily output of 6.89 kWh/kW. Autumn sees a moderate decrease in production, yielding 5.48 kWh/day per kW installed. Winter experiences the lowest output at 4.61 kWh/day per kW, but still maintains a respectable level of energy generation.

Optimal Panel Positioning

To maximize year-round solar energy production in Khairpur, Sindh, fixed solar panels should be tilted at a 25-degree angle facing south. This optimal angle ensures the panels capture the most sunlight throughout the year, accounting for seasonal variations in the sun's position.

Environmental Considerations

While Khairpur's climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. Dust and sand: The region's arid climate can lead to dust accumulation on solar panels, potentially reducing their efficiency. Regular cleaning and maintenance of panels are essential to mitigate this issue. 2. High temperatures: Extreme heat during summer months may slightly decrease panel efficiency. Choosing heat-resistant PV modules and ensuring proper ventilation during installation can help maintain optimal performance. 3. Monsoon season: Although not as severe as in other parts of Pakistan, Khairpur may experience some monsoon rains, which could temporarily reduce solar output. Installing panels at the recommended angle helps with natural cleaning during rainfall.

Preventative Measures

To enhance solar energy production and system longevity in Khairpur, Sindh, consider implementing the following measures: 1. Use anti-reflective and self-cleaning panel coatings to reduce dust accumulation and improve light absorption. 2. Install a robust mounting system capable of withstanding occasional strong winds. 3. Implement a regular cleaning schedule, especially during drier months, to maintain optimal panel efficiency. 4. Choose high-quality, temperature-resistant solar panels and inverters designed to perform well in hot climates. By addressing these factors and implementing appropriate preventative measures, Khairpur can harness its substantial solar potential effectively, making it an ideal location for year-round solar energy generation.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

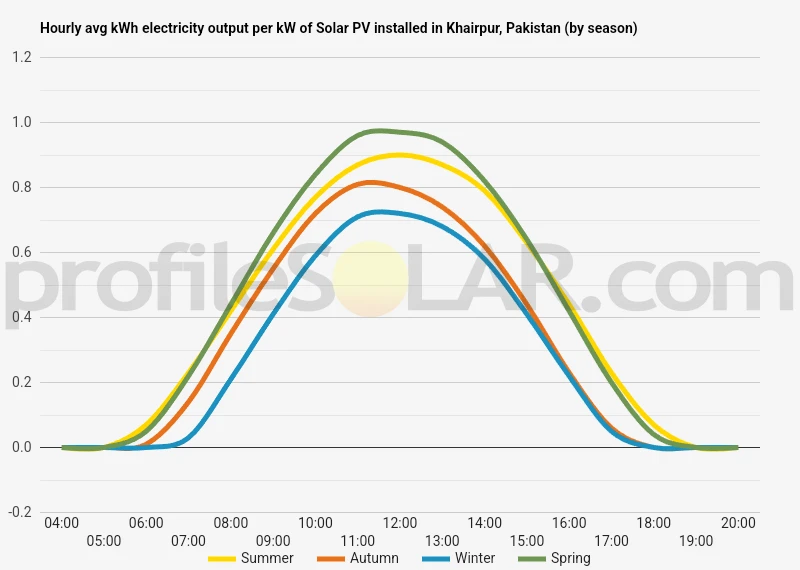

Solar output per kW of installed solar PV by season in Khairpur

Seasonal solar PV output for Latitude: 27.5278, Longitude: 68.7538 (Khairpur, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° South in Khairpur, Pakistan

To maximize your solar PV system's energy output in Khairpur, Pakistan (Lat/Long 27.5278, 68.7538) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Khairpur, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Khairpur, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	33° South in Autumn	43° South in Winter	21° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Khairpur, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Khairpur, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Khairpur, Pakistan

The topography around Khairpur, Pakistan is characterized by a predominantly flat landscape with some gentle undulations. This area is part of the Indus River Valley, which is known for its vast alluvial plains. The terrain is generally low-lying, with elevations typically ranging from 50 to 100 meters above sea level.

To the west of Khairpur, the land gradually rises towards the Kirthar Range, a series of low mountain ridges that separate the Indus Valley from the Balochistan Plateau. However, these mountains are quite distant from Khairpur itself. To the east, the landscape remains mostly flat, extending towards the Thar Desert.

The immediate vicinity of Khairpur is dominated by agricultural land, interspersed with small settlements and irrigation channels. The Nara Canal, an important waterway for the region, runs to the east of the city, providing water for cultivation in this otherwise arid environment.

Areas Suitable for Large-Scale Solar PV

For large-scale solar photovoltaic (PV) installations, the areas most suited would be the expansive flat lands to the east and southeast of Khairpur. These regions offer several advantages for solar energy development:

1. Abundant open space: The sparsely populated areas provide ample room for extensive solar arrays without significant land-use conflicts.
2. Flat terrain: The level ground reduces construction costs and simplifies the installation process for solar panels.
3. High solar irradiance: This region experiences a hot, arid climate with many sunny days throughout the year, maximizing potential solar energy generation.
4. Minimal shading: The lack of tall vegetation or geographical features means less obstruction to sunlight.

Specifically, the desert areas stretching towards Sanghar and Nawabshah districts would be prime locations for solar PV projects. These areas combine the necessary geographical features with proximity to existing power infrastructure, making them ideal for large-scale solar energy development.

However, it's important to note that any solar project would need to consider factors such as access to the electrical grid, water availability for panel cleaning, and potential environmental impacts. Additionally, measures to protect the solar installations from dust storms, which are common in this region, would be necessary to ensure optimal performance and longevity of the solar PV systems.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
