Solar Power Potential in Kotla Arab Ali Khan, Punjab, Pakistan

Kotla Arab Ali Khan, Punjab, Pakistan, situated in the Northern Sub Tropics, offers promising conditions for solar energy generation throughout the year. This location experiences varying levels of solar energy production across different seasons, making it a generally favorable site for photovoltaic (PV) installations. The seasonal performance of solar PV systems in this area shows distinct patterns. Summer months deliver the highest energy output at 6.84kWh per day for each kilowatt of installed capacity. Spring follows closely with 6.68kWh/day, making these two seasons the prime periods for solar generation. Autumn produces a moderate 5.09kWh/day, while winter sees the lowest production at 3.71kWh/day per kilowatt installed. For maximizing year-round solar energy capture at this location, fixed solar panels should be installed at a 29-degree tilt facing South. This specific angle has been calculated to optimize annual solar energy production based on the location's latitude and solar elevation patterns throughout the year.

Environmental Factors Affecting Solar Production

Several environmental factors could potentially impact solar energy generation in Kotla Arab Ali Khan:

• Dust and air pollution: Being in a semi-arid region, dust accumulation on panels can significantly reduce efficiency. Regular cleaning schedules and possibly automated cleaning systems should be implemented.
• Seasonal temperature variations: High summer temperatures can reduce PV panel efficiency. Using panels with good temperature coefficients and ensuring adequate airflow behind panels can mitigate this issue.
• Monsoon cloud cover: During the monsoon season, increased cloud cover may temporarily reduce solar output. System sizing should account for this seasonal variation.

To maximize energy production in this location, installations should incorporate elevated mounting structures to prevent dust buildup, include regular maintenance protocols, and potentially utilize tracking systems to capture more sunlight during the productive spring and summer months. The relatively strong performance in both spring and summer makes this location particularly suitable for solar PV deployment with appropriate preventative measures in place.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

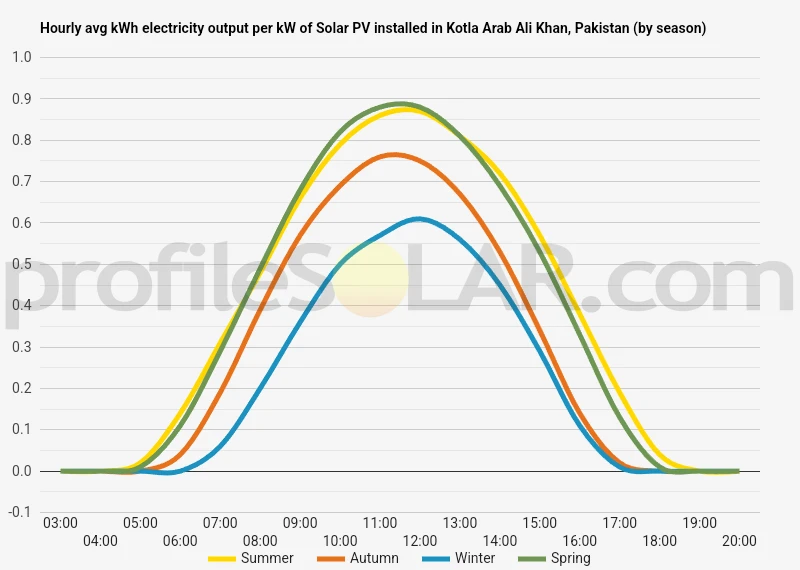

Solar output per kW of installed solar PV by season in Kotla Arab Ali Khan

Seasonal solar PV output for Latitude: 32.8506, Longitude: 74.0629 (Kotla Arab Ali Khan, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Kotla Arab Ali Khan, Pakistan

To maximize your solar PV system's energy output in Kotla Arab Ali Khan, Pakistan (Lat/Long 32.8506, 74.0629) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kotla Arab Ali Khan, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kotla Arab Ali Khan, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	38° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kotla Arab Ali Khan, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kotla Arab Ali Khan, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kotla Arab Ali Khan, Pakistan

Kotla Arab Ali Khan sits in the northeastern part of Pakistan, nestled within Punjab province near the border with Indian-administered Jammu and Kashmir. The terrain surrounding this settlement forms part of the greater Indus River basin, characterized by a mix of topographical features that transition between the flat alluvial plains of Punjab and the more elevated regions approaching the Himalayan foothills.

Regional Topography

The immediate vicinity of Kotla Arab Ali Khan consists primarily of gently rolling agricultural plains with slight undulations. The elevation in this area averages approximately 250-300 meters above sea level, creating a relatively flat landscape that gradually rises toward the northeast. This region forms part of the upper Indus basin, specifically within the Sialkot-Gujrat corridor. To the east and northeast, the terrain begins to rise more noticeably as it approaches the Pir Panjal mountain range, which forms the outer wall of the Himalayas. The transition from plains to foothills occurs over several kilometers, creating a gradual ascent rather than abrupt changes in elevation. The area is traversed by several seasonal streams and irrigation channels that flow toward the southwest, eventually connecting to the Chenab River system, one of the major tributaries of the Indus. These watercourses have carved subtle valleys and depressions throughout the otherwise level terrain.

Soil and Surface Features

The predominant soil type in the region is alluvial, deposited over centuries by the river systems flowing from the Himalayas. These soils tend to be fertile, supporting extensive agricultural activity throughout the area. The surface is largely cleared of natural vegetation and converted to farmland, with scattered settlements and road networks connecting the rural communities. Some areas feature slightly more elevated plateaus with drier, less fertile soil compositions. These higher grounds often have thinner soil layers over sedimentary rock formations, making them less suitable for intensive agriculture but potentially valuable for other land uses.

Solar PV Suitability

For large-scale solar photovoltaic installations, several nearby areas present favorable conditions: The slightly elevated plateaus to the northwest of Kotla Arab Ali Khan offer promising locations for solar development. These areas typically feature less productive agricultural land, reduced flooding risk, and good solar exposure with minimal shadowing from terrain features. The gentle slopes in this direction also provide natural drainage while maintaining suitable angles for solar array placement. The southwestern plains, extending toward Gujranwala, present another viable option. This region combines flat terrain with excellent accessibility via existing transportation infrastructure. The extensive open spaces allow for large contiguous installations without significant topographical constraints. Areas along the higher ground between Sialkot and Gujrat also merit consideration. These slightly elevated corridors receive consistent sunlight exposure and feature some sections of less intensively cultivated land that could be repurposed for solar energy production with minimal disruption to agricultural productivity. The northeastern areas approaching the foothills should generally be avoided for large solar installations due to increasing elevation changes, more frequent cloud cover from orographic effects, and potential shadowing from the rising terrain. Similarly, the lowest-lying areas near water channels face periodic flooding risks that could compromise solar infrastructure. The most promising locations combine several favorable characteristics: relatively level ground with slight southern exposure, proximity to existing electrical infrastructure, minimal current agricultural productivity, and sufficient distance from flood-prone waterways. These conditions are most consistently found in the slightly elevated plains to the west and southwest of Kotla Arab Ali Khan.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
