Kundian, Punjab, Pakistan, situated at latitude 32.463 and longitude 71.4693 in the Northern Sub Tropics, offers a promising location for solar PV energy generation throughout the year. The area experiences varying levels of solar output across different seasons, with notable fluctuations in electricity production.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive daily output of 7.19 kWh per kW of installed solar capacity. Spring follows closely behind, generating 6.67 kWh/day. Autumn sees a moderate decrease in production at 5.18 kWh/day, while winter experiences the lowest output at 4.05 kWh/day per kW installed.

These figures indicate that Kundian is well-suited for solar energy production, with particularly favorable conditions from spring through summer. The extended daylight hours and typically clearer skies during these seasons contribute to enhanced solar panel efficiency.

Optimal Panel Installation

To maximize year-round solar energy production in Kundian, Punjab, fixed solar panels should be installed at a tilt angle of 29 degrees facing South. This optimal angle ensures the panels capture the most sunlight throughout the year, accounting for seasonal variations in the sun's position.

Environmental Considerations

While Kundian generally presents favorable conditions for solar energy production, there are some environmental factors to consider:

• Dust and sandstorms: The region's arid climate can lead to dust accumulation on solar panels, potentially reducing their efficiency.
• Extreme temperatures: Summer heat may slightly decrease panel efficiency, although this is typically offset by longer daylight hours.

To mitigate these issues, regular panel cleaning and maintenance should be implemented. Additionally, investing in high-quality, heat-resistant panels and ensuring proper ventilation during installation can help maintain optimal performance in high temperatures.

Overall, Kundian's location proves to be highly suitable for solar PV energy generation, with ample sunlight throughout the year and manageable environmental challenges that can be addressed through proper installation and maintenance practices.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

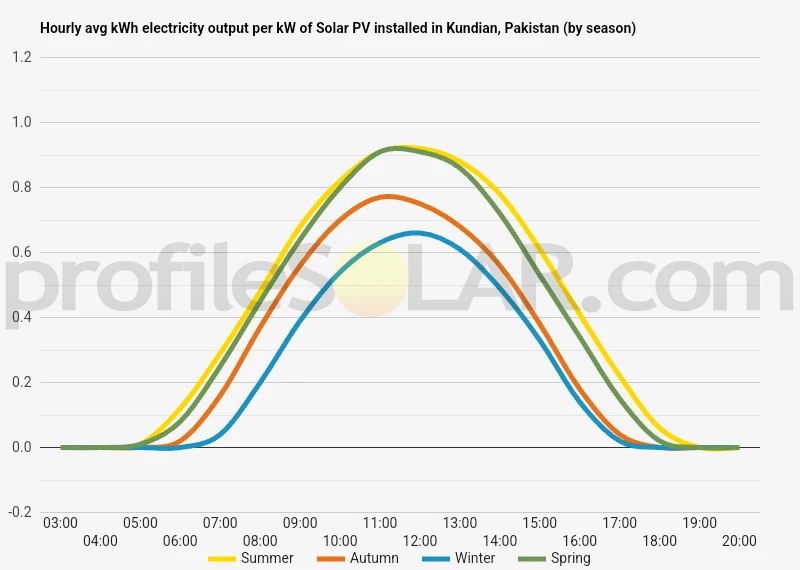

Solar output per kW of installed solar PV by season in Kundian

Seasonal solar PV output for Latitude: 32.463, Longitude: 71.4693 (Kundian, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Kundian, Pakistan

To maximize your solar PV system's energy output in Kundian, Pakistan (Lat/Long 32.463, 71.4693) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kundian, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kundian, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	38° South in Autumn	47° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kundian, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kundian, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kundian, Pakistan

The topography around Kundian, Pakistan, is characterized by a relatively flat landscape with some gentle undulations. This area is part of the vast Indus River plain, which stretches across much of central Pakistan. The terrain is predominantly composed of alluvial deposits, resulting in fertile soil that has been extensively used for agriculture. To the west of Kundian, the land gradually rises towards the Sulaiman Range, but this mountainous region is quite distant from the town itself. The immediate surroundings of Kundian are primarily flat, with occasional low-lying hills and subtle changes in elevation. The Indus River flows to the east of Kundian, creating a lush riverine ecosystem in contrast to the drier areas further inland.

Solar PV Potential

The regions surrounding Kundian offer significant potential for large-scale solar photovoltaic (PV) installations due to several favorable factors. The flat terrain and lack of major geographical obstacles make it easier to construct and maintain extensive solar arrays. Additionally, this part of Pakistan experiences high levels of solar irradiation throughout the year, making it an ideal location for harnessing solar energy. Areas to the south and southwest of Kundian would be particularly well-suited for large-scale solar PV projects. These regions tend to have less agricultural activity and lower population density, providing ample space for solar installations without significantly impacting existing land use. The arid climate in these areas also means there is less cloud cover, ensuring more consistent solar energy production. It's worth noting that while the immediate vicinity of Kundian is suitable for solar PV, care should be taken to avoid prime agricultural land near the Indus River. Instead, focusing on the slightly elevated, drier areas away from the river would be more appropriate for large-scale solar developments. These locations would minimize the impact on food production while maximizing the potential for clean energy generation.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
