Layyah, Punjab, Pakistan, situated at 30.7771°N, 70.9306°E in the Northern Sub Tropics, presents a favorable location for solar PV energy generation throughout the year. The region experiences varying levels of solar potential across different seasons, offering opportunities for consistent electricity production.

Seasonal Solar Performance

Solar panels in Layyah demonstrate strong performance during summer and spring, with daily outputs of 6.63 kWh and 6.54 kWh per kW installed, respectively. Autumn sees a moderate decrease to 5.08 kWh/day, while winter experiences the lowest output at 4.09 kWh/day per kW installed. Despite the seasonal fluctuations, the location maintains a respectable year-round solar potential.

Optimal Generation Periods

The most ideal times for solar energy generation in Layyah are during the summer months and late spring. These periods offer extended daylight hours and typically clearer skies, maximizing solar panel efficiency. While autumn and winter show reduced output, they still contribute significantly to the overall annual energy production.

Panel Installation Considerations

For fixed panel installations in Layyah, Punjab, the optimal tilt angle to maximize year-round solar PV production is 28 degrees facing South. This angle has been calculated to balance seasonal variations in sun position and maximize energy capture throughout the year.

Environmental and Weather Factors

While Layyah generally offers favorable conditions for solar energy production, there are some environmental factors to consider:

• Dust storms: The region may experience occasional dust storms, which can temporarily reduce panel efficiency.
• High temperatures: Summer temperatures can soar, potentially affecting panel performance.

To mitigate these issues, regular panel cleaning should be implemented to remove dust accumulation. Additionally, installing panels with adequate spacing for airflow and using heat-resistant components can help maintain efficiency during high-temperature periods. Overall, with proper installation and maintenance, Layyah presents a highly suitable location for year-round solar PV energy generation.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

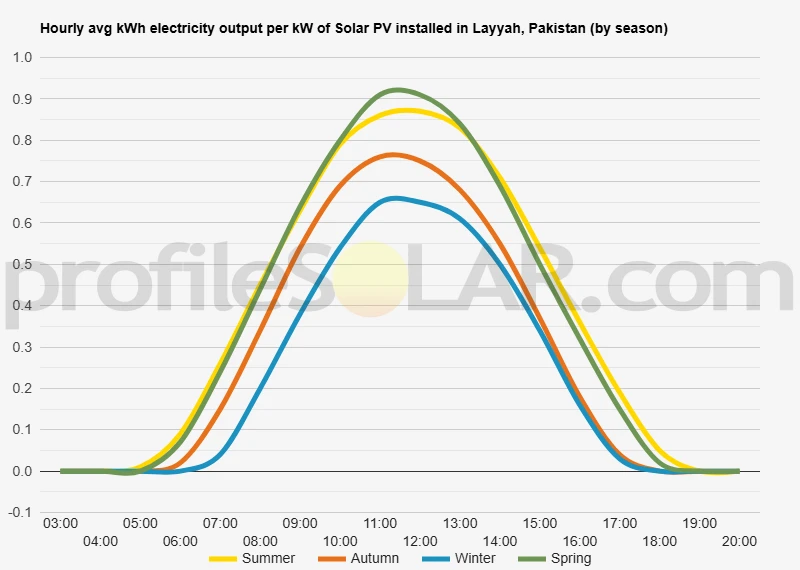

Solar output per kW of installed solar PV by season in Layyah

Seasonal solar PV output for Latitude: 30.7771, Longitude: 70.9306 (Layyah, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Layyah, Pakistan

To maximize your solar PV system's energy output in Layyah, Pakistan (Lat/Long 30.7771, 70.9306) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Layyah, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Layyah, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° South in Summer	36° South in Autumn	46° South in Winter	24° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Layyah, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Layyah, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Layyah, Pakistan

The topography around Layyah, Pakistan, is characterized by a predominantly flat and arid landscape. Located in the southern part of Punjab province, Layyah sits in the Thal Desert region, which is known for its sandy plains and sparse vegetation. The area is part of the Indus River floodplain, with the river itself flowing to the west of Layyah. The terrain in and around Layyah is generally level, with only slight variations in elevation. This flat landscape stretches for miles in all directions, broken occasionally by small sand dunes and scattered shrubs. The soil is primarily sandy and alluvial, deposited over centuries by the Indus River and its tributaries. To the east of Layyah, the landscape gradually transitions into the Thal Desert proper, where the terrain becomes more undulating with larger sand dunes. However, the immediate vicinity of Layyah remains relatively flat, making it suitable for agriculture where irrigation is available.

Suitability for Large-Scale Solar PV

The topography and climate of the Layyah region make it highly suitable for large-scale solar photovoltaic (PV) installations. Several factors contribute to this suitability: Firstly, the flat terrain around Layyah provides an ideal setting for solar farms. The lack of significant elevation changes means that large areas can be easily developed without the need for extensive land preparation or terracing. This flat landscape also minimizes shading issues between solar panels, allowing for optimal arrangement and spacing of the arrays. Secondly, the region experiences high levels of solar radiation throughout the year. The arid climate and generally clear skies result in abundant sunshine, which is crucial for maximizing solar energy production. The Thal Desert area to the east of Layyah is particularly well-suited for solar PV installations due to its vast, open spaces and minimal cloud cover. Thirdly, the sandy soil typical of the region is generally stable and well-draining, which is beneficial for the construction and maintenance of solar installations. However, proper foundation design would be necessary to account for the sandy conditions and potential for dust accumulation on panels. Areas to the east and southeast of Layyah, extending into the Thal Desert, would be most suited for large-scale solar PV projects. These areas offer expansive, uninterrupted spaces with minimal competing land uses. Additionally, the slightly elevated and drier desert terrain may experience less flooding risk compared to areas closer to the Indus River. It's worth noting that while the topography is favorable, developers would need to consider factors such as grid connectivity, water availability for panel cleaning, and potential environmental impacts on the desert ecosystem when planning large-scale solar projects in this region.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
