The location in Malakand, Khyber Pakhtunkhwa, Pakistan (34.5645, 71.9343) offers a promising opportunity for solar PV energy generation throughout the year. Situated in the Northern Sub Tropics, this area experiences varying levels of solar productivity across different seasons.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive daily output of 7.81 kWh per kW of installed solar capacity. Spring follows closely, generating 6.72 kWh/day. Autumn sees a moderate decline to 5.27 kWh/day, while winter experiences the lowest output at 3.92 kWh/day. These figures indicate that solar energy production in Malakand is most efficient from late spring through early autumn. During this period, longer daylight hours and more direct sunlight contribute to higher energy yields. However, even in winter, the region still maintains a reasonable level of solar productivity.

Optimal Panel Installation

For fixed panel installations in Malakand, Khyber Pakhtunkhwa, the ideal tilt angle to maximize year-round solar production is 30 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental Considerations

While Malakand's location is generally favorable for solar energy production, there are some environmental factors to consider: 1. Dust and air pollution: The region can experience dust storms and air pollution, which may accumulate on solar panels, reducing their efficiency. 2. Seasonal temperature variations: Extreme heat in summer and cold in winter can affect panel performance. To mitigate these issues, regular cleaning and maintenance of solar panels is crucial. Installing panels with a slight tilt can help with natural cleaning during rainfall. Additionally, using high-quality, temperature-resistant panels can help maintain efficiency across seasonal temperature changes. In conclusion, Malakand's location offers good potential for solar PV energy generation, with particularly strong performance in summer and spring. While some environmental challenges exist, they can be effectively managed with proper installation and maintenance practices.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

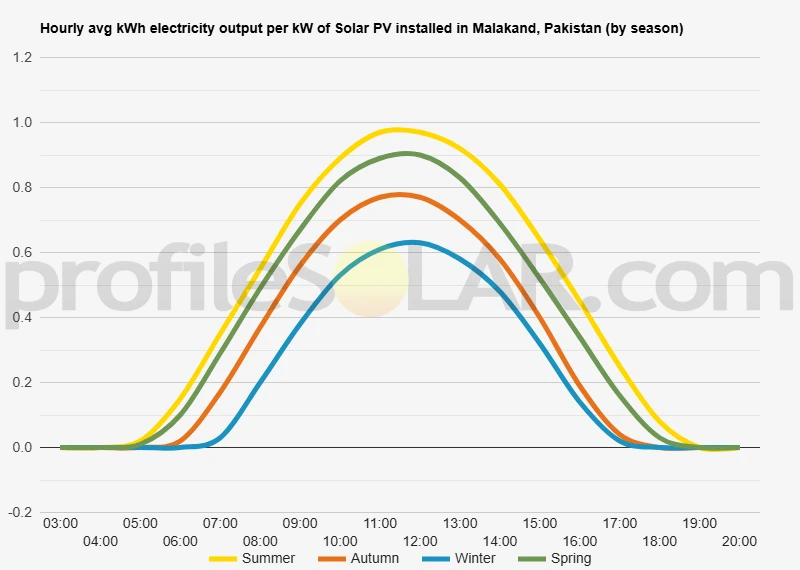

Solar output per kW of installed solar PV by season in Malakand

Seasonal solar PV output for Latitude: 34.5645, Longitude: 71.9343 (Malakand, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Malakand, Pakistan

To maximize your solar PV system's energy output in Malakand, Pakistan (Lat/Long 34.5645, 71.9343) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Malakand, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Malakand, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° South in Summer	40° South in Autumn	50° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Malakand, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Malakand, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Malakand, Pakistan

The topography around Malakand, Pakistan, is characterized by a diverse and rugged landscape. Located in the northwestern part of the country, this region is part of the Hindu Kush mountain range, which extends from central Afghanistan into northern Pakistan. The area surrounding Malakand features a mix of steep mountains, rolling hills, and narrow valleys. The terrain in this region is generally mountainous, with elevations ranging from around 1,000 meters to over 3,000 meters above sea level. The Swat River flows through the area, carving out valleys and creating fertile plains in some parts. The mountains are often covered with forests, particularly at higher elevations, while the lower slopes and valleys may have a mix of vegetation and agricultural land.

Solar PV Potential

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would typically be found in the broader valleys and relatively flat areas within the region. These areas offer more space for extensive solar panel arrays and are generally easier to access for construction and maintenance purposes. The Swat Valley, located to the north of Malakand, could potentially offer suitable sites for solar PV projects. While parts of the valley are narrow and steep, there are wider sections with gentler slopes that could accommodate large-scale installations. Additionally, areas to the south and southeast of Malakand, where the terrain begins to flatten out towards the Peshawar Valley, might provide favorable conditions for solar farms. It's important to note that while the mountainous terrain can present challenges for large-scale solar projects, it also offers some advantages. The higher elevations can provide clearer skies and potentially more intense solar radiation. However, careful site selection would be necessary to avoid areas prone to landslides or excessive shading from nearby peaks. Any large-scale solar PV project in this region would need to consider not only the topography but also factors such as local climate conditions, proximity to power infrastructure, and environmental impact. Given the complex terrain, a thorough site-specific assessment would be crucial to identify the most suitable locations for solar energy development in the vicinity of Malakand.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
