Solar Energy Potential in Mandi Bahauddin, Punjab, Pakistan

Mandi Bahauddin, Punjab, located in the Northern Sub Tropics of Pakistan, offers a promising location for solar energy generation. The city's geographical position at 32.4567°N, 73.4788°E provides favorable conditions for harnessing solar power throughout the year, albeit with seasonal variations. The solar energy potential in Mandi Bahauddin fluctuates across the four meteorological seasons. Summer stands out as the most productive period, with an impressive daily output of 6.85 kWh per kW of installed solar capacity. Spring follows closely behind, generating 6.66 kWh/day. These seasons offer optimal conditions for solar energy production due to longer daylight hours and higher sun angles. Autumn sees a moderate decline in solar output, producing 5.10 kWh/day. Winter experiences the lowest generation at 3.78 kWh/day, primarily due to shorter days and lower sun angles. Despite this seasonal dip, the region still maintains a respectable solar energy potential even during the cooler months.

Optimizing Solar Panel Installation

To maximize year-round solar energy production in Mandi Bahauddin, Punjab, fixed solar panels should be tilted at an angle of 29 degrees facing South. This optimal angle ensures the panels capture the most sunlight throughout the year, accounting for the Earth's elliptical orbit and the city's specific latitude.

Environmental and Weather Considerations

While Mandi Bahauddin generally offers favorable conditions for solar energy production, there are some environmental factors to consider: 1. Dust and air pollution: The region can experience dust storms and air pollution, which may accumulate on solar panels, reducing their efficiency. 2. Monsoon season: Heavy rainfall during the monsoon months (July to September) can temporarily decrease solar output. To mitigate these challenges, consider implementing the following preventative measures:

• Install automated cleaning systems or schedule regular manual cleaning of solar panels to remove dust and debris.
• Use high-quality, weather-resistant solar panels that can withstand occasional heavy rainfall and strong winds.
• Implement a slight increase in panel tilt during the monsoon season to facilitate natural cleaning by rainwater.

By addressing these factors and optimizing panel placement, Mandi Bahauddin can effectively harness its solar potential, contributing to a more sustainable energy future for the region.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

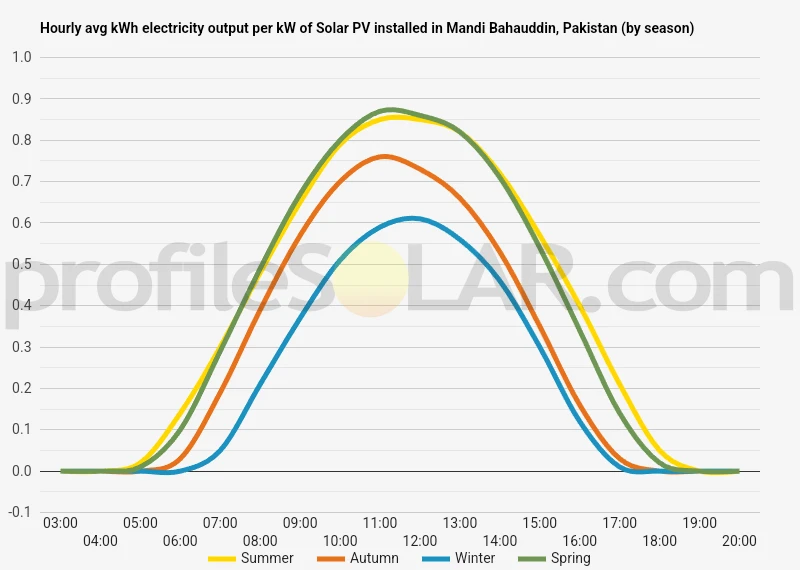

Solar output per kW of installed solar PV by season in Mandi Bahauddin

Seasonal solar PV output for Latitude: 32.4567, Longitude: 73.4788 (Mandi Bahauddin, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Mandi Bahauddin, Pakistan

To maximize your solar PV system's energy output in Mandi Bahauddin, Pakistan (Lat/Long 32.4567, 73.4788) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mandi Bahauddin, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mandi Bahauddin, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	38° South in Autumn	47° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mandi Bahauddin, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mandi Bahauddin, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mandi Bahauddin, Pakistan

The area around Mandi Bahauddin, Pakistan, is characterized by a relatively flat topography typical of the Punjab region. This city is situated in the heart of the Chaj Doab, which is the land between the Chenab and Jhelum rivers. The terrain is predominantly a fertile alluvial plain, created over millennia by the deposits of these rivers.

The landscape surrounding Mandi Bahauddin is mostly agricultural, with vast stretches of cultivated fields extending in all directions. The elevation is generally low, with only slight variations in height across the region. There are no significant mountains or hills in the immediate vicinity, which contributes to the area's suitability for agriculture.

To the north and east of Mandi Bahauddin, the land gradually rises towards the foothills of the Himalayas, but this change in elevation is very gradual and occurs over a large distance. To the south and west, the terrain remains consistently flat, merging into the greater Indus River plain.

Regarding areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, several factors make the region around Mandi Bahauddin potentially favorable:

The flat terrain to the south and west of the city would be ideal for solar farms. These areas receive ample sunlight throughout the year and have minimal obstructions that could cast shadows on solar panels. The lack of significant elevation changes also makes construction and maintenance of solar installations easier and more cost-effective.

Uncultivated or less productive agricultural lands in the vicinity could be repurposed for solar energy production. This would be particularly suitable in areas where soil quality or water availability limits agricultural productivity.

Regions closer to the existing power infrastructure would be advantageous for connecting new solar installations to the grid. Areas near major roads or transmission lines could reduce the costs associated with transporting equipment and connecting to the power network.

However, it's important to note that the final selection of sites for large-scale solar PV would require detailed environmental and feasibility studies. Factors such as local climate conditions, land ownership, proximity to populated areas, and potential environmental impacts would all need to be carefully considered before implementing any large-scale solar projects in the region.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
