Mandi Burewala, Punjab, Pakistan, located in the Northern Sub Tropics at coordinates 30.1619, 72.6761, presents a generally favorable environment for solar PV energy generation throughout the year. This location experiences significant seasonal variations in solar energy production, which is typical for regions at this latitude.

Seasonal Solar Energy Production

Solar energy production in Mandi Burewala peaks during the spring and summer months. Spring offers the highest output at 6.68 kWh per day for each kW of installed solar capacity, closely followed by summer at 6.51 kWh/day. These seasons provide excellent conditions for solar energy generation due to longer daylight hours and more direct sunlight. Autumn sees a moderate decrease in production, with an average of 4.92 kWh/day. While this represents a noticeable drop from the peak seasons, it still offers reasonable energy output. Winter experiences the lowest production levels, with an average of 3.58 kWh/day. This reduction is due to shorter daylight hours and the sun's lower position in the sky, resulting in less direct sunlight reaching the solar panels.

Optimal Panel Installation

To maximize year-round solar energy production in Mandi Burewala, Punjab, fixed solar panels should be installed at a tilt angle of 27 degrees facing south. This angle is calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the location's latitude and seasonal variations in the sun's position.

Environmental Considerations

While Mandi Burewala generally offers good conditions for solar energy production, there are some environmental factors to consider: 1. Dust and air pollution: The region can experience dusty conditions, particularly during dry seasons. Regular cleaning of solar panels is essential to maintain optimal efficiency. 2. Monsoon season: Heavy rains during the monsoon season (typically July to September) can temporarily reduce solar output. Installing panels at the recommended angle helps with natural cleaning during rainfall. 3. High temperatures: Summer temperatures in the region can be quite high, which may slightly reduce panel efficiency. Choosing high-quality, heat-resistant panels and ensuring proper ventilation during installation can mitigate this issue. To address these factors, consider implementing the following preventative measures:

• Use self-cleaning or hydrophobic coatings on solar panels to reduce dust accumulation
• Install a robust mounting system to withstand potential strong winds during storms
• Implement a regular maintenance schedule, including panel cleaning and system checks
• Choose solar panels and inverters rated for high-temperature performance

By taking these precautions, solar installations in Mandi Burewala can maintain high levels of energy production throughout the year, capitalizing on the location's generally favorable conditions for solar PV generation.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

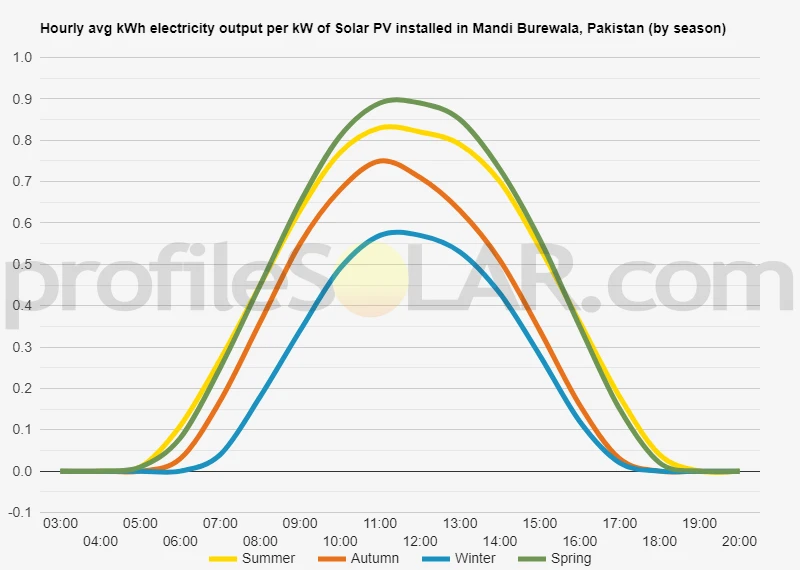

Solar output per kW of installed solar PV by season in Mandi Burewala

Seasonal solar PV output for Latitude: 30.1619, Longitude: 72.6761 (Mandi Burewala, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Mandi Burewala, Pakistan

To maximize your solar PV system's energy output in Mandi Burewala, Pakistan (Lat/Long 30.1619, 72.6761) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mandi Burewala, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mandi Burewala, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mandi Burewala, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mandi Burewala, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mandi Burewala, Pakistan

The area around Mandi Burewala, Pakistan, is characterized by a predominantly flat and low-lying landscape. This region is part of the vast Punjab Plain, which is known for its fertile agricultural lands. The topography is generally uniform, with very little variation in elevation across the area.

The terrain surrounding Mandi Burewala consists mainly of expansive agricultural fields, interspersed with small settlements and villages. The land is mostly level, with only slight undulations in some areas. This flat topography is a result of centuries of alluvial deposits from the Indus River and its tributaries, which have created a rich, fertile soil ideal for farming.

There are no significant natural elevations or depressions in the immediate vicinity of Mandi Burewala. The landscape is primarily devoted to agriculture, with crops such as cotton, wheat, and sugarcane being common in this region. The area is crisscrossed by a network of irrigation canals and drainage systems, which are vital for supporting the agricultural activities in this semi-arid climate.

Regarding areas suitable for large-scale solar PV installations, the flat terrain surrounding Mandi Burewala offers several advantages. The most suitable locations for solar farms would be found in the open agricultural lands that surround the city. These areas provide ample space and unobstructed access to sunlight, which are crucial factors for efficient solar energy production.

Specifically, the lands to the north and south of Mandi Burewala would be particularly well-suited for solar PV projects. These areas tend to have fewer settlements and larger contiguous plots of land, which would allow for the development of extensive solar arrays without significant topographical challenges or the need for major land alterations.

It's important to note that while the flat terrain is advantageous for solar installations, careful consideration must be given to factors such as soil stability, potential for flooding, and proximity to existing power infrastructure. Additionally, the impact on local agriculture and land use patterns should be taken into account when planning any large-scale solar projects in this predominantly agricultural region.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
