Mehrabpur, Sindh, Pakistan, situated in the Northern Sub Tropics, offers a promising location for solar energy generation. With its geographical coordinates at 27.0955° N latitude and 68.431° E longitude, this area receives substantial sunlight throughout the year, making it suitable for solar photovoltaic (PV) installations.

The solar energy potential in Mehrabpur varies across seasons, with spring and summer being the most productive periods. During spring, solar panels can generate an impressive 7.21 kWh per day for each kilowatt of installed capacity. Summer follows closely, with a daily output of 6.92 kWh. Autumn sees a slight decrease in production, yielding 5.43 kWh per day, while winter experiences the lowest output at 4.54 kWh per day.

For those considering fixed panel installations in Mehrabpur, Sindh, the ideal tilt angle to maximize year-round solar production is 24 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, taking into account the Earth's elliptical orbit and the location's specific latitude.

Environmental and Weather Factors

While Mehrabpur generally offers favorable conditions for solar energy production, there are some environmental and weather factors to consider:

1. Dust and sandstorms: The region's arid climate can lead to dust accumulation on solar panels, potentially reducing their efficiency. Regular cleaning and maintenance of the panels can mitigate this issue.

2. High temperatures: Extreme heat during summer months may slightly decrease panel efficiency. Choosing heat-resistant panels and ensuring proper ventilation during installation can help maintain optimal performance.

3. Monsoon season: Although not as severe as in other parts of Pakistan, Mehrabpur may experience some rainfall during the monsoon season. Proper waterproofing and drainage systems should be incorporated into the solar installation design.

To address these factors, implementing a robust cleaning schedule, using dust-resistant coatings on panels, and installing panels at the recommended tilt angle can significantly enhance energy production and system longevity. Additionally, selecting high-quality, weather-resistant equipment suitable for the local climate will ensure optimal performance throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

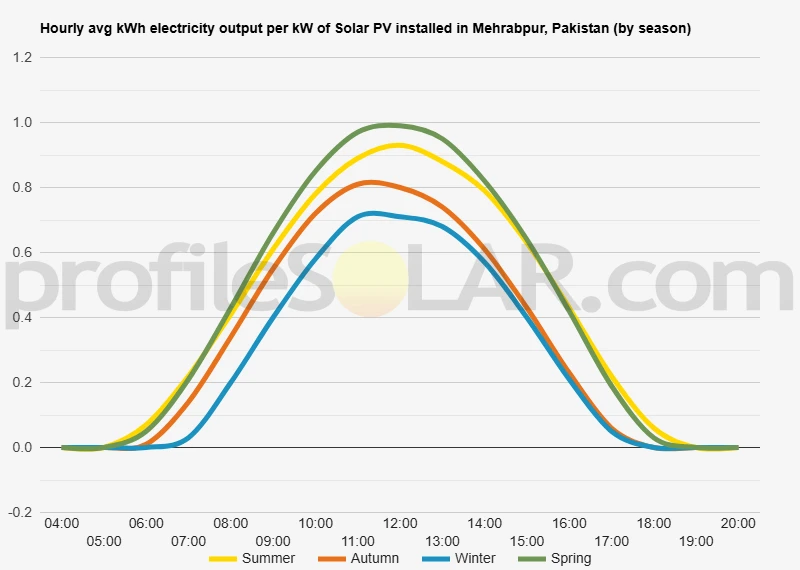

Solar output per kW of installed solar PV by season in Mehrabpur

Seasonal solar PV output for Latitude: 27.0955, Longitude: 68.431 (Mehrabpur, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° South in Mehrabpur, Pakistan

To maximize your solar PV system's energy output in Mehrabpur, Pakistan (Lat/Long 27.0955, 68.431) throughout the year, you should tilt your panels at an angle of 24° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mehrabpur, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mehrabpur, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	32° South in Autumn	42° South in Winter	20° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mehrabpur, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mehrabpur, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mehrabpur, Pakistan

The topography around Mehrabpur, Pakistan, is characterized by flat, arid plains typical of the Sindh province. This region is part of the Indus River Valley, with the landscape dominated by expansive alluvial plains formed by centuries of sediment deposition from the Indus River and its tributaries. The terrain is predominantly level, with minimal elevation changes across vast stretches of land. The area surrounding Mehrabpur is largely agricultural, with scattered settlements and small towns dotting the landscape. The flat terrain is intersected by a network of irrigation canals, which bring water from the Indus River to support farming activities in this otherwise dry region. Vegetation is sparse outside of cultivated areas, consisting mainly of drought-resistant shrubs and grasses adapted to the semi-arid climate.

Suitability for Large-Scale Solar PV

The topographical features of the Mehrabpur area make it highly suitable for large-scale solar photovoltaic (PV) installations. Several factors contribute to its potential as an ideal location for solar energy projects: Firstly, the flat terrain provides ample space for the installation of extensive solar panel arrays without the need for significant land preparation or grading. This reduces construction costs and simplifies the installation process. Secondly, the region experiences high levels of solar radiation throughout the year due to its geographical location and generally clear skies. This ensures consistent and efficient energy production from solar PV systems. The areas most suited for large-scale solar PV installations would be the undeveloped, non-agricultural lands surrounding Mehrabpur. These areas offer large, uninterrupted spaces that can accommodate vast solar farms without interfering with existing agricultural activities or settlements. Additionally, regions slightly elevated from the flood-prone areas near the Indus River would be preferable to minimize the risk of flooding and ensure the longevity of the solar installations. While the entire area is relatively flat, even slight elevations can provide an advantage in this regard. It's worth noting that while the topography is favorable, other factors such as proximity to existing power infrastructure, road access, and local land use regulations would also need to be considered when selecting specific sites for solar PV projects in the Mehrabpur area.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
