Mirpur Mathelo, Sindh, Pakistan, situated in the Northern Sub Tropics, presents a promising location for solar PV energy generation. This site, with coordinates 28.0266° N, 69.5456° E, experiences varying levels of solar energy production throughout the year.

Seasonal Solar Production

The location demonstrates strong solar potential, with peak production occurring during the spring and summer months. In spring, the average daily output reaches an impressive 7.25 kWh per kW of installed solar capacity. Summer follows closely with 7.12 kWh/day. Autumn sees a moderate decrease to 5.39 kWh/day, while winter experiences the lowest output at 4.44 kWh/day.

Optimal Panel Installation

For fixed panel installations in Mirpur Mathelo, Sindh, the ideal tilt angle to maximize year-round solar production is 25 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and the location's specific latitude.

Environmental Considerations

While Mirpur Mathelo offers favorable conditions for solar energy production, there are some environmental factors to consider:

• Dust and sand: The region's arid climate can lead to dust accumulation on solar panels, potentially reducing efficiency.
• High temperatures: Extreme heat during summer months may slightly decrease panel efficiency.

Preventative Measures

To mitigate these challenges and ensure optimal energy production, consider implementing the following measures:

1. Regular cleaning: Establish a routine cleaning schedule to remove dust and sand from panel surfaces.
2. Cooling systems: Install cooling mechanisms or choose heat-resistant panels to maintain efficiency during hot periods.
3. Robust mounting: Use sturdy mounting systems to protect panels from potential dust storms or strong winds.

Overall, Mirpur Mathelo's location offers excellent potential for solar PV energy generation, with high output levels throughout most of the year. By addressing the minor environmental challenges, this site can be an ideal location for sustainable energy production.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

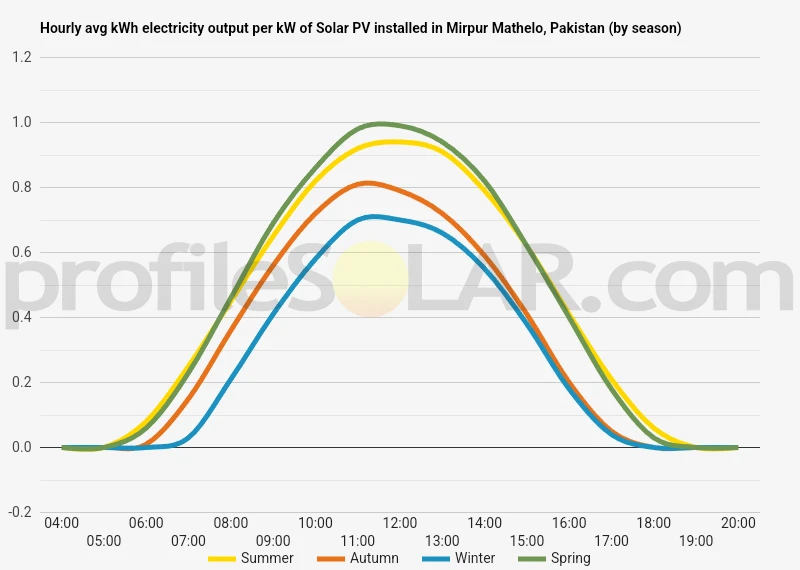

Solar output per kW of installed solar PV by season in Mirpur Mathelo

Seasonal solar PV output for Latitude: 28.0266, Longitude: 69.5456 (Mirpur Mathelo, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° South in Mirpur Mathelo, Pakistan

To maximize your solar PV system's energy output in Mirpur Mathelo, Pakistan (Lat/Long 28.0266, 69.5456) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mirpur Mathelo, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mirpur Mathelo, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	33° South in Autumn	43° South in Winter	21° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mirpur Mathelo, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mirpur Mathelo, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mirpur Mathelo, Pakistan

The area surrounding Mirpur Mathelo in Pakistan is characterized by a predominantly flat and arid landscape. This region, located in the southern part of the country, is part of the vast Indus Plain. The topography is generally uniform, with minimal elevation changes across the area. The terrain consists mostly of sandy and alluvial soils, shaped by the ancient flow of the Indus River and its tributaries. To the west of Mirpur Mathelo, the landscape gradually transitions into the Thar Desert, where sand dunes become more prominent. However, in the immediate vicinity of the town, the land remains relatively level, with occasional gentle undulations. The flat nature of the terrain is interrupted only by scattered small hillocks and low-lying depressions that may collect water during the rainy season.

Potential for Solar PV Development

The topographical features of the region around Mirpur Mathelo make it highly suitable for large-scale solar photovoltaic (PV) installations. Several factors contribute to its potential: Firstly, the flat terrain provides an ideal setting for the construction of extensive solar arrays. The absence of significant slopes or elevation changes simplifies the installation process and reduces the need for costly land preparation. Secondly, the area experiences high levels of solar radiation throughout the year, owing to its geographical location and typically clear skies. This abundance of sunlight is crucial for maximizing the efficiency and output of solar PV systems. The regions to the west and southwest of Mirpur Mathelo, where the landscape transitions into the Thar Desert, are particularly well-suited for large-scale solar projects. These areas offer vast expanses of unused land with minimal vegetation, reducing potential conflicts with agricultural activities or human settlements. Additionally, the sandy soil composition in these areas can be advantageous for solar PV installations, as it provides good drainage and stability for mounting structures. However, developers would need to implement measures to mitigate dust accumulation on solar panels, which can be a challenge in this arid environment. While the entire region shows promise for solar energy development, areas within a 50-100 kilometer radius of Mirpur Mathelo that are not currently used for agriculture or habitation would be most suitable for large-scale solar PV projects. These locations would benefit from the existing infrastructure of the town while minimizing disruption to local communities and ecosystems.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
