Solar PV Analysis of Muridke, Pakistan
Muridke, Punjab, Pakistan, located in the Northern Sub Tropics, is a good location for generating energy via solar photovoltaic (PV) systems year-round. The amount of electricity that can be produced from every kilowatt (kW) of installed solar varies by season. In summer and spring, you can expect around 6.33 and 6.51 kilowatt-hours (kWh) per day respectively; these are the best times for solar energy production because of longer daylight hours and more direct sunlight. Autumn provides slightly less at around 4.82 kWh/day while winter has the lowest output with about 3.55 kWh/day due to shorter days and lower sun angle.
For a fixed panel installation at this location, tilting panels at an angle of 28 degrees towards the South is ideal to maximize total year-round production from solar PV.
However, there might be local factors that could affect solar production in Muridke like environmental conditions or topography issues that could obstruct sunlight reaching the panels such as buildings or trees; weather patterns like monsoon rains or dust storms could also reduce sunlight exposure.
To ensure greater energy production despite these challenges:
1) Panels should be installed where they won't be shaded by nearby structures or vegetation.
2) Regular cleaning and maintenance of panels will help keep them efficient especially during dusty conditions.
3) Using high-quality panels with better performance under different light conditions can also help maintain good output even during less sunny periods.
4) If possible, adjustable tilt mounting systems could be used to change panel angles throughout the year to match sun's position for optimal exposure.
Remember though that these measures would only make sense if such impediments were significant enough to affect your system's performance in a major way.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Pakistan by location

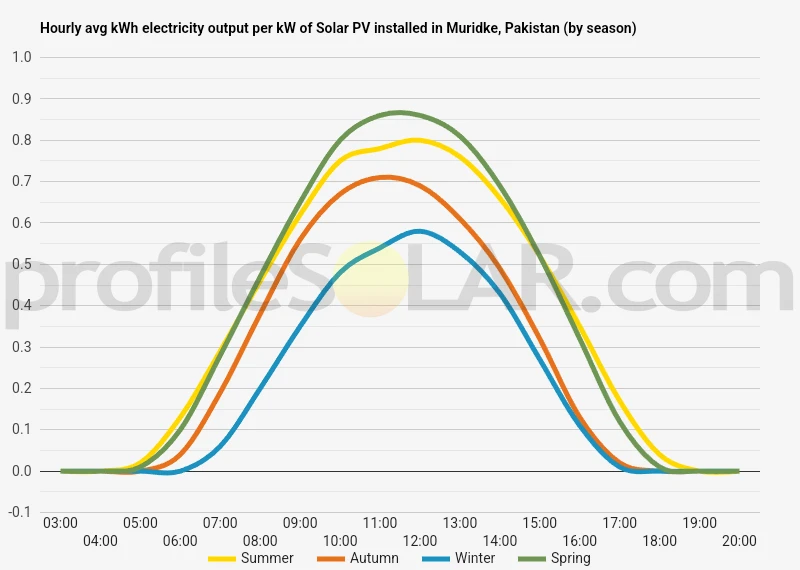

Solar output per kW of installed solar PV by season in Muridke
Seasonal solar PV output for Latitude: 31.8, Longitude: 74.2602 (Muridke, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 28° South in Muridke, Pakistan
To maximize your solar PV system's energy output in Muridke, Pakistan (Lat/Long 31.8, 74.2602) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Muridke, Pakistan
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Muridke, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 16° South in Summer | 37° South in Autumn | 47° South in Winter | 25° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Muridke, Pakistan
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Muridke, Pakistan.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Muridke, Pakistan
Muridke, Pakistan is located in the Punjab province and is characterized by a generally flat terrain. The area is primarily agricultural with vast open fields. The region experiences a semi-arid climate with hot summers and cold winters.
Regarding solar PV installations, the flat open fields around Muridke could be ideal for large-scale solar farms due to the abundance of sunlight throughout the year. However, it's important to consider factors like land use policies, local community acceptance, proximity to transmission lines or substations for grid connectivity, and potential environmental impacts before setting up such projects.
Additionally, areas towards south of Muridke like Kala Shah Kaku and Ferozewala can also be considered as they have similar topographical and climatic conditions suitable for solar power generation.
Pakistan solar PV Stats as a country
Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Pakistan?
Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.
Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
Citation Guide
Article Details for Citation
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Friday 15th of March 2024
Last Updated: Monday 21st of July 2025
