Solar PV Analysis of Muzaffargarh, Pakistan
Muzaffargarh, Punjab, Pakistan, located in the Northern Sub Tropics, is a fairly good location for generating energy through solar photovoltaic (PV) panels year-round. The amount of electricity that can be produced varies with each season: you can expect to generate around 6.67 kilowatt-hours (kWh) per day in summer and 6.74 kWh/day in spring per kilowatt of installed solar panel. Autumn and winter produce slightly less at approximately 5.04 kWh/day and 3.94 kWh/day respectively.
The most ideal times to generate solar power at this location are during the spring and summer months when sunlight exposure is highest.
To get the most out of your solar panels throughout the year, they should be fixed at an angle facing south by 27 degrees; this will maximize their exposure to sunlight over all four seasons.
However, there may be some local factors that could hinder solar production here - like dust storms or heavy monsoon rains which are common in this region - as these conditions could block sunlight from reaching the panels or damage them over time.
To prevent such issues from reducing your energy output:
1) Regular cleaning: Dust accumulation on panels can reduce their efficiency significantly; hence regular cleaning is essential especially after dust storms.
2) Protective measures: During installation consider using durable materials or protective casings that can withstand harsh weather conditions like heavy rains or high winds.
3) Appropriate placement: Place your panels where they're least likely to be affected by environmental hazards such as trees which might shed leaves onto your panel or tall structures that might shade them.
4) Regular maintenance checks: This helps detect any potential problems early enough before they affect performance drastically.
In conclusion, while Muzaffargarh has good potential for solar energy generation it's important to take into account local environmental challenges when installing and maintaining your PV system to ensure optimal performance year-round.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 53 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Pakistan by location
Become the exclusive sponsor for Muzaffargarh, Pakistan!

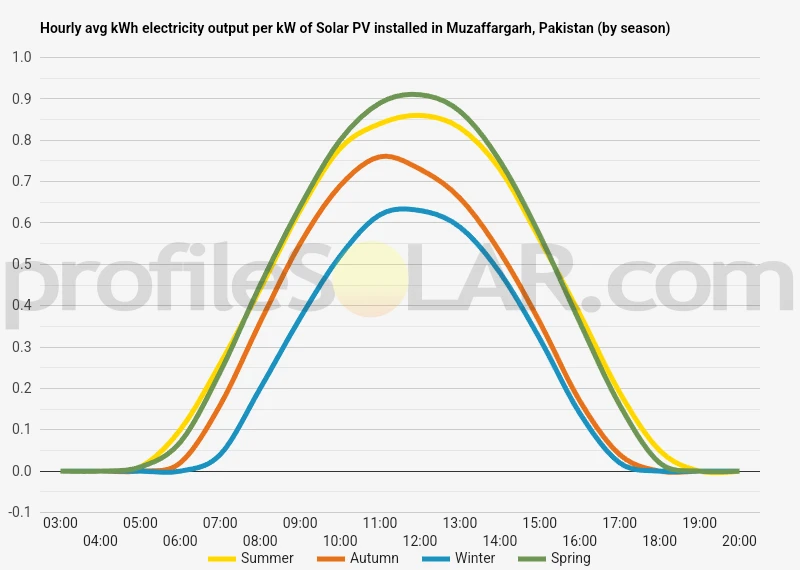

Solar output per kW of installed solar PV by season in Muzaffargarh
Seasonal solar PV output for Latitude: 30.0208, Longitude: 71.0968 (Muzaffargarh, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 27° South in Muzaffargarh, Pakistan
To maximize your solar PV system's energy output in Muzaffargarh, Pakistan (Lat/Long 30.0208, 71.0968) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Muzaffargarh, Pakistan
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Muzaffargarh, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 14° South in Summer | 35° South in Autumn | 45° South in Winter | 23° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Topography for solar PV around Muzaffargarh, Pakistan
Muzaffargarh is located in the southwestern part of Punjab province, Pakistan. The topography is primarily flat and low-lying, typical for a region within the Indus River plains. The area experiences a hot desert climate with very little rainfall throughout the year.
Considering these factors, large scale solar PV installations would be well suited to this region due to its high levels of sunlight and vast flat lands which are ideal for setting up solar panels. Specifically, barren or unused agricultural land could be potentially used for such projects without interfering with local habitats or farmland.
However, it's important to note that while geographical and climatic conditions may be favorable, other factors such as local infrastructure, accessibility, proximity to power grids and local regulations also play a crucial role in determining the feasibility of large-scale solar projects. Detailed site-specific assessments would therefore be necessary before proceeding with any project planning.
Pakistan solar PV Stats as a country
Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Pakistan?
Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.
Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
