New Mirpur City, Azad Jammu and Kashmir, Pakistan represents a moderately favorable location for year-round solar PV energy generation, with significant seasonal variations that make it better suited for solar production during certain times of the year.

Seasonal Solar Performance

The location experiences strong seasonal differences in solar energy output. Summer provides the highest generation potential at 6.80 kWh per day per kW of installed solar capacity, making it the peak production season. Spring follows closely with 6.37 kWh per day per kW, offering nearly comparable performance to summer months. Autumn sees a notable decline to 4.92 kWh per day per kW, while winter represents the least productive period with only 3.70 kWh per day per kW. This means winter production is nearly half that of summer, creating substantial seasonal variation that must be considered in system planning.

Optimal Panel Configuration

For maximum year-round energy production at New Mirpur City, Azad Jammu and Kashmir, solar panels should be installed at a fixed tilt angle of 29 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting for daily solar potential.

Environmental and Weather Challenges

Several local factors could significantly impact solar production at this Northern Sub Tropical location:

Monsoon Season Impact

Pakistan's monsoon season typically brings heavy cloud cover and frequent rainfall, which can substantially reduce solar irradiance during portions of the summer and early autumn months. While the seasonal averages account for this, extended cloudy periods can create temporary drops in production.

Dust and Particulate Matter

The region experiences significant dust accumulation, particularly during dry periods and due to agricultural activities in surrounding areas. Dust buildup on solar panels can reduce efficiency by 15-25% if left uncleaned, representing one of the most significant ongoing maintenance challenges.

Temperature Effects

High summer temperatures, while providing strong solar irradiance, can reduce panel efficiency as photovoltaic cells become less efficient at elevated temperatures. This creates a trade-off between available sunlight and panel performance.

Preventative Measures for Optimal Performance

• Implement regular cleaning schedules, particularly during dusty periods, using appropriate cleaning methods that won't scratch panel surfaces
• Install panels with adequate spacing and ventilation underneath to promote air circulation and reduce heat buildup
• Consider anti-soiling coatings on panels to reduce dust adhesion and make cleaning more effective
• Design systems with appropriate drainage to handle monsoon rainfall without water pooling around equipment
• Use weather-resistant mounting systems and electrical components rated for the local climate conditions

Overall Assessment

New Mirpur City offers reasonable solar potential, particularly during spring and summer months when production peaks. The location's main strength lies in its strong warm-season performance, though the significant winter decline and environmental challenges require careful system design and maintenance planning to achieve optimal long-term energy production.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

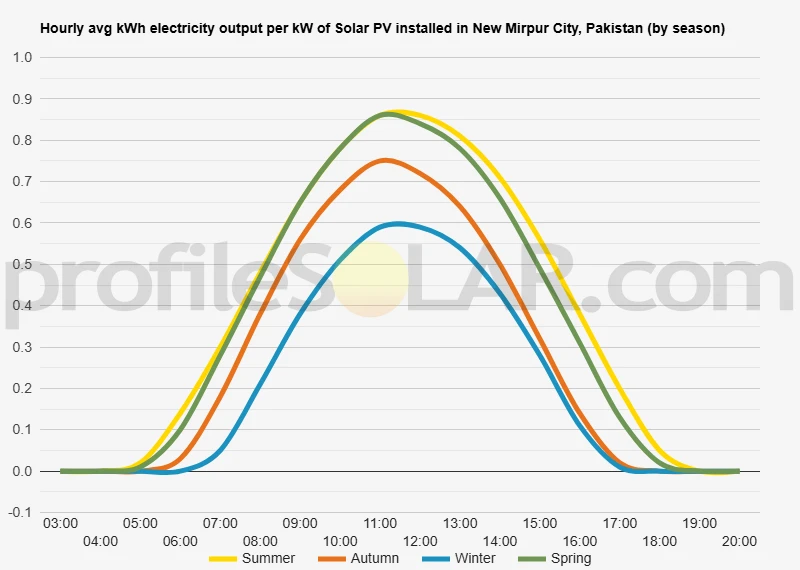

Solar output per kW of installed solar PV by season in New Mirpur City

Seasonal solar PV output for Latitude: 33.1478, Longitude: 73.7519 (New Mirpur City, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in New Mirpur City, Pakistan

To maximize your solar PV system's energy output in New Mirpur City, Pakistan (Lat/Long 33.1478, 73.7519) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for New Mirpur City, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in New Mirpur City, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	38° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in New Mirpur City, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in New Mirpur City, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around New Mirpur City, Pakistan

Topographical Features of New Mirpur City

New Mirpur City is situated in the Mirpur District of Azad Jammu and Kashmir, positioned on the Pothohar Plateau at an elevation of approximately 450 meters above sea level. The city sits in a region characterized by rolling hills and undulating terrain typical of the Pothohar region. The landscape around New Mirpur features a series of gentle ridges and valleys, with the terrain gradually rising towards the northeast where it meets the foothills of the Himalayas. The area experiences a semi-arid to sub-humid climate with distinct seasonal variations. The topography is marked by weathered sandstone and limestone formations that create a relatively stable geological foundation. Small seasonal streams and nullahs flow through the valleys during the monsoon period, while the higher elevations remain relatively dry throughout most of the year. The region's elevation provides it with a moderate climate compared to the lower-lying areas of Punjab to the south. The surrounding hills create natural windbreaks and influence local weather patterns, with the terrain offering good drainage during the wet season. Agricultural terracing is common on the gentler slopes, while steeper areas often remain uncultivated scrubland.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around New Mirpur City would be the relatively flat to gently sloping areas on the plateau surfaces and broader valley floors. These areas offer several advantages including stable ground conditions, minimal shading from surrounding terrain, and easier access for construction and maintenance activities. The southern and southwestern approaches to the city present particularly favorable conditions, where the plateau extends into broader, less dissected terrain. These areas typically feature gentle gradients of less than five degrees, making them ideal for solar panel installation without requiring extensive grading or terracing. The geological stability of the sandstone bedrock in these areas also provides excellent foundation conditions for large solar arrays. Areas along the main transportation corridors would be especially attractive for solar development due to existing infrastructure access. The terrain between New Mirpur and the older Mirpur area offers expanses of relatively unused land with good solar exposure potential. These locations benefit from being positioned on higher ground with minimal obstruction from surrounding hills. The eastern approaches to the city, while slightly more undulating, still contain suitable sites where broader valley floors provide adequate space for solar installations. These areas would require more careful site selection to avoid the steeper valley sides and seasonal drainage channels, but still offer viable options for solar development. Agricultural areas on the gentler slopes could potentially accommodate agrivoltaic systems, where solar panels are installed above crops, though this would require careful consideration of local farming practices and land use patterns. The key factors favoring these locations include their stable geology, moderate elevation, and position on the plateau away from the more dramatically varied terrain found closer to the Himalayan foothills.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
