Solar PV Analysis of Renala Khurd, Pakistan
Renala Khurd, Punjab, Pakistan, is a pretty good place for generating solar energy throughout the year due to its location in the Northern Sub Tropics. The amount of electricity you can produce from each kilowatt of installed solar power varies by season. In summer and spring, you can expect to generate about 6.43 kWh/day and 6.60 kWh/day respectively per kW of installed solar power which are the highest rates across all seasons. Autumn has a slightly lower rate at 4.82 kWh/day while winter produces the least at 3.51kWh/day.
So if you're looking to maximize your solar energy production, installing your panels around spring or summer would be ideal because these seasons have longer daylight hours and higher sun intensity compared to autumn and winter.
For a fixed panel installation in Renala Khurd, Punjab, it's recommended that panels are tilted towards south at an angle of 27 degrees as this will allow them to capture more sunlight throughout the year thereby maximizing total annual production from solar PV.
As with any location though, there could be local factors that might affect your ability to generate solar energy efficiently such as dust storms or heavy cloud cover during certain times of the year which could block sunlight reaching your panels.
One way to mitigate this would be regular cleaning and maintenance of your panels ensuring they are free from dust or debris so they can effectively absorb sunlight for power generation. Also consider using durable materials for panel construction that can withstand harsh weather conditions when needed.
In conclusion, Renala Khurd is generally well-suited for harnessing solar energy with high output especially during summer and spring but potential environmental challenges like dust storms should also be taken into account when planning your installation.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Pakistan by location

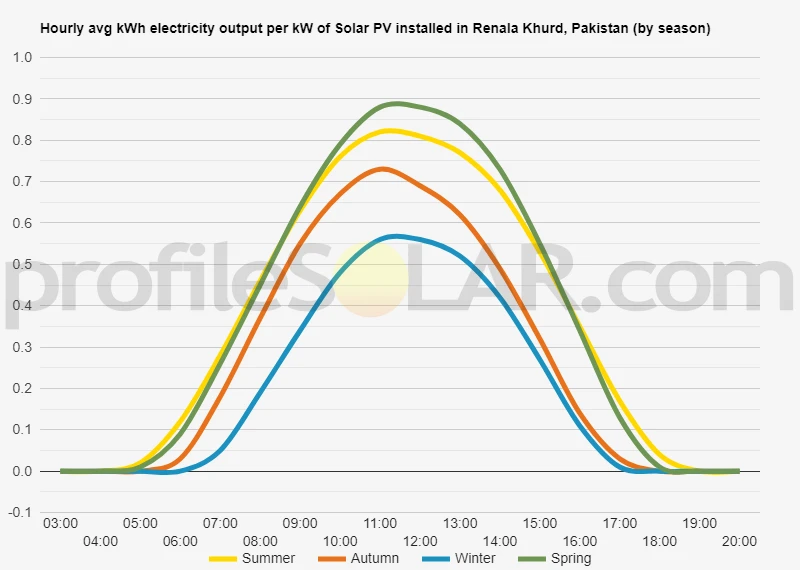

Solar output per kW of installed solar PV by season in Renala Khurd
Seasonal solar PV output for Latitude: 30.7419, Longitude: 73.8187 (Renala Khurd, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 27° South in Renala Khurd, Pakistan
To maximize your solar PV system's energy output in Renala Khurd, Pakistan (Lat/Long 30.7419, 73.8187) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Renala Khurd, Pakistan
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Renala Khurd, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 15° South in Summer | 36° South in Autumn | 46° South in Winter | 24° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Renala Khurd, Pakistan
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Renala Khurd, Pakistan.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Renala Khurd, Pakistan
Renala Khurd is located in the Okara District of Punjab, Pakistan. The topography around Renala Khurd is mostly flat and plain, as it is part of the Punjab plains. This region has fertile soil due to its location near the River Ravi.
Given this flat terrain and abundant sunlight throughout most parts of the year, large-scale solar PV systems could potentially be installed anywhere in the region that isn't currently being used for agriculture or other purposes. However, specific suitability would have to be determined by a detailed site assessment considering factors such as land availability, solar irradiance levels, proximity to transmission lines or substations for grid connection etc.
The desert areas further south may also be suitable for large scale solar installations due to high sun exposure and less likelihood of competing land use issues. But again feasibility would need careful assessment including infrastructure needs like road access and power transmission facilities.
Please note that while technically feasible these projects require significant investment and careful planning considering local environmental impact as well as social aspects such as potential displacement of communities or disruption to local livelihoods.
Pakistan solar PV Stats as a country
Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Pakistan?
Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.
Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
