Solar PV Analysis of Shekhupura, Pakistan
The location at Shekhupura, Punjab, Pakistan is a fairly good spot for generating energy through solar power year-round. It's not perfect, but it can produce a decent amount of electricity.
In simple terms, the amount of electricity you can get from each kilowatt (kW) of installed solar panels changes with the seasons. In summer and spring, you'll get more than 6 kilowatt-hours (kWh) per day from each kW of installed solar panels. That's pretty good! In autumn and winter though, that number drops to less than 5 kWh/day in Autumn and around 3.5 kWh/day in Winter.
So if you're thinking about when to best use your solar energy at this location - spring and summer are your best bets as they will generate more power due to longer daylight hours.
Now let's talk about how the panels should be set up: ideally, they should be tilted towards the South at an angle of 28 degrees. This position is found to maximize total year-round production from the solar PV system here.
There could be some local factors that might affect how much energy you can get from your panels like dust storms or heavy cloud cover which are common in this region and could reduce exposure to sunlight thus affecting output efficiency.
To prevent these issues as much as possible when installing a system there:
1) Consider investing in technology like automatic panel cleaning systems or protective coatings for the panels that help resist dust accumulation.
2) Install them where they won't easily be shaded by nearby structures or trees.
3) Regular maintenance checks would also ensure optimal performance despite these environmental challenges.
Remember though - while Shekhupura isn't exactly perfect for all-year round high-output solar energy generation because its output does dip quite significantly during winter months especially; it still has potential for substantial overall yearly output which makes it worthwhile considering if planning on installing a PV system there!
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Pakistan by location

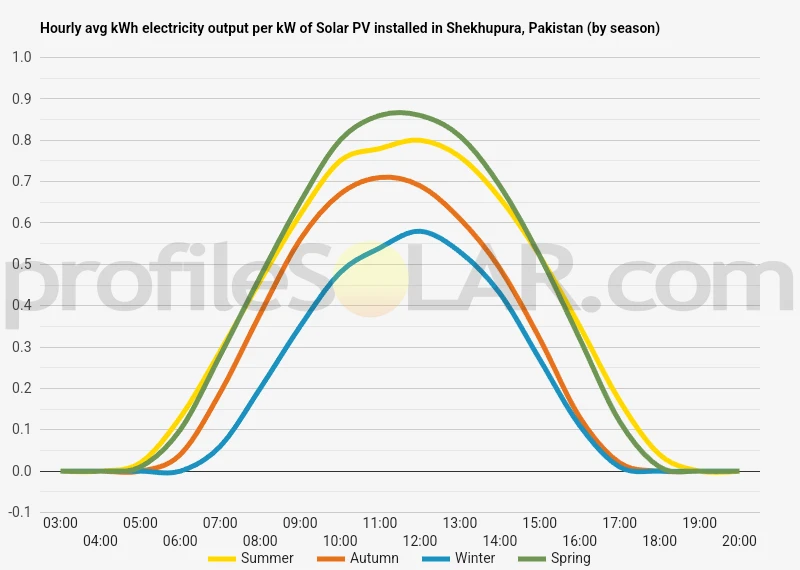

Solar output per kW of installed solar PV by season in Shekhupura
Seasonal solar PV output for Latitude: 31.6934, Longitude: 74.1859 (Shekhupura, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 28° South in Shekhupura, Pakistan
To maximize your solar PV system's energy output in Shekhupura, Pakistan (Lat/Long 31.6934, 74.1859) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Shekhupura, Pakistan
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Shekhupura, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 15° South in Summer | 37° South in Autumn | 47° South in Winter | 25° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Shekhupura, Pakistan
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Shekhupura, Pakistan.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Shekhupura, Pakistan
Shekhupura, Pakistan is located in the province of Punjab which is characterized by its fertile plains. The topography around Shekhupura is mostly flat and low-lying, with some small hills and ridges. The region has a semi-arid climate with hot summers and cool winters.
For large-scale solar PV installations, areas that are flat or gently sloping are ideal to maximize sun exposure and minimize installation difficulties. Considering this, the plains surrounding Shekhupura would be most suitable for such installations.
However, other factors must also be considered when choosing a location for large-scale solar PV. These include proximity to transmission lines or substations (to feed the power into the grid), availability of land (which might involve negotiations with landowners), environmental impact assessments (to ensure minimal disruption to local ecosystems), as well as sunlight intensity and duration throughout the year.
In terms of sunlight exposure specifically in Pakistan, regions like Southern Punjab (including Multan) receive higher amount of sunlight compared to Northern Punjab where Shekhupura lies. However, given adequate technology even areas receiving less optimal sunlight can effectively generate solar energy.
It's advisable that any decision should be based on detailed feasibility studies conducted by experts in renewable energy infrastructure planning.
Pakistan solar PV Stats as a country
Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in Pakistan?
Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.
Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
