Solar Energy Potential in Sibi, Balochistan, Pakistan

Sibi, Balochistan, Pakistan, located at 29.5497° N, 67.8827° E in the Northern Sub Tropics, offers promising conditions for solar energy generation throughout the year. The location experiences substantial solar radiation that can be effectively harnessed through photovoltaic (PV) systems. The seasonal solar energy production patterns in Sibi show significant variation. Summer months yield the highest output at 7.77 kWh per day for each kilowatt of installed capacity. Spring follows closely with 7.36 kWh/day per kW. The production decreases in autumn to 5.85 kWh/day per kW, while winter represents the lowest generation period with 4.84 kWh/day per kW. For fixed solar panel installations in Sibi, Balochistan, the ideal angle to maximize year-round energy production is 27 degrees tilted toward the South. This optimal angle balances the seasonal variations in the sun's position to capture the maximum possible solar radiation throughout the year.

Environmental and Weather Challenges

Several significant environmental factors could impact solar production in Sibi:

• Extreme heat: Sibi is known for experiencing some of Pakistan's highest temperatures, which can reduce PV panel efficiency as they typically perform better in cooler conditions.
• Dust and sand: The semi-arid environment means frequent dust accumulation on panels, which can significantly reduce energy capture.
• Seasonal monsoon rains: These can bring both cloud cover that temporarily reduces output and beneficial panel cleaning.

Recommended Preventative Measures

To maximize solar energy generation in Sibi's challenging environment, several preventative measures should be considered: Installing panels with high temperature tolerance ratings will help maintain efficiency during extreme heat periods. Implementing regular cleaning schedules, potentially with automated cleaning systems, will address dust accumulation issues. Elevating panels sufficiently above ground level can minimize dust collection and improve airflow for cooling. Additionally, using microinverters or power optimizers can help maintain system performance when some panels are partially shaded or dirty. Incorporating weather-resistant components designed for harsh environments will ensure longevity and consistent performance throughout the year. With these measures in place, Sibi's abundant solar resource can be effectively utilized, with particular focus on maximizing the excellent summer and spring production periods while maintaining reasonable output during the less productive autumn and winter months.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

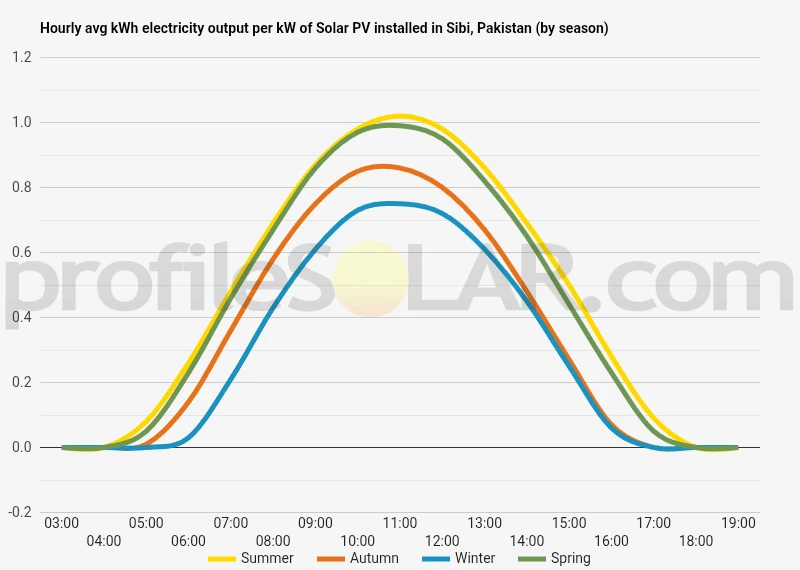

Solar output per kW of installed solar PV by season in Sibi

Seasonal solar PV output for Latitude: 29.5497, Longitude: 67.8827 (Sibi, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Sibi, Pakistan

To maximize your solar PV system's energy output in Sibi, Pakistan (Lat/Long 29.5497, 67.8827) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sibi, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sibi, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	35° South in Autumn	45° South in Winter	22° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sibi, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sibi, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sibi, Pakistan

The topography around Sibi, Pakistan presents a striking contrast between flat plains and mountainous terrain. Located in Balochistan province, Sibi sits in a basin area at approximately 130 meters above sea level. The immediate vicinity of Sibi consists of relatively flat alluvial plains, formed by the Nari River which flows nearby. These plains gradually transition to more rugged terrain as one moves away from the city center. To the east and northeast of Sibi lie the expansive Kachhi Plains, which extend toward the Indus River Valley. These plains feature minimal elevation changes and sparse vegetation, typical of the semi-arid climate that dominates the region. The soil composition tends to be sandy and clay-like, with limited natural vegetation apart from drought-resistant shrubs and occasional patches of scrubland.

Surrounding Mountain Ranges

In stark contrast to the plains, the western and northwestern periphery of Sibi is dominated by the impressive Sulaiman Mountain Range. These mountains rise dramatically from the plains, with some peaks reaching elevations of over 3,000 meters. The mountains feature steep slopes, numerous ridges, and valleys carved by seasonal water flows. The topography becomes increasingly complex and elevated as one moves westward into the heart of Balochistan's mountainous terrain. To the south and southwest, the landscape transitions into the northern edges of the Kirthar Range, another significant mountain system that forms a natural boundary between Balochistan and Sindh provinces. This area is characterized by rugged hills, rocky outcrops, and narrow valleys.

Potential Areas for Solar PV Development

The extensive flat plains to the east and southeast of Sibi offer particularly favorable conditions for large-scale solar photovoltaic installations. These areas combine several advantageous features: minimal topographical variation, limited agricultural use, and good solar exposure due to the lack of natural shading from mountains or tall vegetation. The Kachhi Plains specifically present vast tracts of underutilized land that could accommodate substantial solar arrays without requiring significant terrain modification. Secondary potential areas include the gently sloping foothills at the transition zones between the plains and mountains. These areas, while not as ideal as the completely flat plains, still offer reasonable conditions for solar development with some additional engineering considerations for panel placement and orientation to maximize exposure. The mountainous regions to the west and northwest, while receiving good solar radiation, present significant challenges for large-scale installations due to their steep slopes, difficult access, and complex terrain. These factors would substantially increase construction costs and complicate maintenance operations, making them less suitable for extensive solar development despite the excellent solar resource available. The climate of the region, characterized by minimal cloud cover throughout most of the year, enhances the suitability of the entire area for solar energy generation. However, the occasional dust storms that sweep across the plains may necessitate regular cleaning regimes for any installed panels to maintain optimal efficiency.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
