Sohawa, Punjab, Pakistan, situated in the Northern Sub Tropics at latitude 32.3331 and longitude 74.3495, offers a generally favorable location for solar PV energy generation, though with significant seasonal variations.

Seasonal Solar Production

The solar energy potential in Sohawa varies considerably throughout the year. Summer proves to be the most productive season, generating approximately 6.84kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind with 6.68kWh/day per installed kilowatt. Production drops moderately in autumn to 5.09kWh/day, while winter experiences the lowest output at just 3.71kWh/day per kilowatt of installed capacity.

This seasonal pattern indicates that Sohawa has excellent solar generation potential for roughly half the year (spring and summer), good potential in autumn, but more limited production during winter months.

Optimal Panel Installation

For fixed solar panel installations in Sohawa, Punjab, the ideal tilt angle to maximize year-round energy production is 29 degrees facing South. This specific angle has been calculated by analyzing daily solar elevation patterns at this latitude, weighted by the solar potential throughout the year.

Environmental Challenges

Several environmental factors could potentially impact solar production in Sohawa:

• Dust and particulate matter: The region can experience dust storms, particularly during drier months, which may coat panels and reduce efficiency
• Monsoon cloud cover: The summer monsoon season (typically July-September) can bring extended periods of cloud cover, temporarily reducing generation despite it being an otherwise productive season
• High summer temperatures: Excessive heat can actually reduce solar panel efficiency, as most panels operate most efficiently at moderate temperatures

Preventative Measures

To maximize solar energy production in Sohawa despite these challenges, several preventative measures are recommended:

• Regular cleaning schedule: Implementing automated or manual cleaning systems to remove dust accumulation, especially before and after dust storm seasons
• Temperature management: Using panels with lower temperature coefficients and ensuring adequate airflow beneath the panels to mitigate efficiency losses during hot summer days
• Slight seasonal adjustment: While 29 degrees south is optimal year-round, a dual-season adjustment (slightly steeper in winter, slightly flatter in summer) could increase overall production if adjustable mounting systems are feasible
• Consider microinverters or power optimizers: These can help minimize the impact of partial shading from dust or clouds on overall system performance

With proper installation and maintenance practices addressing these regional factors, Sohawa can be considered a good to very good location for solar PV deployment, with particularly strong generation potential from March through October.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

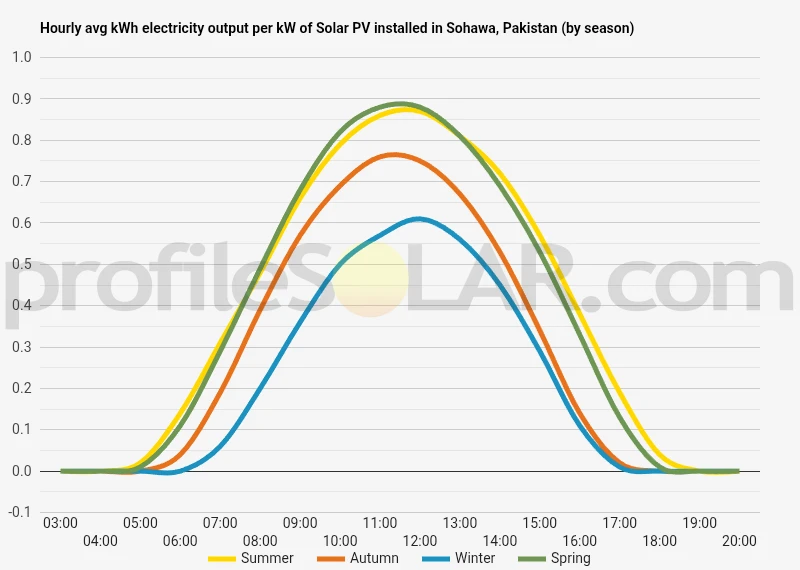

Solar output per kW of installed solar PV by season in Sohawa

Seasonal solar PV output for Latitude: 32.3331, Longitude: 74.3495 (Sohawa, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Sohawa, Pakistan

To maximize your solar PV system's energy output in Sohawa, Pakistan (Lat/Long 32.3331, 74.3495) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Sohawa, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Sohawa, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	38° South in Autumn	47° South in Winter	25° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Sohawa, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Sohawa, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Sohawa, Pakistan

The landscape around Sohawa, Pakistan presents a diverse topographical profile characteristic of the upper Punjab region. Located in the Jhelum District, Sohawa sits in a transitional zone between the flat plains of southern Punjab and the more elevated terrain that gradually rises toward the foothills of the Himalayas to the north. The immediate vicinity features gently rolling plains interspersed with modest hills and shallow valleys, creating a slightly undulating terrain rather than the completely flat expanse found further south. The elevation of Sohawa is approximately 500 meters above sea level, placing it higher than many other Punjab settlements. This moderate elevation contributes to its somewhat distinct climate compared to lower-lying areas of the province. The terrain gradually rises as one moves northward toward the Potohar Plateau, while to the south, the landscape transitions into the more typical alluvial plains of Punjab. Several seasonal streams and minor watercourses traverse the region, creating natural drainage channels that have shaped the local topography over centuries. During monsoon seasons, these waterways can become quite active, though they often remain dry during other parts of the year. This hydrological pattern has contributed to the formation of small valleys and depressions throughout the area.

Soil and Surface Characteristics

The soil composition around Sohawa varies but generally consists of loamy and clay-loam mixtures, with some areas featuring more rocky or sandy substrates. The region exhibits moderate vegetation cover, primarily consisting of scrub forests, grasslands, and agricultural plots where the terrain and soil conditions permit cultivation. In terms of land use, the area demonstrates a mixture of agricultural activities on suitable plains, while the more elevated or rocky sections remain less intensively developed. This varied land use pattern reflects the adaptation of human settlement to the natural topographical constraints of the region.

Solar PV Suitability Assessment

For large-scale solar photovoltaic development, the most promising areas near Sohawa would be the relatively level plateaus and gently sloping plains that feature minimal shadowing from surrounding terrain. Specifically, the slightly elevated flat areas to the south and southeast of Sohawa offer excellent potential for solar installations due to their unobstructed exposure and stable ground conditions. These locations benefit from good drainage characteristics, reducing flood risk during monsoon seasons, while also providing sufficient flat space for extensive array deployment. The moderately elevated terrain in these areas also experiences less dust accumulation compared to the lower-lying regions further south, which can be advantageous for maintaining optimal panel efficiency. The northwestern sections, where the terrain becomes more variable with increasing elevation toward the Potohar Plateau, present greater challenges for large-scale installations due to the more pronounced slopes and irregular surface features. These areas would require more extensive grading and preparation, potentially increasing development costs. Areas with stable soil composition and minimal risk of erosion would be particularly advantageous for solar infrastructure development. The regions to the east and southeast of Sohawa, where the terrain stabilizes into more consistent plains, demonstrate these favorable characteristics while also offering good accessibility to existing transportation networks, facilitating both construction and maintenance operations. In conclusion, while much of the terrain around Sohawa could theoretically support solar development, the optimal locations would be the moderately elevated plateaus and plains to the south and southeast, where the combination of stable, level ground, good drainage, and reduced dust exposure creates favorable conditions for large-scale photovoltaic installations.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
