Solar Energy Potential in Ubauro, Sindh, Pakistan

Ubauro, Sindh, Pakistan, located in the Northern Sub Tropics, offers a promising location for solar PV energy generation throughout the year. The seasonal electricity output shows significant potential across all seasons, with particularly strong performance during spring and summer months. The solar energy production varies seasonally, with spring showing the highest output at 7.25 kWh per day for each kilowatt of installed capacity. Summer follows closely with 7.12 kWh/day. Autumn sees a moderate decrease to 5.39 kWh/day, while winter represents the lowest production period with 4.44 kWh/day per kilowatt installed.

Optimal Installation Angle

For fixed panel installations in Ubauro, Sindh, the ideal tilt angle to maximize year-round solar energy production is 25 degrees facing South. This angle has been carefully calculated to optimize solar capture throughout the year, accounting for the Earth's elliptical orbit and Ubauro's specific latitude.

Environmental Challenges and Mitigation Strategies

Several environmental factors in Ubauro may impact solar energy production:

• Dust and sand accumulation: The semi-arid climate means panels can quickly become covered with dust, reducing efficiency by up to 30%. Regular cleaning schedules and possibly automated cleaning systems are recommended.
• High summer temperatures: Temperatures frequently exceeding 40°C can reduce panel efficiency. Installing panels with sufficient air circulation beneath them and using temperature-resistant components can help mitigate this issue.
• Monsoon season impacts: Though limited in this region, occasional heavy rainfall and increased humidity during monsoon periods can affect output. Ensuring proper drainage and using humidity-resistant components is advisable.
• Potential for sandstorms: Protective measures such as windbreaks and robust mounting systems can prevent damage during occasional sandstorms.

With proper installation techniques and maintenance protocols, these challenges can be effectively managed, allowing for excellent solar energy production at this location, particularly during the spring and summer months when output exceeds 7 kWh per day per kilowatt installed.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

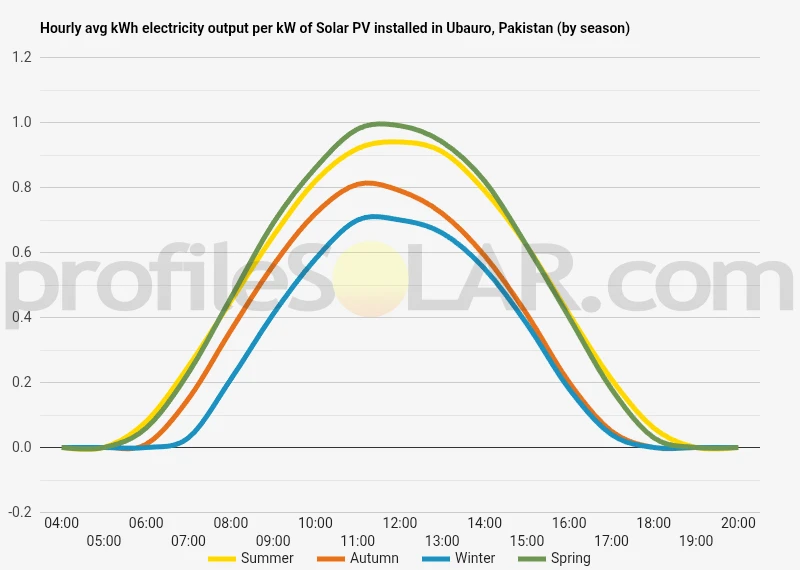

Solar output per kW of installed solar PV by season in Ubauro

Seasonal solar PV output for Latitude: 28.1704, Longitude: 69.7315 (Ubauro, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° South in Ubauro, Pakistan

To maximize your solar PV system's energy output in Ubauro, Pakistan (Lat/Long 28.1704, 69.7315) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ubauro, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ubauro, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	33° South in Autumn	43° South in Winter	21° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ubauro, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ubauro, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ubauro, Pakistan

The topography surrounding Ubauro, Pakistan presents a predominantly flat landscape characteristic of the lower Indus River basin. Situated in northern Sindh province, Ubauro lies in a vast alluvial plain that extends from the foothills of the Sulaiman Range in the west to the Thar Desert in the east. The elevation in this region is relatively low, generally ranging between 50-100 meters above sea level, with minimal variation across the immediate vicinity.

Geographical Features

The terrain around Ubauro is marked by its flatness and wide-open spaces, largely consisting of fertile alluvial soils deposited by the Indus River and its tributaries over millennia. This flat topography has historically supported extensive agriculture, particularly cotton and wheat cultivation, which remains the primary land use in the region. The landscape features sparse natural vegetation outside of cultivated areas, predominantly consisting of drought-resistant scrub and grasses. To the east of Ubauro, the terrain gradually transitions into the fringes of the Thar Desert, where the landscape becomes more arid with scattered sand dunes and less fertile soil. Westward, the land remains predominantly flat before eventually rising toward the distant Sulaiman Range, which forms part of the larger mountain systems that separate the Indus Valley from the Iranian Plateau.

Solar Potential Areas

The flat terrain surrounding Ubauro presents several advantageous areas for large-scale solar photovoltaic installations. The most suitable locations would be found in the non-agricultural lands extending eastward toward the Thar Desert periphery. These areas combine several favorable characteristics: The uncultivated lands between Ubauro and the desert proper offer extensive, uninterrupted spaces where large solar arrays could be installed without competing with valuable agricultural production. The gradually increasing aridity moving eastward means these lands have limited alternative economic uses, making them ideal candidates for solar development. The flat topography eliminates concerns about shadowing or the need for extensive land grading, which would otherwise increase installation costs. This flatness also facilitates easier maintenance access throughout any solar facility. Additionally, the lands immediately south of Ubauro, particularly in areas where soil salinity has reduced agricultural productivity, present opportunities for solar development that could repurpose otherwise marginally productive land.

Topographical Considerations

While the flat terrain is generally advantageous, potential solar developers should note several topographical considerations specific to the region. The area experiences seasonal flooding during monsoon periods, particularly in depressions and areas close to irrigation canals that crisscross the region. Solar installations would need to incorporate appropriate drainage and elevate critical equipment to mitigate flood risks. The region also experiences dust storms, particularly in the pre-monsoon months, which can temporarily reduce solar panel efficiency. The flat, open landscape provides little natural protection against these weather events, so installations would benefit from appropriate dust mitigation strategies. The water table in areas closer to the Indus River and its canal systems tends to be relatively high, which could affect foundation design for solar mounting structures. Conversely, areas further east toward the desert fringe have a deeper water table but may present challenges related to soil stability in sandier soils. Overall, the expansive flat lands surrounding Ubauro, particularly those transitioning toward the Thar Desert in the east and southeast, offer substantial potential for large-scale solar PV development, combining favorable topography with minimal competition from other high-value land uses.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Pakistan? Please reach out to us and help us keep this information current. Thanks!
