Vehari, Punjab, Pakistan represents a highly favorable location for year-round solar photovoltaic energy generation. This Northern Sub-Tropical location at coordinates 30.0547°N, 72.3511°E demonstrates excellent solar potential throughout all seasons of the year.

Seasonal Solar Performance

The solar energy output data reveals strong performance across all seasons, with particularly impressive results during spring and summer months. Spring delivers the highest output at 6.66 kWh per day per kW of installed solar capacity, closely followed by summer at 6.49 kWh per day per kW. Even during the traditionally weaker winter months, the location still produces a respectable 3.54 kWh per day per kW, while autumn generates 4.89 kWh per day per kW.

Optimal Installation Configuration

For fixed panel installations at Vehari, Punjab, the ideal tilt angle to maximize total year-round solar production is 26 degrees facing south. This angle has been calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles according to daily photovoltaic potential using comprehensive solar irradiance data that accounts for Earth's elliptical orbit.

Peak Generation Periods

The data clearly shows that spring and summer represent the optimal periods for solar energy generation at this location, with output levels exceeding 6.4 kWh per day per kW. The transition seasons of autumn and winter still maintain reasonable production levels, making this location suitable for consistent year-round solar energy generation.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at Vehari and require consideration during installation planning. Dust accumulation presents the most significant challenge in this region. Pakistan's semi-arid climate and agricultural activities generate substantial airborne particles that can coat solar panels, reducing their efficiency by 15-25% if left unaddressed. The situation becomes particularly problematic during harvest seasons and periods of high wind activity. Monsoon weather patterns, typically occurring from July to September, bring heavy rainfall and increased humidity levels. While rain can help clean panels naturally, the associated cloud cover and atmospheric moisture can temporarily reduce solar irradiance. Additionally, the high humidity can accelerate corrosion of metal components if proper materials aren't selected. Extreme temperature variations also pose challenges. Summer temperatures can exceed 45°C (113°F), which reduces panel efficiency and stresses electrical components. Conversely, winter temperatures can drop significantly, creating thermal cycling stress on materials.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize energy production despite these environmental challenges:

• Install automated cleaning systems or schedule regular manual cleaning every 2-3 weeks during dry periods
• Use anti-reflective and hydrophobic coatings on panels to reduce dust adhesion and improve self-cleaning during rain
• Select corrosion-resistant mounting hardware made from marine-grade aluminum or galvanized steel
• Ensure adequate ventilation spacing beneath panels to promote cooling and reduce thermal stress
• Install surge protection devices to guard against lightning strikes during monsoon season

Proper drainage design around the installation site prevents water pooling during heavy rains, while strategic placement away from major dust sources like unpaved roads can minimize cleaning requirements. Using high-quality electrical components rated for extreme temperatures ensures reliable operation throughout the year's temperature variations. Despite these environmental considerations, Vehari's consistently strong solar output across all seasons makes it an excellent location for solar PV installations when proper planning and maintenance protocols are implemented.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 144 locations across Pakistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Pakistan by location

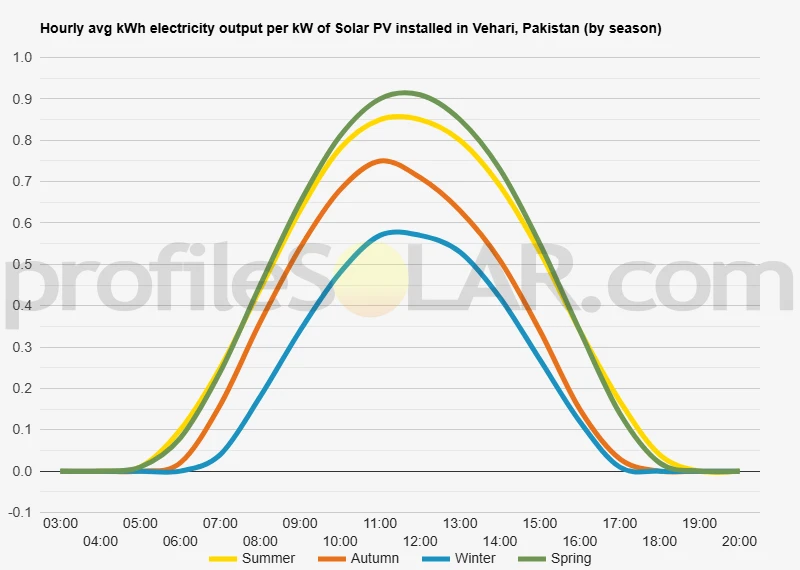

Solar output per kW of installed solar PV by season in Vehari

Seasonal solar PV output for Latitude: 30.0547, Longitude: 72.3511 (Vehari, Pakistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° South in Vehari, Pakistan

To maximize your solar PV system's energy output in Vehari, Pakistan (Lat/Long 30.0547, 72.3511) throughout the year, you should tilt your panels at an angle of 26° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Vehari, Pakistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Vehari, Pakistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Vehari, Pakistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Vehari, Pakistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Vehari, Pakistan

Topographical Features Around Vehari

The terrain surrounding Vehari in Punjab Province, Pakistan, is characterized by remarkably flat agricultural plains that extend across the broader Indus River basin. This region sits within the fertile alluvial deposits left by centuries of river activity, creating an almost pancake-flat landscape with minimal elevation changes across vast distances. The area forms part of the greater Punjab Plains, where gentle undulations are the most dramatic topographical features encountered. The landscape consists primarily of cultivated farmland interspersed with small rural settlements and irrigation channels. Ancient river channels and seasonal watercourses create subtle depressions in the otherwise uniform terrain, while occasional raised areas mark former riverbanks or accumulated sediment deposits. The region's flatness makes it ideal for mechanized agriculture, and the land has been extensively modified for crop production over many generations.

Drainage and Water Features

Several seasonal streams and irrigation canals crisscross the area, part of the extensive canal network that brings water from the Indus River system to agricultural areas. These waterways create minor topographical variations but generally follow the natural gradient of the land toward the southwest. During monsoon periods, temporary water accumulation can occur in lower-lying areas, though the overall drainage pattern remains consistent with the gentle regional slope. The presence of these water features creates a patchwork of slightly elevated areas along canal banks and former flood plains, contrasted with marginally lower agricultural fields. However, these elevation differences rarely exceed a few meters across considerable distances.

Optimal Areas for Large-Scale Solar Development

The extensive flat agricultural plains extending north and northeast of Vehari present excellent opportunities for large-scale solar photovoltaic installations. These areas offer minimal grading requirements and consistent terrain that would significantly reduce construction and maintenance costs. The relatively uniform elevation eliminates concerns about shading between solar panel arrays and provides optimal conditions for standardized mounting systems. Areas to the west and northwest of the city also demonstrate suitable characteristics, with broad expanses of level ground that could accommodate substantial solar farms. The existing agricultural land use means that large contiguous parcels are potentially available, which is essential for utility-scale solar development. The flat terrain would allow for efficient cable routing and maintenance access throughout solar installations. The southeastern areas, while also relatively flat, may present some limitations due to proximity to more densely populated agricultural communities and existing irrigation infrastructure. However, marginal agricultural lands in this direction could still provide viable options for solar development, particularly where soil quality or water access makes traditional farming less productive. Transportation access represents another advantage for solar development in this region, as the flat terrain has allowed for the construction of straight roads that could facilitate the movement of equipment and materials to potential solar sites. The absence of significant topographical barriers means that electrical transmission infrastructure could be developed efficiently to connect solar installations to the regional power grid.

Pakistan solar PV Stats as a country

Pakistan ranks 42nd in the world for cumulative solar PV capacity, with 1,083 total MW's of solar PV installed. Each year Pakistan is generating 6 Watts from solar PV per capita (Pakistan ranks 78th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Pakistan?

Yes, there are incentives for businesses wanting to install solar energy in Pakistan. The government of Pakistan has implemented a number of policies and initiatives to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has also set up a Renewable Energy Development Fund (REDF) which provides grants and loans to support renewable energy projects.
