Bacnotan, Ilocos, Philippines, situated in the tropics, offers a promising location for solar energy generation throughout the year. This coastal town in La Union province experiences consistent sunlight and seasonal patterns characterized more by wet and dry periods than traditional four-season cycles.

Solar Energy Potential

The solar energy potential in Bacnotan is relatively stable across the year, with some variations between seasons. Spring stands out as the most productive period, generating an impressive 6.98 kWh per day for each kilowatt of installed solar capacity. Summer and autumn yield similar outputs of 5.50 kWh/day and 5.45 kWh/day, respectively. Winter sees a slight dip but still maintains a respectable 5.12 kWh/day. These figures indicate that Bacnotan is well-suited for year-round solar energy production, with spring being the optimal season. The consistent output across other seasons ensures a reliable energy supply throughout the year.

Panel Installation Considerations

For fixed solar panel installations in Bacnotan, Ilocos, the ideal tilt angle to maximize year-round energy production is 16 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and Bacnotan's tropical latitude.

Environmental and Weather Factors

While Bacnotan's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. Typhoons: The Philippines is prone to tropical cyclones, which can potentially damage solar installations. 2. Heavy rainfall: The region experiences a distinct rainy season, which could temporarily reduce solar efficiency. To mitigate these risks, solar installations in Bacnotan should incorporate:

• Sturdy mounting systems designed to withstand high winds
• Quality waterproofing for all electrical components
• Regular maintenance to ensure optimal performance

Despite these challenges, with proper planning and installation techniques, Bacnotan remains an excellent location for harnessing solar energy year-round.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

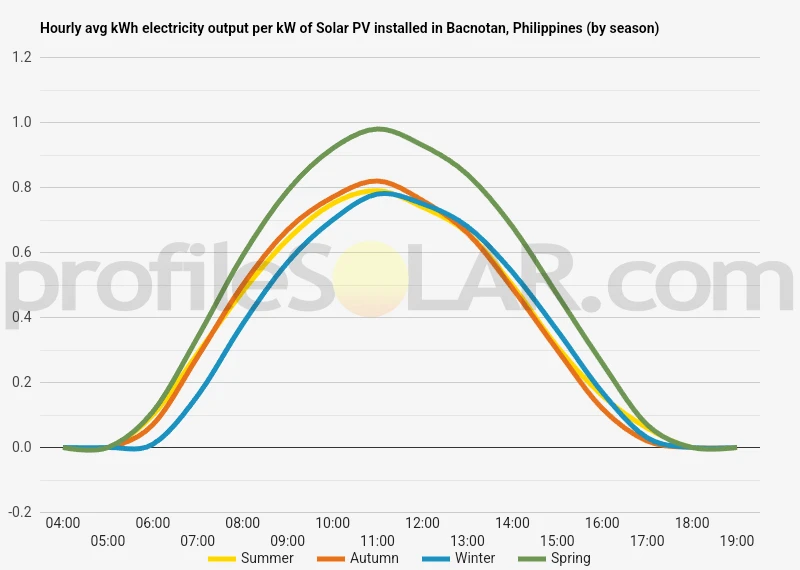

Solar output per kW of installed solar PV by season in Bacnotan

Seasonal solar PV output for Latitude: 16.7182, Longitude: 120.3469 (Bacnotan, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° South in Bacnotan, Philippines

To maximize your solar PV system's energy output in Bacnotan, Philippines (Lat/Long 16.7182, 120.3469) throughout the year, you should tilt your panels at an angle of 16° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bacnotan, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bacnotan, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° South in Summer	23° South in Autumn	32° South in Winter	10° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bacnotan, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bacnotan, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bacnotan, Philippines

The topography surrounding Bacnotan, Philippines, is characterized by a diverse landscape that includes coastal plains, rolling hills, and mountainous terrain. Situated on the western coast of Luzon Island, Bacnotan is nestled between the South China Sea to the west and the Cordillera Central mountain range to the east. The immediate vicinity of Bacnotan features a relatively flat coastal plain that gradually rises into gently rolling hills as one moves inland. This coastal area is dotted with agricultural lands, small settlements, and patches of tropical vegetation. As you travel eastward from the town, the terrain becomes increasingly hilly, with elevation gradually increasing. Further east, the landscape transitions into the foothills of the Cordillera Central mountains. These mountains, which form the backbone of northern Luzon, create a dramatic backdrop to the region. The slopes of these mountains are often covered in lush forests and feature numerous rivers and streams that flow down towards the coast.

Potential Areas for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would have ample sunlight exposure, relatively flat terrain, and good accessibility. The coastal plains and gently rolling hills to the east of Bacnotan present promising opportunities for solar PV development. These areas often have fewer obstructions to sunlight and could accommodate large arrays of solar panels. The relatively flat terrain would minimize the need for extensive land preparation and make installation and maintenance easier. Additionally, some of the elevated areas in the foothills, particularly those with south-facing slopes, could be suitable for solar farms. These locations might benefit from increased sun exposure and potentially cooler temperatures, which can improve the efficiency of solar panels. However, it's important to note that any large-scale solar PV project would need to carefully consider environmental impacts, land use regulations, and the interests of local communities. Areas of significant agricultural importance or ecological value should be avoided. Furthermore, the proximity to existing power infrastructure and the ability to connect to the grid would be crucial factors in determining the most suitable locations for solar PV development in the region around Bacnotan.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
