Baliuag, Central Luzon, Philippines presents an excellent location for year-round solar energy generation. Located in the tropics at coordinates 14.9588°N, 120.8966°E, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than significant variations in solar availability.

Solar Energy Production Potential

The solar energy output data for Baliuag shows strong performance across all seasons. Spring emerges as the peak solar generation period, producing an impressive 6.99 kWh per day per kW of installed solar capacity. Summer follows with 5.31 kWh/day per kW, while autumn generates 5.17 kWh/day per kW. Even during the lowest-producing season of winter, the location still delivers a respectable 5.02 kWh/day per kW of installed solar. This seasonal variation indicates that spring offers the optimal conditions for solar energy generation, likely coinciding with clearer skies and favorable atmospheric conditions. The relatively high production levels throughout the year make Baliuag an ideal location for consistent solar energy generation. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 14 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles, determining daily optimal panel positioning, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant factors in Baliuag can potentially impede solar energy production and require careful consideration during installation:

• Monsoon seasons and heavy rainfall: The Philippines experiences distinct wet seasons with intense rainfall that can reduce solar irradiance and create cloud cover
• Typhoons and severe weather: The region is prone to tropical storms and typhoons that can damage solar installations
• High humidity levels: Tropical humidity can affect panel efficiency and promote corrosion of electrical components
• Dust and debris accumulation: Tropical conditions can lead to faster buildup of organic matter, dust, and debris on panel surfaces

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented. Installing robust mounting systems designed to withstand high wind loads from typhoons is essential, along with using corrosion-resistant materials and proper sealing of electrical connections to combat humidity effects. Regular cleaning schedules become particularly important in this tropical environment to remove dust, organic debris, and any residue from heavy rains. Installing panels with appropriate drainage systems helps prevent water accumulation that could lead to efficiency losses or damage. Choosing high-quality panels with strong weather ratings and implementing proper grounding and surge protection systems will help ensure long-term reliability. Additionally, designing the installation with adequate spacing for air circulation can help mitigate the effects of high humidity and temperature on panel performance. Despite these environmental considerations, Baliuag's consistently high solar energy potential throughout the year makes it an excellent location for solar installations when proper planning and preventative measures are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

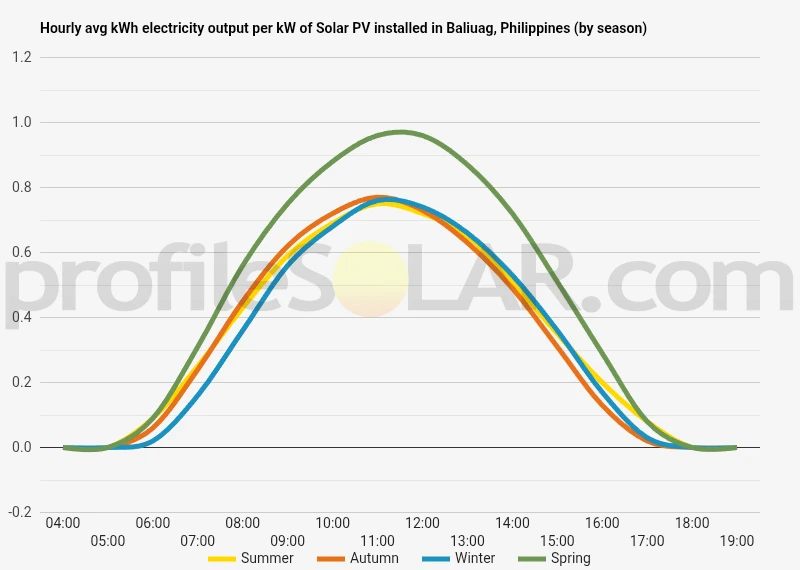

Solar output per kW of installed solar PV by season in Baliuag

Seasonal solar PV output for Latitude: 14.9588, Longitude: 120.8966 (Baliuag, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 14° South in Baliuag, Philippines

To maximize your solar PV system's energy output in Baliuag, Philippines (Lat/Long 14.9588, 120.8966) throughout the year, you should tilt your panels at an angle of 14° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Baliuag, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Baliuag, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 14° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	21° South in Autumn	30° South in Winter	8° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Baliuag, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Baliuag, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Baliuag, Philippines

Topographical Features of Baliuag and Surrounding Region

Baliuag sits within the Central Luzon Plain, one of the Philippines' most extensive lowland areas. This municipality in Bulacan province occupies relatively flat terrain that forms part of the broader Luzon Central Valley system. The landscape around Baliuag consists predominantly of gently rolling plains with minimal elevation changes, creating an expansive agricultural region that stretches across much of central Luzon.

The topography is characterized by fertile alluvial plains formed by centuries of sediment deposits from major river systems, including the nearby Angat River and its tributaries. These waterways have carved shallow valleys through the landscape, but the overall relief remains quite modest. The elevation in and around Baliuag typically ranges from 10 to 30 meters above sea level, with only gradual undulations across the terrain.

To the east, the landscape begins a gradual rise toward the foothills of the Sierra Madre mountain range, though these elevated areas remain at considerable distance from Baliuag itself. Westward, the plains continue toward Manila Bay, maintaining their flat character throughout most of Bulacan province. This consistent low-lying topography has made the region ideal for rice cultivation and other agricultural activities.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling terrain surrounding Baliuag presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie within the extensive plains that stretch in multiple directions from the municipality, particularly toward the southwest and northwest where the topography remains consistently level across large expanses.

Areas immediately southwest of Baliuag toward the municipalities of Plaridel and Pulilan offer particularly favorable conditions. These zones feature minimal slope variations and consist largely of open agricultural land with few significant obstructions. The flat nature of this terrain would minimize grading requirements and reduce installation costs while maximizing the efficiency of solar panel arrays.

The northwestern plains extending toward San Rafael and Angat also present strong potential for solar development. This region benefits from the same level topography while offering substantial contiguous land areas that could accommodate large-scale installations. The gentle nature of the landscape would allow for optimal panel orientation and spacing without significant terrain modifications.

Eastern areas toward San Ildefonso maintain favorable flat conditions for several kilometers before the land begins rising toward the distant mountain foothills. These eastern plains could support major solar installations while remaining far enough from elevated terrain to avoid any potential shading issues during different seasons.

The consistent low elevation and minimal topographical variation across the entire Central Luzon Plain around Baliuag means that drainage considerations would be straightforward to address, and the stable geological conditions would provide reliable foundations for solar infrastructure. The open nature of the agricultural landscape also suggests fewer complications from existing structures or significant vegetation that might interfere with solar installations.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
