Bantacan, Davao Region, Philippines, located in the tropics, offers a promising environment for solar energy generation throughout the year. This location benefits from consistent sunlight and seasons characterized more by wet and dry periods than traditional four-season cycles.

Solar Energy Production Potential

The solar energy output at Bantacan varies slightly across the meteorological seasons. Summer yields the highest production at 5.96 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 5.58 kWh/day, while autumn produces 5.32 kWh/day. Winter sees the lowest output at 4.58 kWh/day, but this is still a respectable amount compared to many other locations globally. The relatively small variation between seasons indicates that Bantacan is well-suited for year-round solar energy generation. The most productive months are likely to be during the dry season, typically from December to May, when clearer skies allow for maximum sunlight exposure.

Optimal Panel Installation

For fixed solar panel installations in Bantacan, Davao Region, the ideal tilt angle to maximize year-round production is 6 degrees facing South. This slight tilt helps optimize energy capture throughout the year, accounting for the location's proximity to the equator and the Earth's elliptical orbit.

Environmental Considerations

While Bantacan's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. Typhoons: The Philippines is prone to tropical cyclones, which can damage solar installations. 2. Heavy rainfall: The wet season may reduce solar output due to increased cloud cover and precipitation. To mitigate these risks, solar installations should incorporate:

• Sturdy mounting systems designed to withstand high winds
• Quality waterproofing for all electrical components
• Regular maintenance to ensure optimal performance, especially after severe weather events

Despite these challenges, with proper planning and installation, Bantacan remains an excellent location for solar energy production, offering consistent and substantial energy output throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

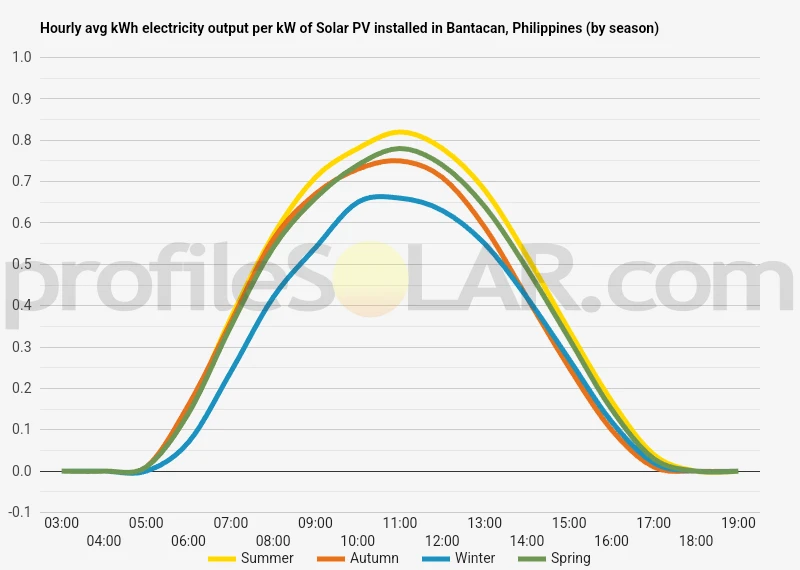

Solar output per kW of installed solar PV by season in Bantacan

Seasonal solar PV output for Latitude: 7.5158, Longitude: 125.9661 (Bantacan, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° South in Bantacan, Philippines

To maximize your solar PV system's energy output in Bantacan, Philippines (Lat/Long 7.5158, 125.9661) throughout the year, you should tilt your panels at an angle of 6° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bantacan, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bantacan, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	13° South in Autumn	23° South in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bantacan, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bantacan, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bantacan, Philippines

The area surrounding Bantacan, Philippines, located at latitude 7.5158 and longitude 125.9661, is characterized by a diverse and complex topography. This region, situated on the island of Mindanao, features a mix of rolling hills, low-lying plains, and some mountainous terrain. To the west of Bantacan, the landscape gradually rises into the foothills of the Central Mindanao Cordillera, a mountain range that runs through the heart of the island. These hills are often covered in lush vegetation, with some areas cleared for agriculture. As one moves eastward from Bantacan, the terrain becomes flatter, transitioning into coastal plains that eventually meet the Davao Gulf. The immediate vicinity of Bantacan itself is primarily composed of gently undulating terrain, with small valleys and ridges creating a patchwork of agricultural land and natural vegetation. Rivers and streams crisscross the area, carving shallow valleys and contributing to the region's fertile soil.

Suitable Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Bantacan, several factors come into play. The most suitable areas would be those that combine relatively flat terrain, good sun exposure, and proximity to existing infrastructure. The coastal plains to the east of Bantacan offer promising potential for solar PV development. These areas are generally flatter, which reduces the cost and complexity of site preparation. The open nature of the terrain also minimizes shading from natural features, allowing for maximum sun exposure throughout the day. Some of the gently sloping hillsides to the west of Bantacan could also be suitable for solar installations. South-facing slopes, in particular, would receive excellent sun exposure. However, care would need to be taken to avoid areas with steep gradients or those prone to landslides during the rainy season. It's important to note that while the topography is favorable in many areas, other factors such as land ownership, environmental considerations, and proximity to the electrical grid would also play crucial roles in determining the most suitable locations for large-scale solar PV projects. Additionally, local weather patterns, including the frequency of cloud cover and the impact of the monsoon season, would need to be carefully evaluated to ensure optimal energy production throughout the year.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
