Bayawan, Central Visayas, Philippines, located in the tropics at latitude 9.3676 and longitude 122.8002, offers a promising environment for solar energy generation throughout the year. The consistent sunlight typical of tropical regions, coupled with the location's seasonal patterns characterized by wet and dry periods rather than traditional four-season cycles, creates favorable conditions for solar photovoltaic (PV) installations.

Seasonal Solar Energy Production

The solar energy output at this location demonstrates relatively stable production across the year, with some variations between seasons:

• Spring: 6.29 kWh/day per kW installed
• Summer: 5.56 kWh/day per kW installed
• Autumn: 5.23 kWh/day per kW installed
• Winter: 5.02 kWh/day per kW installed

Spring emerges as the most productive season, likely due to clearer skies and optimal sun angles. While winter shows the lowest output, the difference between seasons is not dramatic, indicating consistent year-round potential for solar energy generation.

Optimal Panel Tilt

For fixed solar panel installations in Bayawan, Central Visayas, the ideal tilt angle to maximize year-round energy production is 9 degrees facing South. This relatively low tilt angle reflects the location's proximity to the equator, where the sun's path stays closer to directly overhead throughout the year.

Environmental Considerations

While Bayawan's tropical climate is generally favorable for solar energy, there are some environmental factors to consider:

1. Typhoons: The Philippines is prone to tropical cyclones, which can potentially damage solar installations. To mitigate this risk, robust mounting systems and high-quality, weather-resistant panels should be used.

2. High Humidity: The tropical climate brings high humidity, which can lead to accelerated degradation of solar equipment. Using corrosion-resistant materials and ensuring proper sealing of electrical components can help prevent humidity-related issues.

3. Heavy Rainfall: During the wet season, frequent and intense rainfall may temporarily reduce solar output. Installing panels at the optimal angle helps with water runoff, and regular cleaning can prevent dirt accumulation that might affect efficiency.

Despite these challenges, with proper planning and preventative measures, Bayawan remains an excellent location for solar PV installations, offering consistent and substantial energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

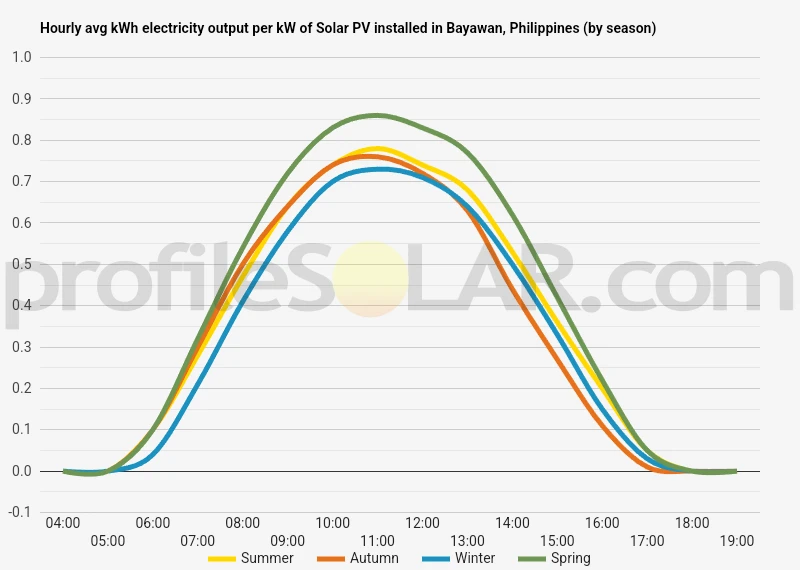

Solar output per kW of installed solar PV by season in Bayawan

Seasonal solar PV output for Latitude: 9.3676, Longitude: 122.8002 (Bayawan, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.56kWh/day in Summer.

Average 5.23kWh/day in Autumn.

Average 5.02kWh/day in Winter.

Average 6.29kWh/day in Spring.

Ideally tilt fixed solar panels 9° South in Bayawan, Philippines

To maximize your solar PV system's energy output in Bayawan, Philippines (Lat/Long 9.3676, 122.8002) throughout the year, you should tilt your panels at an angle of 9° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 9.3676, Longitude: 122.8002, the ideal angle to tilt panels is 9° South

Seasonally adjusted solar panel tilt angles for Bayawan, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bayawan, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bayawan, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bayawan, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bayawan, Philippines

The topography around Bayawan, Philippines is quite diverse and interesting. Bayawan City is situated on the southern coast of Negros Island, facing the Sulu Sea. The immediate coastal area is generally flat, with sandy beaches and some mangrove forests near the shore. As you move inland, the terrain gradually rises into gently rolling hills and plains.

Further inland, the landscape becomes more rugged and mountainous. The city is backed by the southern extension of the Cuernos de Negros mountain range, which runs along the spine of Negros Island. These mountains are characterized by steep slopes, deep valleys, and lush tropical forests. The highest peaks in this area reach elevations of around 1,000 to 1,500 meters above sea level.

Several rivers flow through the region, carving out valleys and creating fertile alluvial plains as they make their way to the sea. The Bayawan River is one of the most prominent, flowing through the heart of the city before emptying into the Sulu Sea.

For large-scale solar PV installations, the most suitable areas would likely be found in the flat to gently rolling terrain between the coastal plains and the foothills of the mountains. These areas offer several advantages for solar development:

• They receive ample sunlight throughout the year, being closer to the equator.
• The relatively flat terrain makes construction and maintenance easier.
• These areas are often already cleared for agriculture, reducing the need for extensive land preparation.
• They are generally more accessible than the mountainous regions, facilitating easier connection to the power grid.

Specific locations that might be worth investigating include the agricultural lands to the north and northeast of Bayawan City proper, as well as some of the more open areas along the coastal plain. However, it's important to note that any large-scale solar development would require detailed site-specific studies to assess factors such as exact solar radiation levels, land ownership, environmental impact, and proximity to existing electrical infrastructure.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
