Catbalogan, Eastern Visayas, Philippines, situated in the tropics at latitude 11.7721 and longitude 124.8846, offers a promising location for solar energy generation. The consistent sunlight throughout the year, typical of tropical regions, provides a solid foundation for solar PV installations.

Seasonal Solar Performance

Solar energy production in Catbalogan varies across the meteorological seasons. Spring stands out as the most productive period, with an impressive 6.24 kWh per day for each kilowatt of installed solar capacity. Summer follows closely, generating 5.84 kWh/day/kW. Autumn sees a slight decrease to 4.95 kWh/day/kW, while winter experiences the lowest output at 4.19 kWh/day/kW.

Despite the seasonal fluctuations, Catbalogan's year-round solar potential remains relatively high. The region's proximity to the equator ensures substantial sunlight even during the less productive months, making it a viable location for consistent solar energy generation throughout the year.

Optimal Panel Installation

For fixed solar panel installations in Catbalogan, Eastern Visayas, the ideal tilt angle to maximize year-round energy production is 10 degrees facing South. This angle takes into account the location's latitude and the Earth's elliptical orbit, optimizing the panels' exposure to sunlight throughout the year.

Environmental Considerations

While Catbalogan's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider:

• Typhoons: The Philippines is prone to tropical cyclones, which can potentially damage solar installations.
• Heavy rainfall: The region experiences a pronounced rainy season, which may temporarily reduce solar output.

To mitigate these risks, it's crucial to use high-quality, weather-resistant solar panels and mounting systems designed to withstand strong winds and heavy rain. Regular maintenance and cleaning of panels, especially during the rainy season, can help maintain optimal performance. Additionally, incorporating a robust monitoring system can help quickly identify and address any issues that may arise due to weather events.

In conclusion, Catbalogan's tropical location provides an excellent opportunity for solar energy generation. With proper installation techniques and preventative measures, the challenges posed by local weather patterns can be effectively managed, allowing for efficient and reliable solar power production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

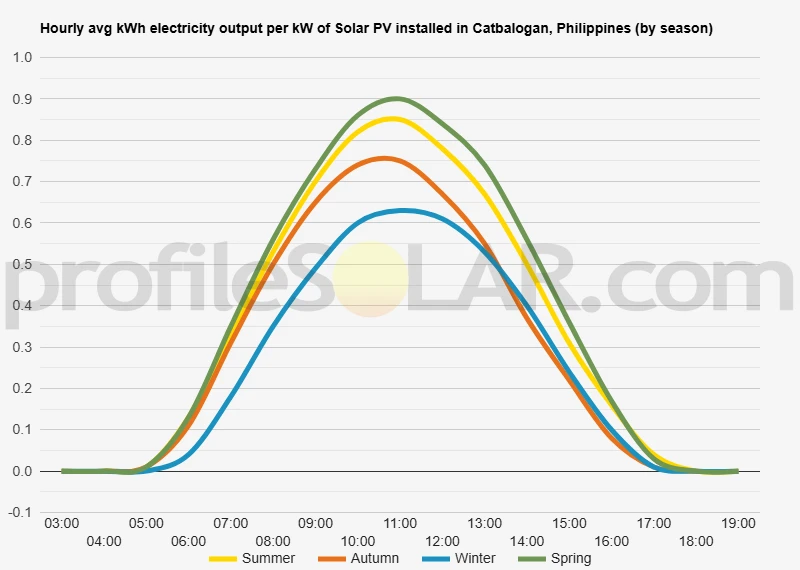

Solar output per kW of installed solar PV by season in Catbalogan

Seasonal solar PV output for Latitude: 11.7721, Longitude: 124.8846 (Catbalogan, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Catbalogan, Philippines

To maximize your solar PV system's energy output in Catbalogan, Philippines (Lat/Long 11.7721, 124.8846) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Catbalogan, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Catbalogan, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	18° South in Autumn	27° South in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Catbalogan, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Catbalogan, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Catbalogan, Philippines

The topography around Catbalogan, Philippines, is characterized by a diverse landscape that includes coastal areas, rolling hills, and mountainous regions. Situated on the western coast of Samar Island, Catbalogan is nestled between the Samar Sea to the west and the rugged interior to the east. The immediate vicinity of Catbalogan features a relatively flat coastal plain, which gradually rises into gently rolling hills as one moves inland. This coastal area is intersected by numerous rivers and streams that flow from the higher elevations towards the sea. The terrain becomes increasingly hilly and eventually mountainous as you travel eastward from the city. The nearby Samar Interior Basin, located to the east and northeast of Catbalogan, is a large depression surrounded by mountain ranges. This basin contains a mix of forested areas, grasslands, and agricultural lands. The mountains surrounding the basin can reach heights of over 800 meters (2,600 feet) above sea level.

Potential Areas for Large-Scale Solar PV

When considering areas suitable for large-scale solar photovoltaic (PV) installations near Catbalogan, several factors come into play. The ideal locations would have ample sunlight exposure, relatively flat terrain, and good accessibility for construction and maintenance. The coastal plains and gently rolling hills surrounding Catbalogan offer promising potential for solar PV development. These areas generally have fewer obstructions to sunlight and could accommodate large arrays of solar panels. Additionally, their proximity to existing infrastructure and the city itself could make grid connection and maintenance more feasible. Some of the cleared or sparsely vegetated areas within the Samar Interior Basin might also be suitable for solar PV installations. While these locations are further from the city, they often feature expansive flat or gently sloping terrain that could be ideal for large-scale solar farms. However, it's important to note that the region's tropical climate, with its high humidity and frequent rainfall, may pose challenges for solar energy production. Careful site selection and engineering would be necessary to maximize the efficiency of any solar PV installations in this area. Furthermore, any large-scale solar development would need to balance energy production goals with environmental conservation efforts, as the region is home to diverse ecosystems and wildlife. Proper environmental impact assessments and community consultations would be crucial steps in identifying the most appropriate locations for solar PV projects near Catbalogan.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
