Cavite City, Calabarzon, Philippines, situated at 14.4855° N, 120.9043° E, offers a promising location for solar energy generation. Located in the tropics, this area experiences consistent sunlight throughout the year, with seasons primarily characterized by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Potential

The solar energy potential in Cavite City is relatively stable across the year, with some seasonal variations. Spring stands out as the most productive season, generating an impressive 6.94 kWh per day for each kilowatt of installed solar capacity. Summer, autumn, and winter maintain steady outputs of 5.27, 5.19, and 5.07 kWh/day respectively, per kW of installed solar.

This consistency in solar energy production throughout the year makes Cavite City an ideal location for year-round solar power generation. The peak production during spring months suggests that this could be an excellent time for maintenance or expansion of solar installations to maximize efficiency.

Optimal Panel Installation

For fixed panel installations in Cavite City, Calabarzon, the ideal tilt angle to maximize year-round solar production is 13 degrees facing South. This angle has been calculated taking into account the city's latitude, the sun's position throughout the year, and the potential daily PV output based on NASA's solar irradiance data.

Environmental Considerations

While Cavite City's tropical location provides excellent solar potential, there are some environmental factors to consider. The region experiences a monsoon climate, which can lead to periods of heavy rainfall and potential cloud cover, particularly during the wet season (typically June to November). This could temporarily reduce solar energy production.

To mitigate these effects, consider the following preventative measures:

• Install high-quality, weather-resistant solar panels designed to perform well in humid conditions.
• Implement a robust cleaning and maintenance schedule to prevent build-up of dirt or debris, which can be more prevalent in tropical environments.

Additionally, the proximity to the coast means salt spray could potentially affect solar panel efficiency over time. Using corrosion-resistant materials and applying protective coatings can help extend the lifespan and maintain the efficiency of solar installations in this coastal environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

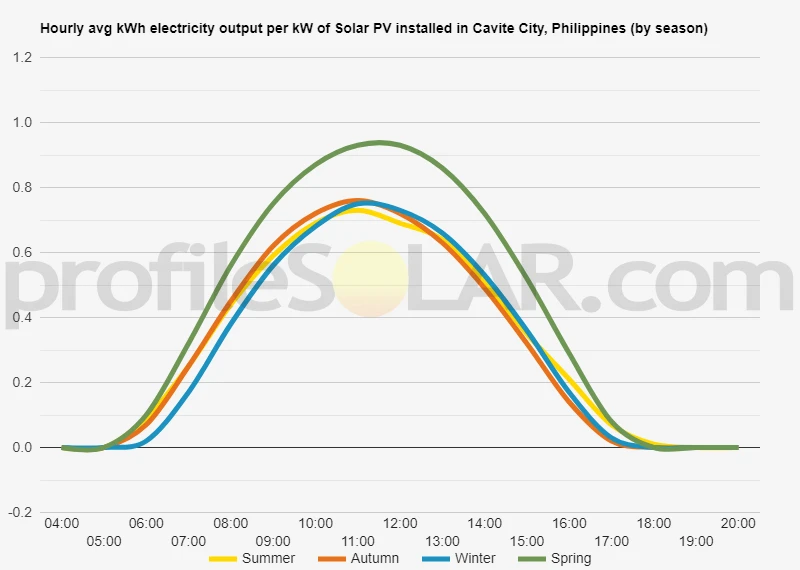

Solar output per kW of installed solar PV by season in Cavite City

Seasonal solar PV output for Latitude: 14.4855, Longitude: 120.9043 (Cavite City, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.27kWh/day in Summer.

Average 5.19kWh/day in Autumn.

Average 5.07kWh/day in Winter.

Average 6.94kWh/day in Spring.

Ideally tilt fixed solar panels 13° South in Cavite City, Philippines

To maximize your solar PV system's energy output in Cavite City, Philippines (Lat/Long 14.4855, 120.9043) throughout the year, you should tilt your panels at an angle of 13° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 14.4855, Longitude: 120.9043, the ideal angle to tilt panels is 13° South

Seasonally adjusted solar panel tilt angles for Cavite City, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cavite City, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cavite City, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cavite City, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cavite City, Philippines

The topography around Cavite City, Philippines, is primarily characterized by low-lying coastal areas and gently rolling terrain. Cavite City itself is located on a small peninsula that juts out into Manila Bay, with much of its land area being relatively flat and close to sea level. The surrounding region features a mix of urban development, agricultural lands, and some scattered hills.

To the east and northeast of Cavite City, the land gradually rises into a series of low hills and plateaus. This area, known as the Cavite Uplands, includes parts of neighboring municipalities like Noveleta, Kawit, and Imus. These elevated areas typically range from 30 to 100 meters above sea level, providing some variation in the landscape.

To the south and southwest, the terrain becomes more varied, with a combination of flat coastal plains and gently rolling hills. This area includes parts of Tanza and General Trias, where the land gradually increases in elevation as you move further inland.

Regarding areas suitable for large-scale solar PV (photovoltaic) installations, several factors need to be considered. The most promising locations would likely be found in the following areas:

1. Inland agricultural areas: The relatively flat, open spaces in parts of Tanza, General Trias, and Imus could be suitable for solar farms. These areas often have fewer obstructions and good sun exposure.
2. Cavite Uplands: Some of the elevated areas in the eastern part of Cavite province might offer good potential for solar installations. These locations could benefit from reduced air pollution and potentially clearer skies compared to the more urbanized coastal areas.
3. Industrial zones: Some of the industrial parks and economic zones in the region, such as those found in General Trias and Rosario, might have large roof spaces or unused land that could be repurposed for solar PV installations.
4. Reclaimed coastal areas: While not ideal due to potential environmental concerns, some of the reclaimed lands along the coast of Manila Bay could potentially be used for solar farms if properly designed to withstand the coastal environment.

It's important to note that any large-scale solar PV project would require detailed site-specific assessments, including studies of local weather patterns, land availability, grid connectivity, and environmental impact. Additionally, the region's vulnerability to tropical storms and typhoons would need to be carefully considered in the design and implementation of any solar installations.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
