Cuenca, Calabarzon, Philippines, located in the tropical region, offers a promising environment for solar energy generation throughout the year. This location benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season cycles.

Seasonal Solar Performance

Solar panel performance in Cuenca varies across the meteorological seasons. Spring stands out as the most productive period, with an impressive daily output of 6.66 kWh per kW of installed solar capacity. Summer follows with 5.60 kWh/day, while autumn and winter show slightly lower but still significant outputs of 4.94 kWh/day and 4.35 kWh/day, respectively.

Optimal Panel Installation

To maximize year-round solar energy production in Cuenca, Calabarzon, fixed solar panels should be tilted at an angle of 12 degrees facing South. This optimal angle has been calculated considering the location's latitude, daily solar elevation angles, and NASA's solar irradiance data.

Environmental Considerations

While Cuenca's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. Typhoons: The Philippines is prone to tropical cyclones, which can potentially damage solar installations. 2. Heavy rainfall: During the wet season, frequent cloud cover and rain may temporarily reduce solar output. To mitigate these risks, it's crucial to implement robust installation methods. Using high-quality, weather-resistant solar panels and secure mounting systems can help protect against strong winds and heavy rainfall. Additionally, regular maintenance and cleaning of panels, especially after storms, can ensure optimal performance.

Conclusion

Despite some seasonal variations and potential weather-related challenges, Cuenca's location in the Philippines presents a highly favorable setting for year-round solar energy generation. With proper installation techniques and maintenance practices, solar PV systems in this area can provide a reliable and efficient source of renewable energy.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

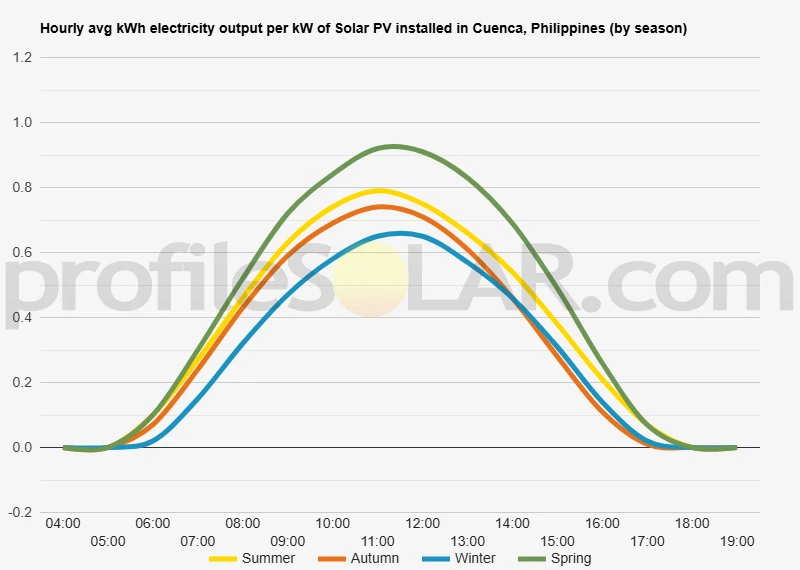

Solar output per kW of installed solar PV by season in Cuenca

Seasonal solar PV output for Latitude: 13.8979, Longitude: 121.0561 (Cuenca, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° South in Cuenca, Philippines

To maximize your solar PV system's energy output in Cuenca, Philippines (Lat/Long 13.8979, 121.0561) throughout the year, you should tilt your panels at an angle of 12° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cuenca, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cuenca, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	20° South in Autumn	29° South in Winter	7° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cuenca, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cuenca, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cuenca, Philippines

The topography around Cuenca, Philippines, is characterized by a diverse landscape that combines coastal lowlands, rolling hills, and mountainous terrain. Located in the province of Batangas on the island of Luzon, Cuenca sits near the southern shores of Taal Lake, a large freshwater lake formed within a volcanic caldera. To the north and east of Cuenca, the land gradually rises towards the Tagaytay Ridge, a popular tourist destination known for its panoramic views of Taal Lake and Volcano. This ridge forms part of a larger volcanic complex that dominates the region's topography. The slopes leading up to Tagaytay are generally gentle to moderate, with some steeper sections interspersed throughout. To the south and west, the terrain becomes more varied. Lowland areas near the coast give way to undulating hills and valleys as one moves inland. These areas are often used for agriculture, with rice paddies and coconut plantations being common sights. Small rivers and streams crisscross the landscape, carving out narrow valleys and creating natural drainage systems.

Suitable Areas for Large-Scale Solar PV

When considering areas near Cuenca for large-scale solar photovoltaic (PV) installations, several factors come into play, including topography, land availability, and access to infrastructure. Based on these considerations, the following areas show potential: The lowland areas to the south and southwest of Cuenca offer promising locations for solar PV projects. These regions typically have flatter terrain, which is ideal for the installation of large solar arrays. The open spaces in this direction, particularly in areas that are not prime agricultural land, could be well-suited for solar development. Some of the gently sloping hillsides to the east and northeast of Cuenca might also be suitable for solar PV installations. While not as ideal as flat terrain, modern solar technologies can be adapted to work effectively on mild slopes. These areas may offer the added benefit of slightly higher elevation, potentially increasing exposure to sunlight. It's important to note that any large-scale solar project would need to carefully consider environmental impacts, particularly given the region's rich biodiversity and agricultural importance. Additionally, proximity to existing power infrastructure and the local electrical grid would play a crucial role in determining the most suitable locations for solar PV development in the vicinity of Cuenca.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
