Location estimate
Dau
Central Luzon · Philippines
Approximate location reference—not a rooftop, property or survey point.
Seasonal average-day estimates
Selected capacity 1 kWp
Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.
Logarithmic slider: each labelled interval is 10× capacity. Energy scales linearly with capacity.
Arrow keys change capacity by about 2.3 percent per step. Page Up and Page Down move one labelled interval. Home selects 0.1 kWp; End selects 10 MWp.
Enter exact capacity and unit
Enter at least 0.1 kWp. Decimal point or comma; no thousands separators. 1 MWp = 1,000 kWp. Changing units keeps the same capacity. Exact entry keeps your precision; slider adjustments select three-significant-figure sizes.
There is no fixed upper capacity limit. Values and results must fit the calculator’s numeric range; the slider’s range is not an exact-entry limit.
Showing seasonal average-day estimates for 1 kWp.
Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.
Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.
Summer
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Autumn
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Winter
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Spring
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Very large results use scientific notation; an approximate capacity label is marked ≈. Exact capacity and full results remain available under Source basis and scaling limits.
Shared scale: 0–7.00 kWh/day.
I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.
This is illustrative scaling, not a site-specific production prediction.
Source basis and scaling limits
Original seasonal average-day estimates for Dau, in kWh/kWp/day.
I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.
| Season | Recorded kWh/kWp/day | Exact selected-capacity result · kWh/day |
|---|---|---|
| Summer | 5.39 | 5.39 × 1 kWp = 5.39 kWh/day |
| Autumn | 5.36 | 5.36 × 1 kWp = 5.36 kWh/day |
| Winter | 5.21 | 5.21 × 1 kWp = 5.21 kWh/day |
| Spring | 6.93 | 6.93 × 1 kWp = 6.93 kWh/day |
Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.
Full results rounded to two decimal places
These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.
- Summer · kWh/day
- 5.39
- Autumn · kWh/day
- 5.36
- Winter · kWh/day
- 5.21
- Spring · kWh/day
- 6.93
The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.
These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.
Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.
Year-round panel setup
- Tilt from horizontal
- 14°
- Facing direction
- South
Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.
Suggested seasonal tilts
Tilt from horizontal · facing direction
- Summer
Jun, Jul, Aug - 1°North
- Autumn
Sep, Oct, Nov - 21°South
- Winter
Dec, Jan, Feb - 30°South
- Spring
Mar, Apr, May - 8°South
The seasonal electricity figures do not model gains from switching between these settings.
About this orientation
This schematic shows the year-round panel tilt and facing direction for Dau, Central Luzon, Philippines.
For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.
I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.
The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.
Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.
Seasonal orientation diagrams
These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.
Summer
1° tilt · North
Illustrative direction; exact azimuth not recorded.
Autumn
21° tilt · South
Illustrative direction; exact azimuth not recorded.
Winter
30° tilt · South
Illustrative direction; exact azimuth not recorded.
Spring
8° tilt · South
Illustrative direction; exact azimuth not recorded.
View larger

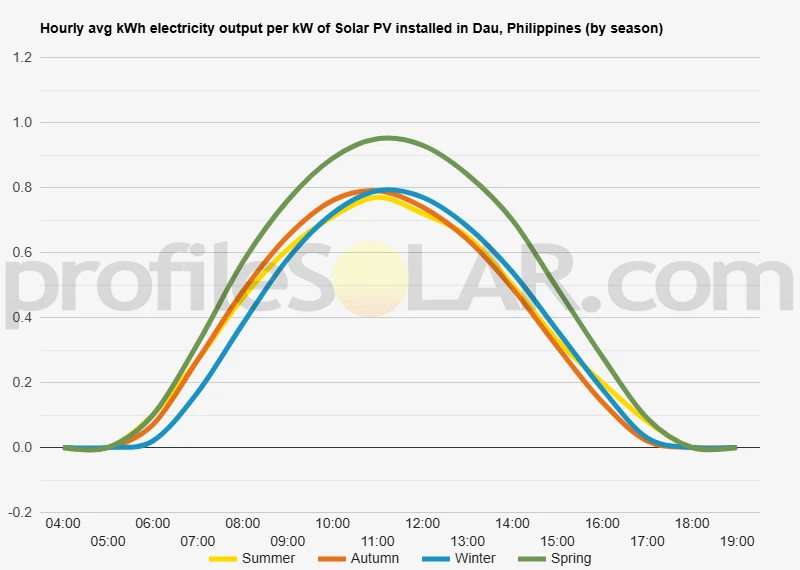

Hourly electricity pattern for Dau, Philippines
Hourly profiles by season — Dau, Philippines · 2021
This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.
2021 is the method’s reference year, not verified year coverage for every point in this historical chart.
The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.
Row-spacing planning
Planning solar-panel row spacing in Dau
Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.
Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.
Panel and spacing inputs
Along the tilted surface, across the row. Greater than 0, up to 20 m; 2 m is an example.
Optional extra space, 0–100 m.
Starts at the recorded year-round tilt. Decimal entry is kept at your entered precision.
Linear slider: arrows select the next whole degree; Page Up/Down 10°, Home 0°, End 90°. Only moving it changes your numeric entry.
Results update automatically.
Example calculated with a 2 m panel surface length. Replace that example with the dimension of the module you are considering.
Example calculated with a 2 m panel surface length. Replace that example with the dimension of the module you are considering. Other published location estimates remain available.
Adjust the inputs to update this diagram and its results.
Row pitch including margin
≈ m
- Sunlight ray
- First row’s ground shadow
- Shadow endpoint
At this scale the panel surfaces are very small. The row labels locate them; exact dimensions remain available below.
- Calculated clear gap
- ≈ m
- Added margin
- ≈ 0 m
- Gap including margin
- ≈ m
- Panel horizontal footprint
- ≈ m
- Panel vertical rise
- ≈ m
- Pitch before margin
- ≈ m
Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.
One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.
Detailed inputs and unrounded results
More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.
- Panel surface length
- 2 m
- Tilt up from horizontal
- 14°
- Added margin
- 0 m
- Latitude from the catalogue
- 15.025200000000000000° (Northern Hemisphere)
- Panel horizontal footprint
- 1.940591452551993 m
- Panel vertical rise
- 0.48384379119933546 m
- Calculated clear gap
- 0.3845219187405927 m
- Pitch before margin
- 2.3251133712925856 m
- Gap including margin
- 0.3845219187405927 m
- Row pitch including margin
- 2.3251133712925856 m
- Design solar elevation
- 51.525017153186354°
How this spacing estimate is calculated
I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.
δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).
Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.
The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.
The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.
Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.
Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.
Solar context for Dau
Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.
Dau, Philippines presents an excellent location for year-round solar PV energy generation. Located in the tropical zone at coordinates 15.0252°N, 120.7447°E, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than the traditional temperature variations seen in temperate climates.
Read the full article
<h3>Solar Energy Production Performance</h3> The solar energy output data for Dau shows strong and relatively consistent performance across all seasons. Spring emerges as the peak production period, delivering an impressive 6.93 kWh per day per kW of installed solar capacity. Summer and autumn maintain very similar output levels at 5.39 kWh/day and 5.36 kWh/day respectively, while winter shows the lowest but still substantial production at 5.21 kWh/day per kW installed. This seasonal pattern indicates that Dau experiences its optimal solar generation during the spring months, likely coinciding with the dry season when cloud cover is minimal and atmospheric conditions are clearest. The relatively small variation between seasons (ranging from 5.21 to 6.93 kWh/day) demonstrates the location's reliability for consistent solar energy production throughout the year. <h3>Optimal Panel Installation</h3> For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 14 degrees facing south. This angle has been calculated by analyzing daily solar elevation angles at this specific latitude, determining optimal panel positioning, and weighting these angles according to daily photovoltaic potential using solar irradiance data that accounts for Earth's elliptical orbit. <h3>Environmental and Weather Challenges</h3> Several significant environmental and weather factors in Dau could potentially impact solar energy production: <ul> <li><strong>Monsoon rains and wet season:</strong> Extended periods of heavy rainfall and overcast skies during the wet season can substantially reduce solar output</li> <li><strong>Typhoons and severe weather:</strong> The Philippines regularly experiences typhoons that can damage solar installations and create prolonged periods of reduced sunlight</li> <li><strong>High humidity and dust accumulation:</strong> Tropical humidity combined with dust can create film buildup on solar panels, reducing their efficiency</li> <li><strong>Volcanic ash:</strong> The Philippines' volcanic activity can occasionally deposit ash that blocks sunlight and coats solar panels</li> </ul> <h3>Preventative Measures for Optimal Performance</h3> To ensure maximum energy production despite these challenges, several preventative measures should be implemented: <ul> <li><strong>Robust mounting systems:</strong> Install reinforced mounting structures designed to withstand high winds and severe weather conditions typical of typhoon-prone areas</li> <li><strong>Regular cleaning schedules:</strong> Establish frequent panel cleaning routines, particularly during dusty periods and after weather events, to maintain optimal light transmission</li> <li><strong>Proper drainage design:</strong> Ensure installation sites have excellent drainage to prevent water accumulation and potential electrical issues during heavy rains</li> <li><strong>Protective coatings:</strong> Apply anti-soiling coatings to panels to reduce dust and debris adhesion in the humid tropical environment</li> <li><strong>Strategic positioning:</strong> Position installations to minimize exposure to prevailing winds that carry salt spray from nearby coastal areas, which can corrode equipment</li> </ul> Despite these environmental considerations, Dau's consistently strong solar output throughout the year makes it a highly suitable location for solar PV installations when proper planning and maintenance protocols are implemented.
Topography around Dau
These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.
<h3>Topographical Features of Dau, Philippines</h3> The area around Dau in Pampanga province is characterized by relatively flat to gently rolling terrain, typical of the Central Luzon plains. This region sits within the expansive lowlands that stretch across much of central Luzon, with elevations generally ranging from 10 to 50 meters above sea level. The landscape is predominantly agricultural, featuring rice paddies, sugarcane fields, and other crop lands that benefit from the fertile alluvial soils deposited by nearby river systems. The topography becomes more varied as one moves away from the immediate Dau area. To the west, the terrain gradually rises toward the foothills of the Zambales Mountains, while to the east, the land remains relatively flat extending toward the Sierra Madre range in the far distance. Several small creeks and drainage channels crisscross the area, part of the broader Pampanga River watershed system. The region experiences a tropical climate with distinct wet and dry seasons, and the flat terrain combined with good drainage makes it suitable for various land uses. Urban development is scattered throughout the area, with Dau serving as an important transportation hub due to its location along major highways connecting Manila to northern Luzon. <h3>Optimal Areas for Large-Scale Solar Development</h3> The flat agricultural plains extending northeast and southwest of Dau present the most promising opportunities for large-scale solar photovoltaic installations. These areas offer several key advantages including minimal grading requirements, excellent accessibility via existing road networks, and proximity to electrical transmission infrastructure. The relatively uniform topography across these plains would allow for efficient panel layouts and maintenance access. Particularly suitable locations include the expansive rice fields and fallow agricultural lands that stretch toward the municipalities of Mabalacat and Angeles City to the south, and toward Bamban to the north. These areas feature gentle slopes of less than 5 degrees, which is ideal for optimizing solar panel orientation while minimizing earth-moving costs during construction. The western areas toward the Zambales foothills should generally be avoided for large installations due to increasing terrain complexity and potential shading issues from elevated landforms. Similarly, areas immediately adjacent to major waterways may present seasonal flooding risks that could complicate solar development. Transportation infrastructure throughout the region is well-developed, with major highways and secondary roads providing good access for construction equipment and ongoing maintenance operations. The proximity to existing electrical substations and transmission lines would facilitate grid connection for large solar facilities, reducing overall project development costs.
Technical location reference
Approximate map point used for Dau, Philippines
This coordinate is the calculation reference for Dau, Philippines. Extra decimal places do not make it a rooftop, property or survey point.
Coordinates and precision
- Map coordinate
- 15.025200000000000000, 120.744700000000000000
- Originally displayed coordinate
- lat15.0252 / long120.7447
How the estimate works
How this Dau estimate was calculated
Here is how I calculated the location estimate for Dau, Philippines.
Read how all Location estimates workSource and scope
I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.
The figures are calculated estimates, not measured output or a new NASA request while you browse.
Reference period and source details
The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.
NASA POWER project reference
The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.
This source reference does not imply NASA endorsement.
Use the result carefully
What this Dau Location estimate includes and leaves out
Use the Dau figures for broad location context, with the following boundaries in mind.
- These catalogue estimates are informational; they do not establish a site-specific production result.
- The location is an approximate reference, not a property, rooftop or survey coordinate.
- The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
- The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
- Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
