Solar Power Potential in Kabacan, Soccsksargen, Philippines

Kabacan, Soccsksargen, Philippines, located at 7.0301° N, 124.8721° E, offers promising conditions for solar power generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with weather patterns characterized more by wet and dry seasons than the traditional four seasons experienced in temperate regions. The solar energy potential in Kabacan shows strong year-round performance with some seasonal variation. During Spring, the location achieves its peak production at 5.96 kWh per day for each kilowatt of installed solar capacity. Summer follows closely with 5.93 kWh/day, while Autumn sees a moderate decrease to 5.37 kWh/day. Winter represents the lowest production period with 4.89 kWh/day per installed kilowatt.

Optimal Installation Parameters

For fixed solar panel installations in Kabacan, Soccsksargen, the ideal tilt angle to maximize year-round energy production is 6 degrees facing South. This relatively shallow angle reflects Kabacan's proximity to the equator, where the sun passes nearly overhead throughout much of the year.

Environmental and Weather Considerations

Several local factors could potentially impact solar production in Kabacan:

• The region's pronounced wet season (typically May to October) brings increased cloud cover and rainfall, which can temporarily reduce solar efficiency during these months.
• Typhoons occasionally affect the Philippines, bringing strong winds and heavy precipitation that could damage poorly secured installations.
• High humidity levels in the tropical climate may accelerate degradation of solar equipment if not properly protected.
• Dust accumulation during the dry season can gradually reduce panel efficiency if regular cleaning isn't maintained.

Preventative Measures

To maximize solar production in Kabacan despite these challenges, several preventative measures are recommended:

• Install robust mounting systems designed to withstand typhoon-strength winds, with additional anchoring in typhoon-prone areas.
• Select solar equipment with appropriate IP ratings for high humidity environments and use corrosion-resistant materials for all mounting hardware.
• Implement a regular cleaning schedule, particularly during the dry season when dust accumulation is highest.
• Consider slightly oversizing the solar array to compensate for reduced production during the cloudier wet season.
• Use microinverters or power optimizers to minimize the impact of partial shading from cloud cover.

With proper installation techniques and maintenance practices, Kabacan's favorable solar conditions can be effectively harnessed for reliable renewable energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

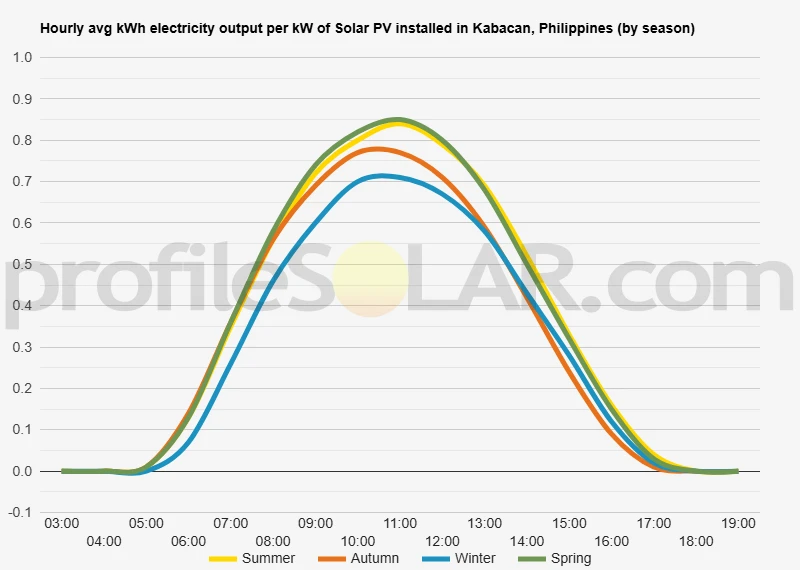

Solar output per kW of installed solar PV by season in Kabacan

Seasonal solar PV output for Latitude: 7.0301, Longitude: 124.8721 (Kabacan, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° South in Kabacan, Philippines

To maximize your solar PV system's energy output in Kabacan, Philippines (Lat/Long 7.0301, 124.8721) throughout the year, you should tilt your panels at an angle of 6° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kabacan, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kabacan, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	13° South in Autumn	23° South in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kabacan, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kabacan, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kabacan, Philippines

The topography around Kabacan in North Cotabato, Philippines presents a diverse landscape characterized by a mix of flat alluvial plains and gently rolling terrain, gradually transitioning to more elevated areas as one moves away from the town center. Situated in the fertile Mindanao River basin (also known as the Rio Grande de Mindanao), Kabacan benefits from the rich alluvial soils deposited by the river system over millennia. The town itself lies approximately 121 meters above sea level, with the surrounding landscape featuring agricultural plains that have been extensively developed for cultivation. To the east of Kabacan, the terrain begins to rise toward the Arakan Valley and eventually the Pantaron Mountain Range, which forms part of the Central Mindanao Highlands. These eastern highlands create a natural boundary and contribute to the region's watershed. The western side of Kabacan similarly transitions from plains to more undulating topography as it approaches the Ligawasan Marsh, one of the largest wetland areas in Mindanao.

Solar PV Potential Areas

For large-scale solar photovoltaic development, the flat agricultural plains surrounding Kabacan offer significant advantages. These areas combine favorable topographical conditions with practical considerations for solar farm development. The relatively level terrain reduces construction costs associated with land preparation and maximizes the efficiency of panel placement. Several specific regions stand out as particularly suitable: The agricultural plains extending northwest from Kabacan toward Pigcawayan provide extensive open areas with minimal shading concerns. These lands receive abundant solar radiation throughout the year due to minimal topographical obstructions. The consistent elevation across these plains also simplifies infrastructure development and maintenance operations. The slightly elevated plateaus to the northeast, approaching Carmen, offer another promising location. These areas sit above potential flooding zones while maintaining the flat characteristics ideal for solar array installation. The gentle slopes in these regions can actually benefit panel efficiency by facilitating optimal angling toward the sun's path. Agricultural areas to the south of Kabacan, extending toward M'lang, present another viable option for large-scale solar development. These expanses feature consistent terrain with good drainage properties, reducing concerns about seasonal flooding that could impact solar infrastructure. While the eastern highlands might seem attractive due to their elevation, the increasing slope and more complex terrain would significantly raise construction costs and complicate maintenance. Similarly, the western lowlands approaching the Ligawasan Marsh, while flat, face periodic flooding challenges that could compromise solar infrastructure. The ideal locations for solar PV development around Kabacan would balance accessibility to existing power transmission infrastructure, minimal competition with high-value agricultural production, and topographical advantages. The gently sloping plains that transition between the completely flat agricultural areas and the more pronounced hills offer this optimal balance, with sufficient elevation to avoid flooding concerns while maintaining the relatively level terrain that simplifies construction and maximizes solar collection efficiency.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
