Ligao, Bicol Region, Philippines, situated in the tropics, offers a promising location for solar energy generation throughout the year. This area experiences consistent sunlight and is characterized more by wet and dry seasons rather than traditional four-season cycles.

Seasonal Solar Performance

The solar energy output at this location varies across meteorological seasons:

• Spring: 6.25 kWh/day
• Summer: 5.60 kWh/day
• Autumn: 4.74 kWh/day
• Winter: 4.08 kWh/day

These figures represent the expected electricity output per kilowatt of installed solar capacity.

Optimal Generation Periods

Spring emerges as the most productive season for solar energy in Ligao, Bicol Region, with summer following closely behind. The region's proximity to the equator ensures relatively high solar radiation throughout the year, making it an ideal location for consistent solar power generation.

Panel Installation Considerations

For fixed panel installations in Ligao, Bicol Region, the ideal tilt angle to maximize year-round solar production is 11 degrees South. This angle is calculated based on the location's latitude and accounts for the Earth's elliptical orbit, ensuring optimal exposure to sunlight throughout the year.

Environmental Factors and Mitigation

While Ligao's tropical climate is generally favorable for solar energy, there are some environmental factors to consider:

• Typhoons: The Philippines is prone to tropical cyclones, which can damage solar installations. Robust mounting systems and weather-resistant panels are essential.
• Heavy rainfall: The wet season can reduce solar efficiency. Installing panels at the optimal angle helps with water runoff and self-cleaning.

To mitigate these challenges, it's crucial to use high-quality, weather-resistant equipment and implement regular maintenance schedules. Additionally, incorporating a battery storage system can help maintain power supply during periods of reduced sunlight.

Overall, Ligao's tropical location makes it a highly suitable site for year-round solar energy production, with proper planning and installation techniques addressing the few environmental challenges present.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

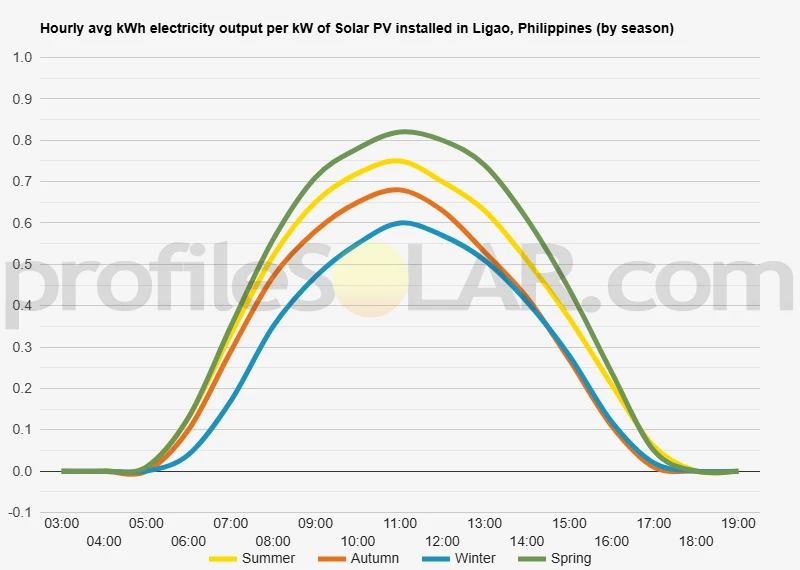

Solar output per kW of installed solar PV by season in Ligao

Seasonal solar PV output for Latitude: 13.2113, Longitude: 123.5107 (Ligao, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° South in Ligao, Philippines

To maximize your solar PV system's energy output in Ligao, Philippines (Lat/Long 13.2113, 123.5107) throughout the year, you should tilt your panels at an angle of 11° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ligao, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ligao, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	19° South in Autumn	28° South in Winter	6° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ligao, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ligao, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ligao, Philippines

The topography around Ligao, Philippines, is characterized by a diverse landscape that transitions from coastal plains to rolling hills and eventually to mountainous terrain. Ligao City itself is situated in the province of Albay, on the southeastern part of Luzon Island. The area surrounding Ligao features a mix of flat agricultural lands, gently sloping terrain, and more rugged elevations as one moves inland. To the west of Ligao, the land gradually rises towards the foothills of Mount Mayon, an active stratovolcano that dominates the skyline of Albay province. This iconic volcano, with its nearly perfect conical shape, plays a significant role in shaping the local topography. The volcanic soil in the region contributes to the area's fertility, supporting various agricultural activities. As one moves eastward from Ligao, the terrain becomes flatter, eventually giving way to the coastal plains that stretch towards the Philippine Sea. This area is characterized by expansive rice fields, coconut plantations, and other croplands that benefit from the rich volcanic soil and abundant rainfall.

Potential Areas for Large-Scale Solar PV

When considering suitable locations for large-scale solar photovoltaic (PV) installations near Ligao, several factors come into play. The ideal areas would have ample sunlight exposure, relatively flat terrain, and minimal risk of natural hazards. The coastal plains to the east of Ligao present promising opportunities for solar PV development. These areas offer large, open spaces with minimal shading from natural features. The flat terrain would simplify construction and reduce costs associated with land preparation. Additionally, the proximity to the coast ensures consistent sunlight exposure throughout the year. Some of the agricultural lands surrounding Ligao could also be potential candidates for solar PV installations. While care must be taken to balance energy production with food security, certain less productive or marginal agricultural areas might be suitable for solar farms. These locations often have the advantage of existing road infrastructure, which can facilitate construction and maintenance of solar facilities. It's important to note that while the slopes of Mount Mayon receive abundant sunlight, they are generally not suitable for large-scale solar installations due to the steep terrain and potential volcanic hazards. However, the elevated areas in the foothills, provided they are sufficiently flat and stable, could offer good solar potential with less competition for land use. When planning solar PV projects in this region, developers must consider the area's susceptibility to typhoons and volcanic activity. Robust engineering and careful site selection are crucial to ensure the longevity and reliability of any large-scale solar installation in the vicinity of Ligao.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
