Limay, Central Luzon, Philippines, situated at 14.5632° N, 120.6017° E, offers a promising location for solar energy generation throughout the year. Located in the tropics, this area experiences relatively consistent sunlight and is characterized by wet and dry seasons rather than traditional four-season cycles.

Seasonal Solar Performance

Solar energy production in Limay demonstrates impressive consistency across meteorological seasons. Spring stands out as the most productive period, with an average daily output of 6.94 kWh per kW of installed solar capacity. Summer follows with 5.27 kWh/day, then autumn with 5.19 kWh/day, and winter with a still respectable 5.07 kWh/day.

This data indicates that Limay is an excellent location for year-round solar energy generation, with only minor fluctuations between seasons. The high output during spring suggests that this could be an ideal time for maintenance or expansion of solar installations to capitalize on peak production periods.

Optimal Panel Tilt

For fixed panel installations in Limay, Central Luzon, the ideal tilt angle to maximize year-round solar production is 13 degrees facing South. This angle has been calculated to optimize energy capture throughout the year, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental Considerations

While Limay's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider:

1. Typhoons: The Philippines is prone to tropical cyclones, which can potentially damage solar installations.
2. High humidity: The tropical climate means high humidity levels, which can affect solar panel efficiency and longevity.

To mitigate these risks, solar installations in Limay should incorporate robust mounting systems designed to withstand high winds. Additionally, using corrosion-resistant materials and ensuring proper sealing of electrical components can help protect against humidity-related issues. Regular maintenance and cleaning schedules should also be implemented to maintain optimal performance in the tropical environment.

Overall, Limay presents an ideal location for solar energy production, with consistent year-round output and particularly high potential during the spring months. With proper installation techniques and maintenance practices, solar PV systems in this area can provide reliable and efficient renewable energy throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

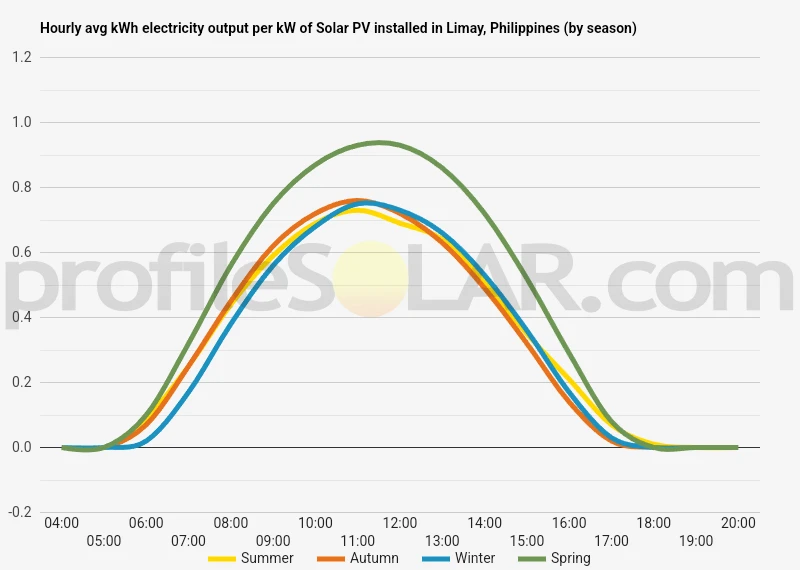

Solar output per kW of installed solar PV by season in Limay

Seasonal solar PV output for Latitude: 14.5632, Longitude: 120.6017 (Limay, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.27kWh/day in Summer.

Average 5.19kWh/day in Autumn.

Average 5.07kWh/day in Winter.

Average 6.94kWh/day in Spring.

Ideally tilt fixed solar panels 13° South in Limay, Philippines

To maximize your solar PV system's energy output in Limay, Philippines (Lat/Long 14.5632, 120.6017) throughout the year, you should tilt your panels at an angle of 13° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 14.5632, Longitude: 120.6017, the ideal angle to tilt panels is 13° South

Seasonally adjusted solar panel tilt angles for Limay, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Limay, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Limay, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Limay, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Limay, Philippines

The topography around Limay, Philippines, which is located at approximately 14.5632° North latitude and 120.6017° East longitude, is characterized by a mix of coastal lowlands and gently rolling hills. This area is situated on the western coast of Luzon, the largest island in the Philippines, facing the South China Sea.

The immediate vicinity of Limay features relatively flat terrain near the coastline, gradually transitioning to low-lying hills as you move inland. These hills are generally not very steep or high, with most elevations ranging from sea level to around 100-200 meters above sea level. The landscape is dotted with small rivers and streams that flow from the higher inland areas towards the coast.

To the east of Limay, the terrain becomes more rugged as it approaches the Zambales Mountains, which form a north-south spine along the western edge of Luzon. However, these mountains are still some distance away from Limay itself.

When considering areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, the gently sloping terrain just inland from the coast presents promising opportunities. These areas offer several advantages for solar energy development:

1. The gradual slopes provide good exposure to sunlight throughout the day, maximizing potential energy generation.
2. The relatively open landscape means there are fewer obstacles that could cast shadows on solar panels.
3. The proximity to existing infrastructure in Limay and nearby towns could facilitate easier connection to the power grid.
4. The land in this region is less likely to be prime agricultural territory compared to the fertile valleys further inland, potentially reducing land-use conflicts.

Specifically, the areas to the north and northeast of Limay, extending towards the neighboring municipality of Orion, could be particularly suitable for large-scale solar PV projects. These locations offer a good balance of favorable topography, available land, and proximity to existing development.

However, it's important to note that any large-scale solar development would require detailed site-specific assessments, including environmental impact studies, grid connection feasibility, and consideration of local land use regulations and community needs.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
