Solar Potential in Magalang, Central Luzon, Philippines

Magalang, Central Luzon, Philippines offers a promising location for solar energy generation, with consistent solar production potential throughout the year. Located in the tropics, this specific site (15.2209, 120.6555) demonstrates reliable solar energy potential across all meteorological seasons. The seasonal energy production data shows that a 1kW solar installation in Magalang can generate 5.36kWh per day during Summer and Autumn months, slightly less at 5.22kWh per day during Winter, and a significantly higher 6.94kWh per day during Spring. This pattern indicates that Spring is the optimal season for solar energy production in this location, with approximately 30% higher daily output compared to other seasons. For maximizing year-round solar production in Magalang, Central Luzon, fixed solar panels should be installed at a 14-degree tilt facing South. This specific angle has been calculated to optimize the capture of solar radiation throughout the year, accounting for the location's latitude and the Earth's elliptical orbit.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Magalang:

• Typhoon exposure: The Philippines experiences multiple typhoons annually, which can damage solar installations through high winds and flying debris.
• Heavy rainfall during wet season: Magalang experiences distinct wet and dry seasons, with potential for extended cloud cover reducing solar efficiency during rainy periods.
• Volcanic ash: Given the proximity to Mount Arayat and other volcanic formations in the region, occasional ashfall could accumulate on panels, reducing efficiency.
• High humidity: The tropical climate brings high humidity which can accelerate corrosion of mounting hardware and electrical components.

Preventative Measures

To maximize solar production despite these challenges, several preventative measures should be considered: Using typhoon-rated mounting systems with reinforced foundations can protect against strong winds. Installing panels with self-cleaning technologies or applying hydrophobic coatings helps manage both ash deposits and rainfall residue. Regular maintenance schedules should be implemented, particularly before and after the wet season. For optimal performance, corrosion-resistant hardware and marine-grade components should be used throughout the installation. Additionally, incorporating micro-inverters or power optimizers can help minimize production losses when some panels are partially shaded or soiled. Despite these considerations, the consistent year-round solar radiation in Magalang makes it a generally favorable location for solar PV installations, particularly with proper system design addressing the local environmental factors.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

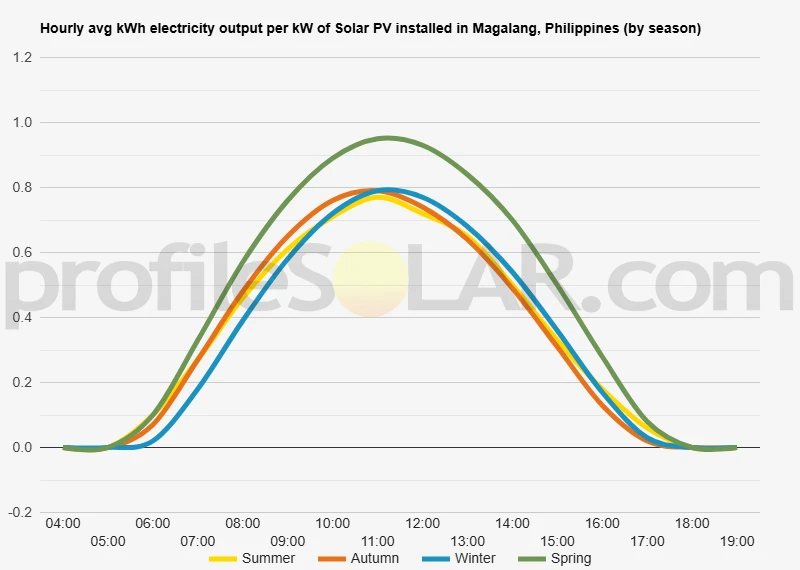

Solar output per kW of installed solar PV by season in Magalang

Seasonal solar PV output for Latitude: 15.2209, Longitude: 120.6555 (Magalang, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 14° South in Magalang, Philippines

To maximize your solar PV system's energy output in Magalang, Philippines (Lat/Long 15.2209, 120.6555) throughout the year, you should tilt your panels at an angle of 14° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Magalang, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Magalang, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 14° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	21° South in Autumn	31° South in Winter	8° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Magalang, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Magalang, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Magalang, Philippines

The topography around Magalang in the Philippines is characterized by a dramatic transition from flat plains to mountainous terrain. Magalang itself sits at the foot of Mount Arayat, an extinct stratovolcano that rises prominently from the surrounding Central Luzon plains. This location places Magalang in a unique transitional zone between the extensive flat agricultural lands of Pampanga province and the beginning of more elevated terrain.

Plains and Lowlands

The southern and western portions of Magalang feature relatively flat terrain that forms part of the broader Central Luzon plain. These lowland areas have elevations typically ranging from 50 to 100 meters above sea level. The flat topography in this region has historically made it ideal for rice cultivation, with extensive agricultural fields dominating the landscape. The plains extend toward Angeles City and San Fernando, creating a vast open expanse with minimal natural obstacles.

Mount Arayat Influence

The most distinctive topographical feature near Magalang is Mount Arayat, which rises dramatically to approximately 1,026 meters above sea level. This isolated volcanic mountain creates a striking visual landmark that dominates the otherwise flat surrounding plains. The mountain's presence influences local weather patterns and creates varying slopes on its flanks. The northeastern sections of Magalang begin to show increasing elevation as the terrain transitions toward the mountain's base.

Gentle Hills and Transitions

Between the flat plains and Mount Arayat, there exists a zone of gentle rolling hills and gradually increasing elevation. These transitional areas create a varied landscape with moderate slopes and intermittent plateaus. Small river systems and seasonal streams have carved shallow valleys throughout this region, creating natural drainage patterns that flow generally southward toward the Pampanga River basin.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development, the flat to gently rolling plains south and southwest of Magalang present the most favorable topography. These areas combine several advantageous characteristics: The flat terrain minimizes earthwork requirements during construction and allows for efficient layout of solar arrays without significant grading costs. The open nature of these plains means there are fewer natural obstacles like large trees or varied terrain that might cast shadows on solar panels. The transitional zones with slight elevation west and southwest of Magalang also offer promising locations. These areas typically have good drainage characteristics that reduce flooding risk while maintaining the relatively flat terrain needed for cost-effective solar development. Areas to avoid would include the steeper slopes of Mount Arayat to the northeast, where installation would be technically challenging and potentially environmentally disruptive. The lowland areas immediately adjacent to river systems should also be approached cautiously due to potential flooding concerns during monsoon seasons. The ideal solar development zones would focus on non-prime agricultural land in the flat to gently sloping regions southwest of Magalang proper, where the topography provides natural advantages for large-scale solar installations while minimizing both environmental impacts and construction challenges.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
