Mangaldan, Ilocos, Philippines, located in the tropical region, offers a promising environment for solar energy generation throughout the year. This location benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season cycles.

Solar Energy Potential

The solar energy output at Mangaldan is relatively stable across seasons, with some variations:

• Spring: 6.98 kWh/day
• Summer: 5.50 kWh/day
• Autumn: 5.45 kWh/day
• Winter: 5.12 kWh/day

Spring stands out as the most productive season, while winter sees a slight dip in energy generation. However, the difference between the highest and lowest outputs is not dramatic, indicating a reliable year-round solar potential.

Optimal Panel Installation

For fixed solar panel installations in Mangaldan, Ilocos, the ideal tilt angle is 15 degrees facing South. This angle maximizes total year-round production, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental Considerations

While Mangaldan's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. Typhoons: The Philippines is prone to tropical cyclones, which can damage solar installations. To mitigate this risk, use sturdy mounting systems and panels rated for high wind speeds. 2. Heavy rainfall: During the wet season, frequent rain can reduce solar efficiency. Ensure proper drainage systems are in place and consider self-cleaning panel technologies. 3. High humidity: Moisture can potentially affect electrical components. Use corrosion-resistant materials and ensure proper sealing of all electrical connections.

By addressing these factors during installation and maintenance, Mangaldan can effectively harness its substantial solar energy potential throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

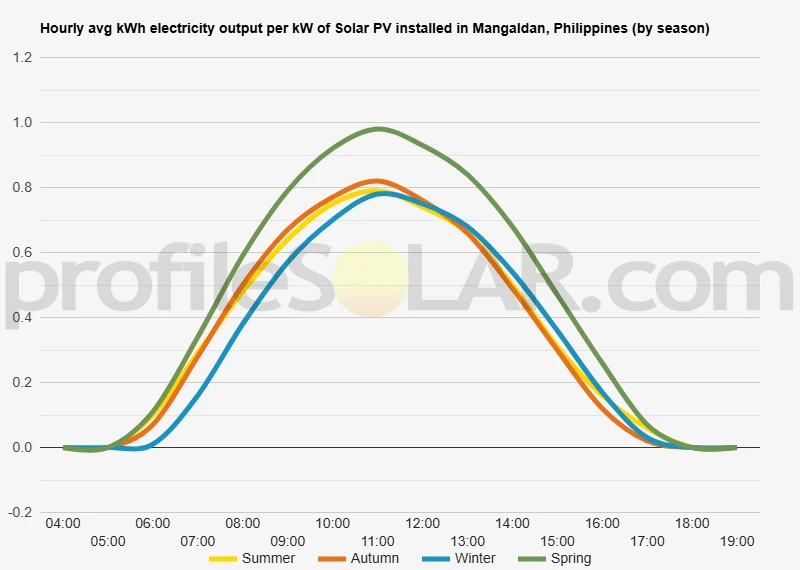

Solar output per kW of installed solar PV by season in Mangaldan

Seasonal solar PV output for Latitude: 16.0752, Longitude: 120.4027 (Mangaldan, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 15° South in Mangaldan, Philippines

To maximize your solar PV system's energy output in Mangaldan, Philippines (Lat/Long 16.0752, 120.4027) throughout the year, you should tilt your panels at an angle of 15° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mangaldan, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mangaldan, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 15° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
0° in Summer	22° South in Autumn	31° South in Winter	9° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mangaldan, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mangaldan, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mangaldan, Philippines

The topography around Mangaldan, Philippines, is characterized by a mix of flat lowlands and gently rolling terrain. Situated in the province of Pangasinan, this area is part of the expansive Central Luzon plains. The landscape is predominantly composed of agricultural fields, with rice paddies being a common sight. As you move away from the town center, the terrain gradually transitions into slightly elevated areas with subtle hills and slopes. To the west of Mangaldan, the land remains relatively flat as it approaches the Lingayen Gulf. This coastal plain is dotted with fish ponds and mangrove forests near the shoreline. Moving eastward, the terrain becomes more varied, with occasional low hills and small valleys created by the numerous rivers and streams that crisscross the region.

Suitable Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Mangaldan, several factors come into play. The most suitable areas would be those that offer ample flat or gently sloping land, minimal shading, and good access to existing infrastructure. The expansive agricultural lands surrounding Mangaldan present promising opportunities for solar PV development. These areas often feature large, open spaces with little to no obstruction from tall structures or trees. The flat terrain of the rice fields, in particular, could be ideal for solar panel installation, as it would require minimal land preparation and allow for efficient layout of the arrays. Areas to the east of Mangaldan, where the terrain becomes slightly more elevated, might also be suitable for solar PV projects. These locations could potentially benefit from improved exposure to sunlight throughout the day due to their elevated position. However, care would need to be taken to avoid areas with steeper slopes or those prone to landslides during heavy rains. It's important to note that while the region around Mangaldan offers favorable topography for solar PV, any large-scale installation would need to carefully consider the impact on local agriculture and food production. Ideally, solar projects would be developed on marginal lands or in ways that allow for dual-use with farming activities. Additionally, proximity to existing electrical infrastructure and transmission lines would be a crucial factor in determining the most suitable locations. Areas closer to major roads and power distribution networks would likely be more cost-effective for large-scale solar PV development.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
