Nabas, Western Visayas, Philippines, located in the tropics at 11.8371°N, 122.0839°E, offers a promising environment for solar PV energy generation throughout the year. The consistent sunlight typical of tropical regions, characterized more by wet and dry seasons than traditional four-season cycles, provides a stable foundation for solar power production.

Seasonal Solar Output

The solar energy potential in Nabas varies across meteorological seasons, with spring showing the highest output at 6.13 kWh/day per kW installed. Summer follows with 5.49 kWh/day, then autumn with 4.84 kWh/day, and winter with the lowest output at 4.22 kWh/day. This pattern indicates that while solar generation is viable year-round, there are optimal periods for energy production.

Ideal Generation Periods

The most favorable time for solar energy generation in Nabas is during the spring months, followed closely by summer. These seasons offer extended daylight hours and typically clearer skies, maximizing solar panel efficiency. However, the relatively small variation between seasons suggests that solar PV systems can operate effectively throughout the year.

Panel Tilt Optimization

For fixed panel installations in Nabas, Western Visayas, the ideal tilt angle to maximize year-round solar production is 10 degrees South. This angle has been calculated to optimize exposure to the sun's rays across all seasons, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental Considerations

While Nabas presents favorable conditions for solar energy, there are some environmental factors to consider:

• Tropical storms and typhoons: The Philippines is prone to these weather events, which can potentially damage solar installations.
• High humidity: The tropical climate can lead to accelerated wear on solar equipment.

To mitigate these risks, preventative measures should be implemented. These include using corrosion-resistant materials, ensuring robust mounting systems that can withstand high winds, and regular maintenance to address any humidity-related issues. Additionally, incorporating a monitoring system can help detect and address any performance issues promptly.

Overall, Nabas offers a highly suitable location for solar PV energy generation, with consistent year-round potential and manageable environmental challenges that can be effectively addressed through proper planning and installation techniques.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

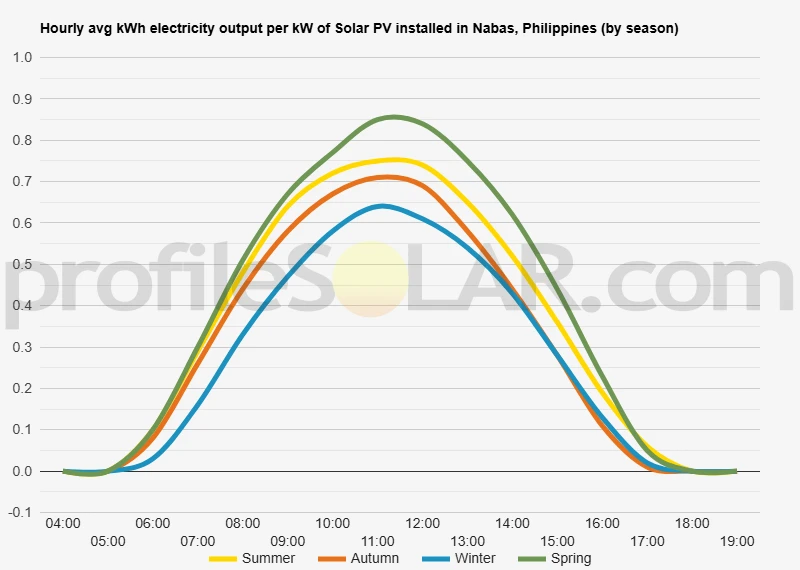

Solar output per kW of installed solar PV by season in Nabas

Seasonal solar PV output for Latitude: 11.8371, Longitude: 122.0839 (Nabas, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Nabas, Philippines

To maximize your solar PV system's energy output in Nabas, Philippines (Lat/Long 11.8371, 122.0839) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nabas, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nabas, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	18° South in Autumn	27° South in Winter	5° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nabas, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nabas, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nabas, Philippines

The topography around Nabas, Philippines, located at 11.8371° N latitude and 122.0839° E longitude, is characterized by a diverse landscape that includes both coastal and inland features. Situated on the northwestern coast of Panay Island, Nabas is part of the Aklan province and boasts a varied terrain that transitions from sea level to rolling hills and mountains as one moves inland. Along the coastline, Nabas features stretches of sandy beaches and low-lying areas that gradually rise into gentle slopes. These coastal plains are relatively flat and offer easy access to the Sibuyan Sea. As you move away from the shore, the landscape becomes more undulating, with small hills and valleys dotting the countryside. This area is predominantly rural, with a mix of agricultural land, coconut groves, and patches of tropical vegetation. Further inland, the terrain becomes more pronounced, with steeper hills and mountain ranges forming part of the central highlands of Panay Island. These elevated areas are often covered in lush forests and serve as important watersheds for the region. The highest points in the vicinity can reach several hundred meters above sea level, creating a picturesque backdrop to the coastal settlements.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations for solar farms would be: 1. The coastal plains and gently sloping areas near Nabas offer promising potential for solar PV development. These relatively flat expanses provide ample space for large arrays of solar panels and are easily accessible for construction and maintenance. The proximity to the coast ensures minimal shading from geographical features, maximizing sunlight exposure throughout the day. 2. Agricultural lands that are less productive or fallow could be repurposed for solar energy generation. These areas are often already cleared and have existing road access, reducing the environmental impact and cost of setting up solar installations. 3. The lower slopes of hills, particularly those facing south or west, could be suitable for solar farms. These locations benefit from good sun exposure and may have less valuable agricultural potential due to their gradient. It's important to note that while the mountainous regions inland receive ample sunlight, their steep terrain and forested nature make them less practical for large-scale solar developments. The costs and environmental impact of clearing such areas would likely outweigh the benefits. Any large-scale solar PV project in the region would need to carefully consider environmental factors, local land use regulations, and the impact on communities. The abundant sunshine in this tropical location, combined with the varied topography, presents numerous opportunities for solar energy development, provided it is implemented sustainably and in harmony with the local ecosystem and community needs.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
