Pagadian, Zamboanga Peninsula, Philippines, located in the Tropics, is a very good location for generating solar energy all year round due to its consistent sunlight throughout most of the year. The amount of electricity that can be generated from each kilowatt (kW) of installed solar varies slightly by season: it's highest in Spring and Summer with 6.30 and 6.08 kilowatt-hours (kWh) per day respectively, and slightly less in Autumn and Winter with 5.79 and 5.34 kWh/day respectively.

This means you can expect to generate a decent amount of electricity from solar panels at any time during the year, but slightly more during Spring and Summer months when there's typically more sunlight available.

If you're installing fixed panel solar systems here, tilting them at an angle of 7 degrees South will help maximize their total yearly production since this orientation helps capture as much sunlight as possible over the course of each day.

However, like any location, there are some local factors that could potentially hinder solar production in Pagadian:

1) Rainy Season: In tropical regions like Pagadian which have wet seasons characterized by heavy rainfall or monsoons may reduce sunshine hours thus affecting power output.
Preventative Measure: While we cannot control weather patterns or increase sunshine hours during rainy seasons; using high-quality panels known for excellent performance even under low light conditions might help mitigate some loss.

2) Dust & Dirt Accumulation: Over time dust particles might accumulate on the surface of your panels decreasing their efficiency.
Preventative Measure: Regular cleaning/maintenance schedule ensures your panels perform optimally by removing any dirt or debris that might block incoming sunlight.

3) Shade Issues: Nearby buildings or trees may cast shadows on your panel reducing its effectiveness.
Preventive Measures: During installation ensure no objects obstruct direct sun rays onto your panels; if not possible consider using micro-inverters instead of a central inverter as they help maximize output even from partially shaded panels.

In summary, Pagadian is an excellent location for solar energy production year-round with minor seasonal variations. However, one must take into account local weather conditions and ensure regular maintenance to optimize power generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

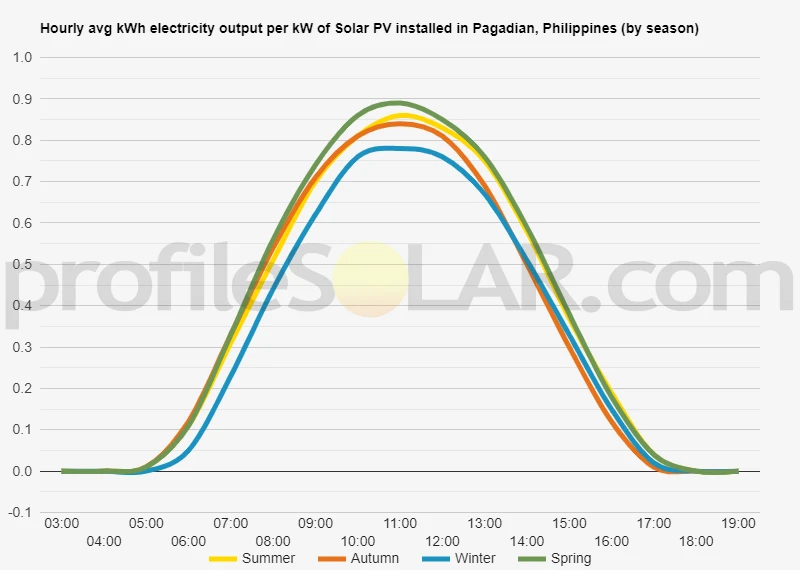

Solar output per kW of installed solar PV by season in Pagadian

Seasonal solar PV output for Latitude: 7.8071, Longitude: 123.2777 (Pagadian, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 6.08kWh/day in Summer.

Average 5.79kWh/day in Autumn.

Average 5.34kWh/day in Winter.

Average 6.30kWh/day in Spring.

Ideally tilt fixed solar panels 7° South in Pagadian, Philippines

To maximize your solar PV system's energy output in Pagadian, Philippines (Lat/Long 7.8071, 123.2777) throughout the year, you should tilt your panels at an angle of 7° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 7.8071, Longitude: 123.2777, the ideal angle to tilt panels is 7° South

Seasonally adjusted solar panel tilt angles for Pagadian, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pagadian, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pagadian, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pagadian, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pagadian, Philippines

Pagadian, located in the Zamboanga Peninsula of the Philippines, is characterized by diverse topography. The city itself is largely flat with gentle rolling terrain and stretches of plains. However, it is surrounded by mountain ranges to the north and east, including Mount Palpalan, Mount Sugarloaf, and Mount Pinukis.

The coastal areas to the west are relatively flat as well but are often used for agriculture or residential purposes. Furthermore, they might not be suitable for large-scale solar PV due to potential issues with saltwater corrosion.

For large-scale solar PV installations, open areas with little to no shading throughout the day would be ideal. Given this requirement:

1) Flatlands: The plains surrounding Pagadian City could potentially be good locations if they aren't already being utilized for agricultural or other purposes.

2) Mountainous Areas: While these regions typically have less human activity which could facilitate installation of a solar farm without disrupting existing land use patterns; however, their steep slopes may present challenges in terms of construction and maintenance.

3) Unused Land: Any unused lands around industrial zones can also serve as an excellent place for installing largescale solar PV systems.

It's important to note that any decision about where to install a large-scale solar system should also take into account factors like local climate conditions (amount of sun exposure), proximity to power grids (for easy transmission), environmental impact assessments (to ensure minimal harm to local ecosystems), land ownership status etc., before finalizing a location.

Lastly, it's recommended that professional site surveys are conducted prior making decisions on specific sites for such projects.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
