Pagsanjan, Calabarzon, Philippines, situated at 14.2747° N, 121.4571° E, offers a promising location for solar energy generation throughout the year. This tropical setting benefits from consistent sunlight, with seasons primarily characterized by wet and dry periods rather than temperature extremes.

Seasonal Solar Performance

The solar energy potential in Pagsanjan varies across meteorological seasons. Spring stands out as the most productive period, with an impressive 6.21 kWh per day for each kilowatt of installed solar capacity. Summer follows with 5.20 kWh/day, while autumn and winter see slightly reduced outputs of 4.38 kWh/day and 3.93 kWh/day, respectively. These figures indicate that Pagsanjan maintains a strong solar potential year-round, with only moderate fluctuations between seasons. The location's proximity to the equator ensures a relatively stable solar resource, making it an attractive site for solar PV installations.

Optimal Panel Tilt

For fixed solar panel installations in Pagsanjan, Calabarzon, the ideal tilt angle to maximize year-round energy production is 12 degrees facing South. This angle has been calculated considering the location's latitude, daily solar elevation angles, and weighted by NASA's solar irradiance data to account for Earth's elliptical orbit.

Environmental Considerations

While Pagsanjan's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. Rainfall: The Philippines experiences a monsoon season, which could potentially reduce solar output during periods of heavy cloud cover and rain. 2. Typhoons: The country is prone to tropical cyclones, which could pose a risk to solar installations. To mitigate these challenges, several preventative measures can be implemented:

Preventative Measures

1. Use robust mounting systems designed to withstand high winds. 2. Install water-resistant solar panels and weatherproof electrical components. 3. Implement a regular cleaning schedule to remove dust and debris, especially after storms. 4. Consider adding a backup energy storage system to ensure power availability during extended periods of low solar production. By taking these precautions, solar installations in Pagsanjan can maximize their energy production potential and resilience against local weather conditions. Overall, the location presents a favorable environment for year-round solar energy generation, with spring and summer offering peak performance opportunities.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 268 locations across Philippines. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Philippines by location

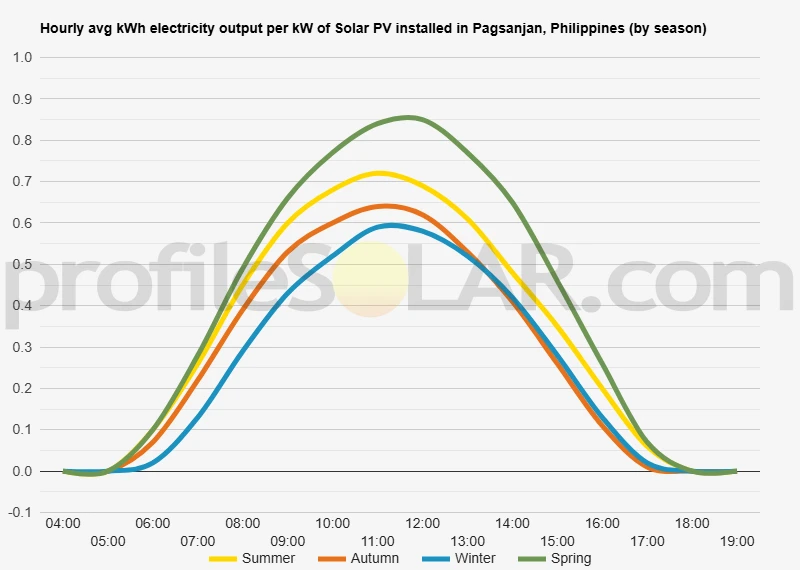

Solar output per kW of installed solar PV by season in Pagsanjan

Seasonal solar PV output for Latitude: 14.2747, Longitude: 121.4571 (Pagsanjan, Philippines), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° South in Pagsanjan, Philippines

To maximize your solar PV system's energy output in Pagsanjan, Philippines (Lat/Long 14.2747, 121.4571) throughout the year, you should tilt your panels at an angle of 12° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pagsanjan, Philippines

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pagsanjan, Philippines. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	20° South in Autumn	29° South in Winter	7° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pagsanjan, Philippines

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pagsanjan, Philippines.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pagsanjan, Philippines

The topography around Pagsanjan, Philippines, is characterized by a diverse landscape that reflects the region's geological history and natural features. Situated in the province of Laguna, Pagsanjan is nestled in a valley surrounded by rolling hills and mountains. The area is known for its lush vegetation and tropical climate, which contribute to its scenic beauty. To the north and east of Pagsanjan, the terrain gradually rises into the foothills of the Sierra Madre mountain range. These mountains form a natural barrier and contribute to the region's abundant rainfall. The slopes of these hills are often covered in dense tropical forests, which play a crucial role in the local ecosystem. To the south and west, the land becomes flatter as it approaches Laguna de Bay, the largest lake in the Philippines. This transition creates a mix of gently sloping terrain and low-lying areas, some of which are used for agriculture. The famous Pagsanjan River, known for its rapids and falls, cuts through the landscape, carving out gorges and creating dramatic scenery.

Potential for Large-scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would have ample sunlight exposure, relatively flat terrain, and minimal environmental impact. The lowland areas to the south and west of Pagsanjan, particularly those closer to Laguna de Bay, present promising opportunities for solar PV development. These regions tend to have more open, flat spaces that could accommodate large arrays of solar panels. The reduced tree cover in these areas also means less shading, which is crucial for optimal solar energy production. Some of the gently sloping hillsides surrounding Pagsanjan might also be suitable for solar farms, provided they face the right direction to maximize sun exposure. South-facing slopes would be particularly advantageous in the northern hemisphere. However, it's important to note that any large-scale solar development would need to carefully consider environmental impacts, especially given the region's rich biodiversity. Areas of dense forest or those prone to flooding should be avoided. Additionally, agricultural lands that are crucial for local food production may not be ideal candidates for solar conversion. Ultimately, a detailed site survey and environmental impact assessment would be necessary to pinpoint the most suitable locations for large-scale solar PV installations in the vicinity of Pagsanjan. This would ensure that renewable energy development can proceed in harmony with the local ecosystem and community needs.

Philippines solar PV Stats as a country

Philippines ranks 40th in the world for cumulative solar PV capacity, with 1,370 total MW's of solar PV installed. Each year Philippines is generating 13 Watts from solar PV per capita (Philippines ranks 71st in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Philippines?

Yes, there are several incentives for businesses wanting to install solar energy in the Philippines. These include:

1. The Feed-in Tariff (FiT) program, which provides a guaranteed rate of return on investments in renewable energy projects;

2. Tax credits and exemptions from certain taxes;

3. Net metering programs that allow businesses to sell excess electricity back to the grid;

4. Grants and loans from government agencies such as the Department of Energy and the Philippine Solar Power Alliance;

5. Technical assistance from organizations like USAID’s Clean Energy Program; and

6. Access to financing through banks, venture capital firms, or other sources of private capital.

Do you have more up to date information than this on incentives towards solar PV projects in Philippines? Please reach out to us and help us keep this information current. Thanks!
